Description:

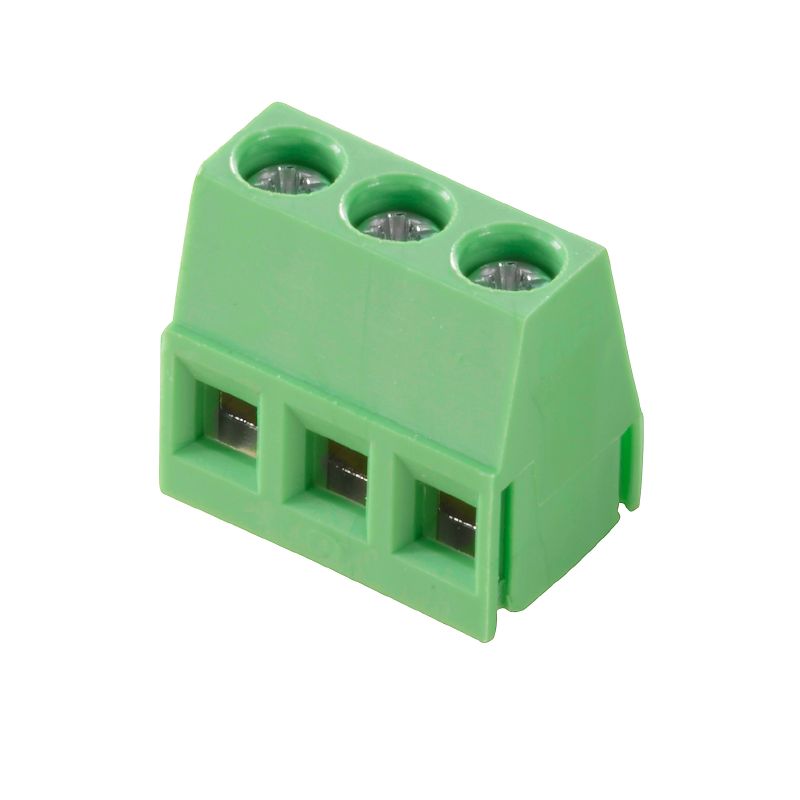

Introducing the TMS 500/04/90 30SN GN BX, a high-performance component designed for seamless electrical connections This product meets RoHS compliance standards and adheres to UL safety regulations, as verified by Certificate No E60693 It is expertly crafted for clamping yoke connections on printed circuit boards (PCBs) while utilizing through-hole (THT) soldering, ensuring conductors are positioned at a precise 90° angle.
Each box includes 150 units, with each piece weighing just 412 grams, making it an efficient option for your electronic projects.
Features and Benefits:
•Suitable for wire cross-sections from 0.2 mm² to 2.5 mm².
•Can accommodate AWG sizes from 30 to 12.
•Compliant with various environmental standards.
•Intended for usage with OMNIMATE basic products.

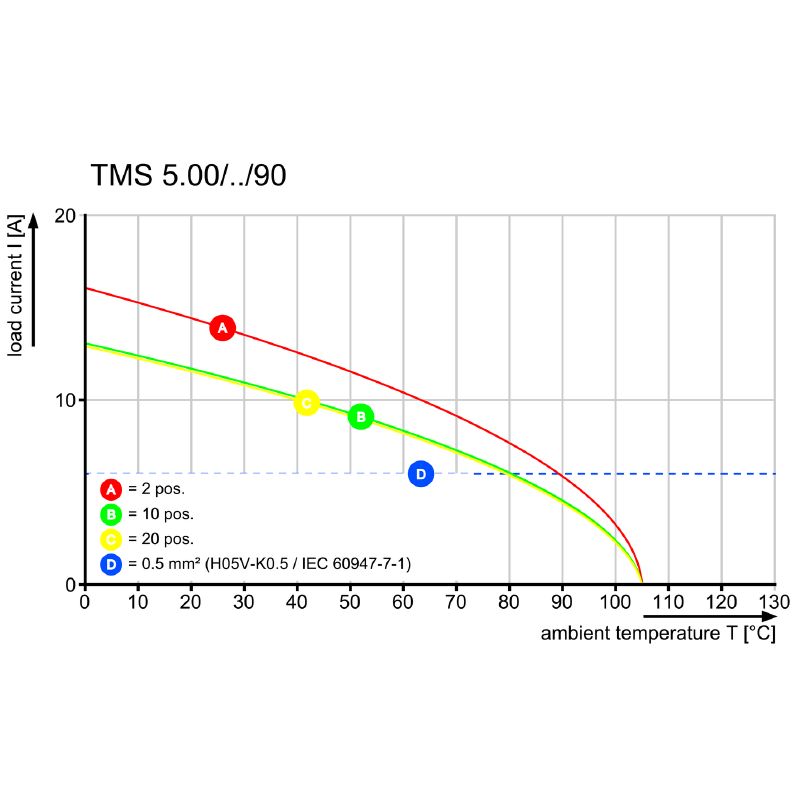

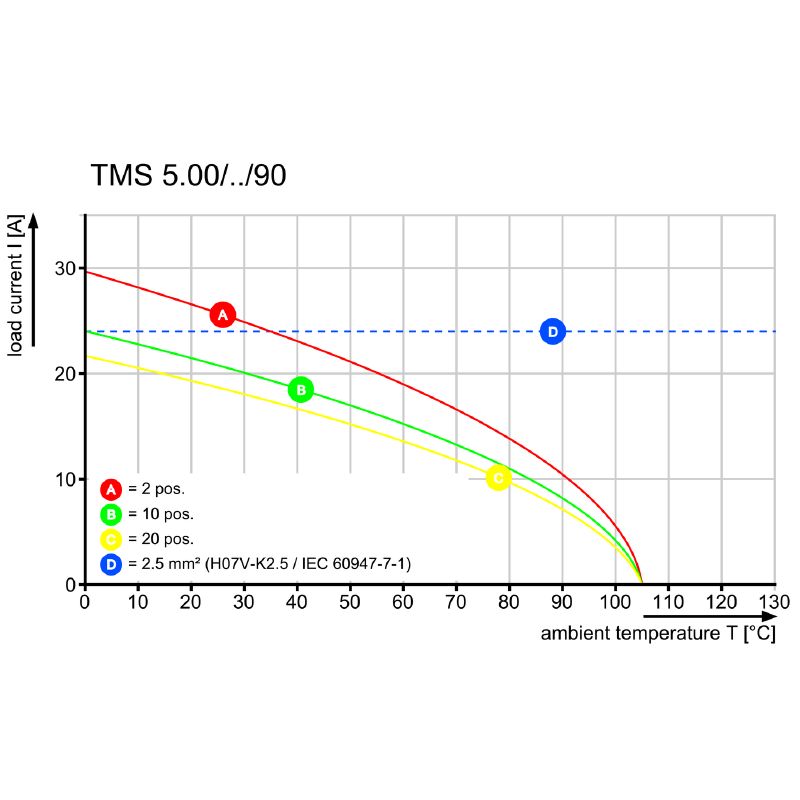

•Rated for operation at a maximum temperature of 105 °C.
Specifications:
| IEC Rated Voltage | 320 V |
| IEC Rated Current | 15 A |
| UL Rated Voltage | 300 V |
| UL Rated Current | 15 A |
| Number of Poles | 4 |

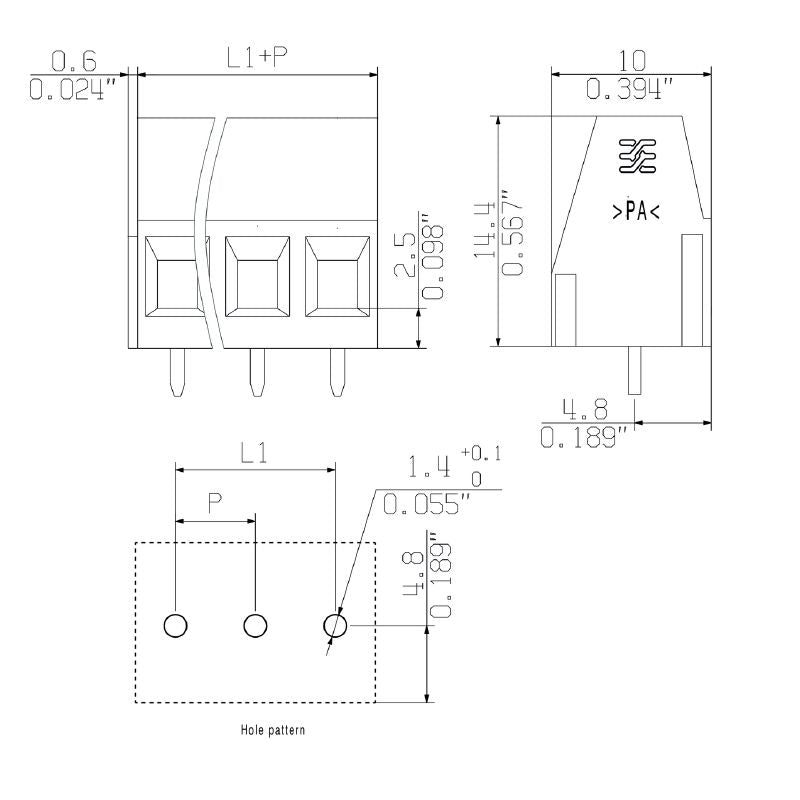

| Pitch | 5 mm |
| Solder Pin Length | 3 mm |
| Protection Degree | IP20 |
| Insulating Material | PA |
| Flammability Rating | V-0 |
| Tightening Torque (min) | 0.5 Nm |
| Tightening Torque (max) | 0.55 Nm |
| Storage Temperature Min | -40 °C |
| Storage Temperature Max | 70 °C |
