Description:

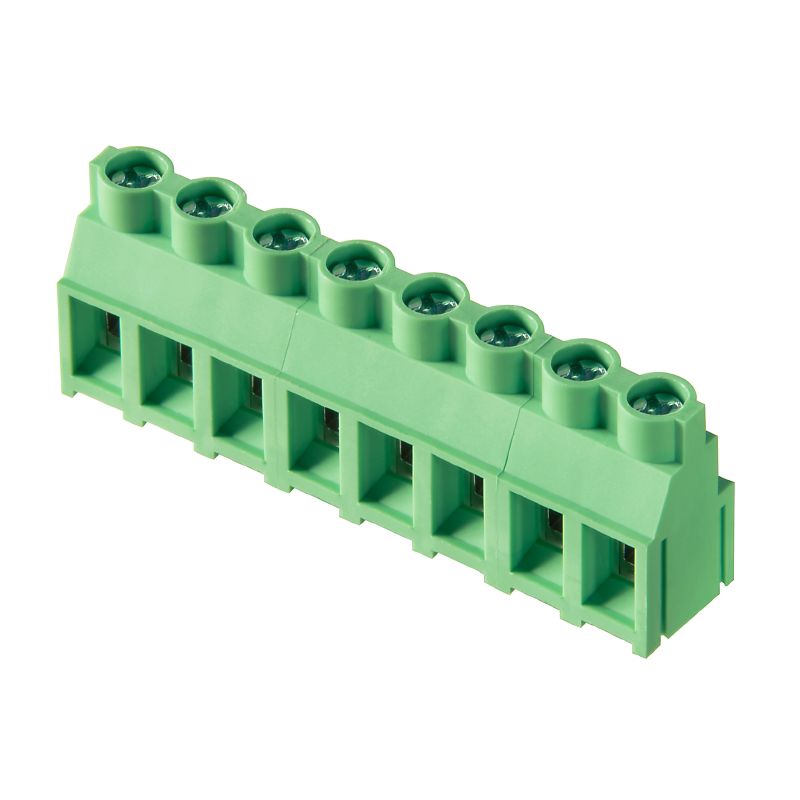

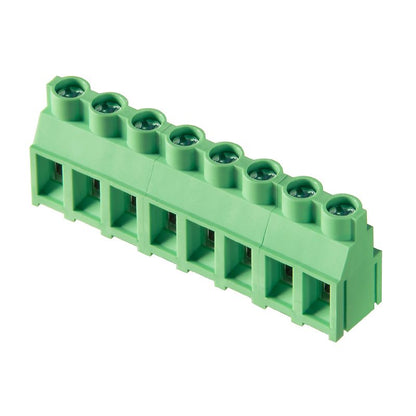

Introducing the TPS 762/08/90 50SN GN BX connection system, engineered for a wide range of applications This reliable unit meets key specifications, offering 1000 V at 32 A according to IEC standards and 300 V at 20 A per UL certification It is compatible with wire sizes ranging from 005 to 6 mm² and AWG 30 to AWG 10 Each package comes securely boxed and is backed by essential approvals, including RoHS and UL certifications, ensuring safety and performance for your projects.
Features and Benefits:
•Clamping yoke connection for reliable attachment.
•Designed for through-hole (THT) solder connections.
•90° conductor outlet direction.
Specifications:

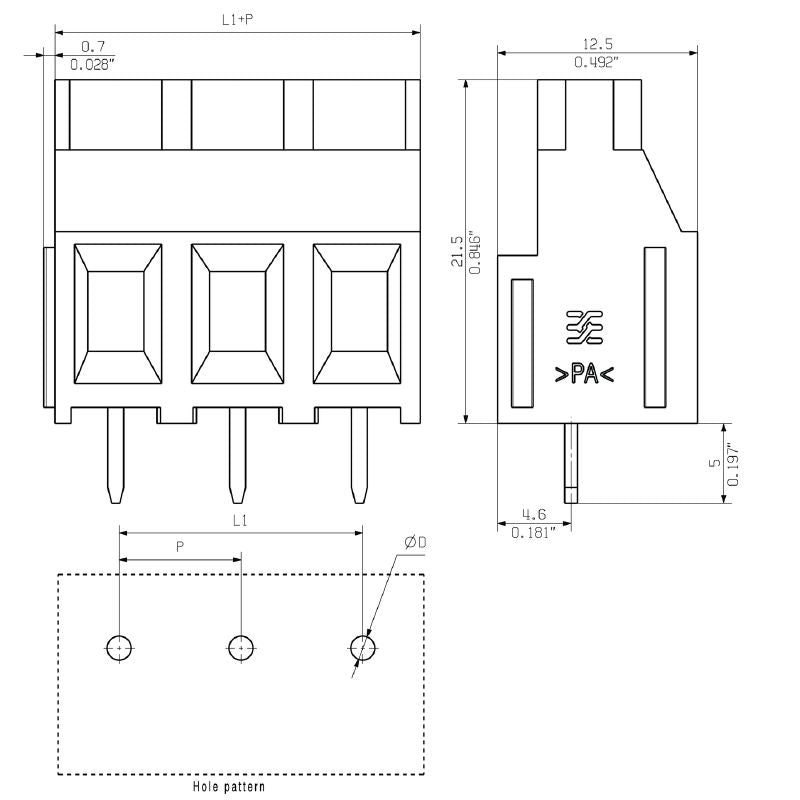

| Pitch in mm (P) | 7.62 mm |
| Number of poles | 8 |
| Mounting onto the PCB | THT solder connection |
| Solder pin length (l) | 5 mm |
| Insulating material | PA |
| UL 94 flammability rating | V-0 |
| Rated voltage (IEC) | 1000 V |

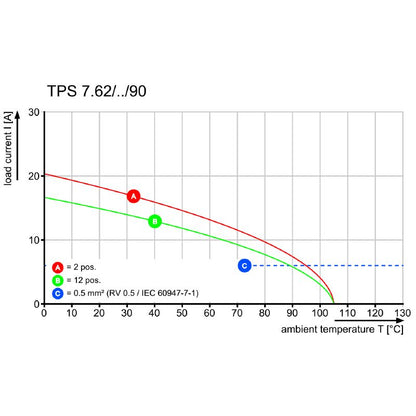

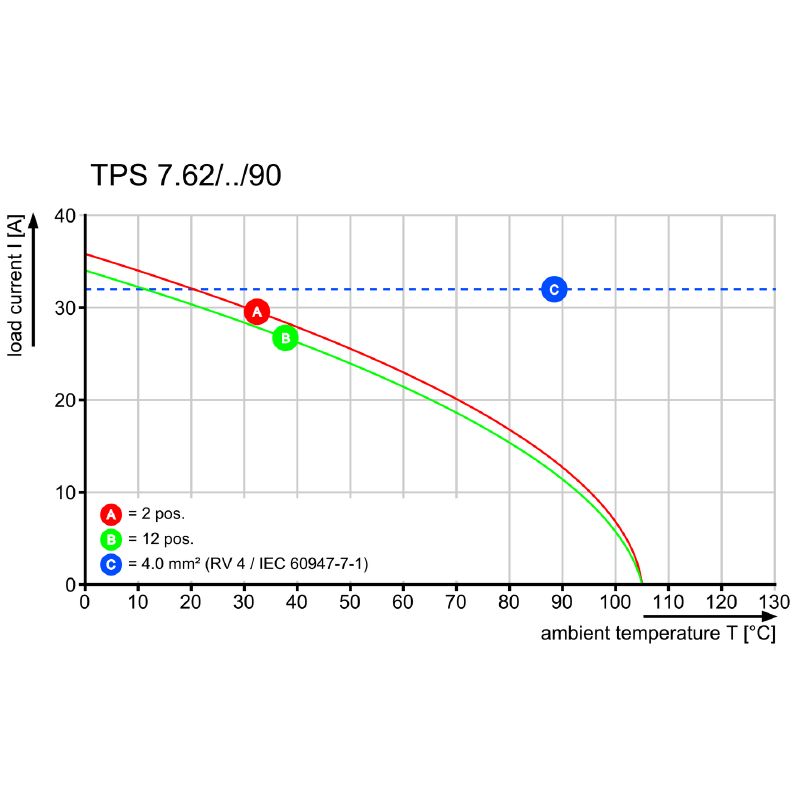

| Rated current (IEC) | 32 A |
| Rated voltage (UL) | 300 V |
| Rated current (UL) | 20 A |
| Net weight | 22.7 g |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 70 °C |
| Operating temperature, min. | -40 °C |
| Operating temperature, max. | 105 °C |
