2651960000 - 5.08mm Terminal Block for AWG 30-12, 20A Rated (Pack of 96)
2651960000 - 5.08mm Terminal Block for AWG 30-12, 20A Rated (Pack of 96)
SKU: SKU: 2651960000 Download PDF
- 2651960000 - 5.08mm Terminal Block for AWG 30-12, 20A Rated (Pack of 96)
- 2651960000 - 5.08mm Terminal Block for AWG 30-12, 20A Rated (Pack of 96)
Couldn't load pickup availability
Description:

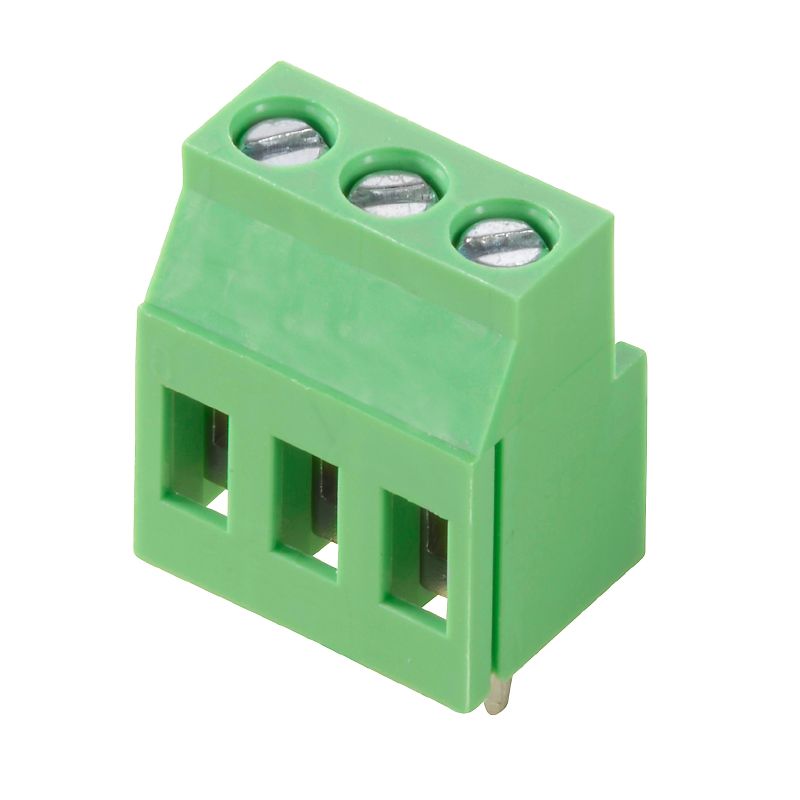

Introducing the TPS 508/08/90 50SN GN BX, a dependable solution featuring a robust clamping yoke connection alongside a comprehensive terminal block It accommodates a diverse range of wire sizes, from AWG 30 to AWG 12, making it suitable for both solid and flexible wires Engineered for THT solder connections, this terminal block operates at a maximum temperature of 105 °C and supports electrical ratings up to 20 A at 320 V.
With a compact pitch of 508 mm, this product meets UL and RoHS certification standards, ensuring reliability and safety for your electrical needs.
Features and Benefits:
•Compliant with UL 1059 standards.
•IP20 protection degree.
•Made from high-quality PA insulating material.
•Low flammability with a UL 94 rating of V-0.
•Suitable for long-term storage under specified conditions.
•Used in various electrical and electronic applications requiring robust wire connections.
Specifications:

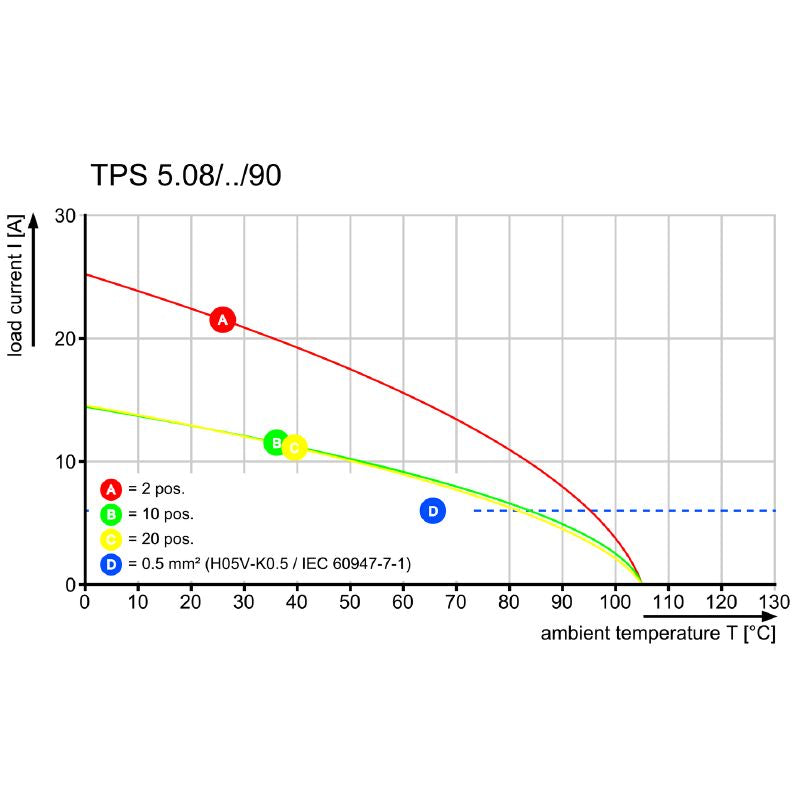

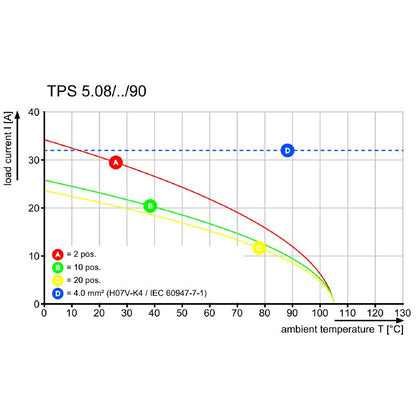

| Rated current | 20 A |
| Rated voltage (Use group B / UL 1059) | 300 V |
| Rated voltage (Use group D / UL 1059) | 300 V |
| Wire connection method | Clamping yoke connection |
| Conductor outlet direction | 90° |
| Number of poles | 8 |

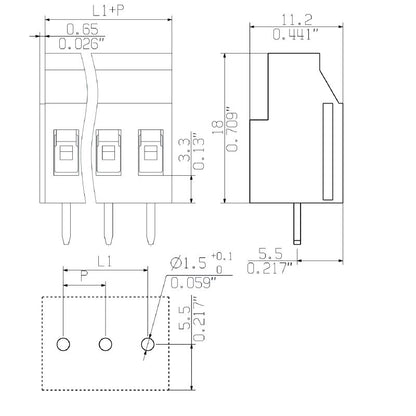

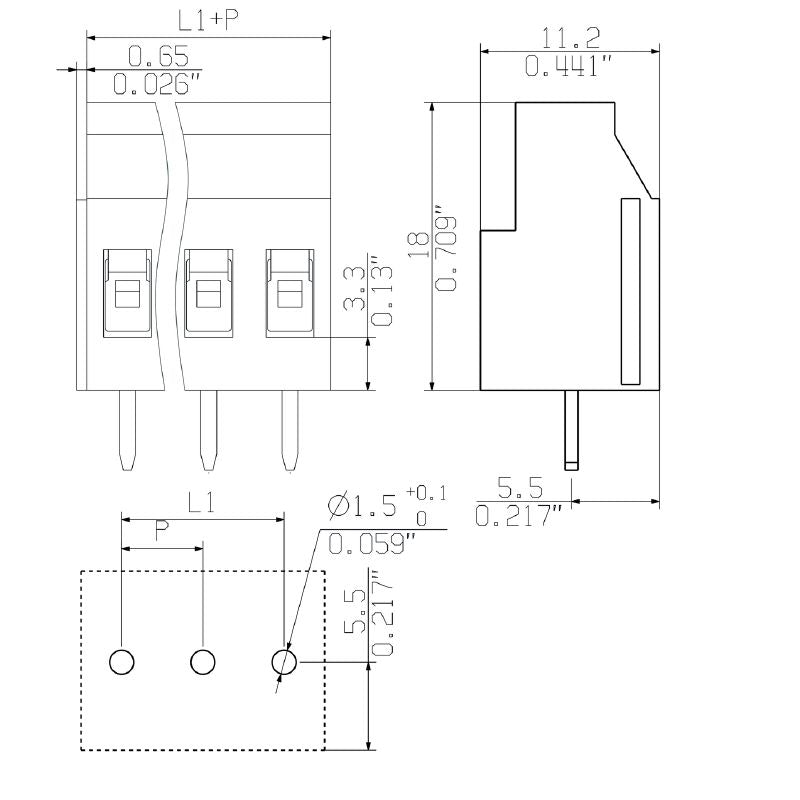

| Pitch | 5.08 mm |
| Net weight | 15.6 g |
| Operating temperature max | 105 °C |
| Solder pin length | 5 mm |
| Storage temperature min | -40 °C |
| Storage temperature max | 70 °C |
| Stripping length | 8.5 mm |
| Clamping range min | 0.2 mm² |
| Clamping range max | 4 mm² |
| Contact material | Copper alloy |
| Insulating material | PA |
| Color | Pale green |
