2651080000 - RoHS Compliant Terminal Block 15A, PCB Mountable (Pack of 64)

Description:

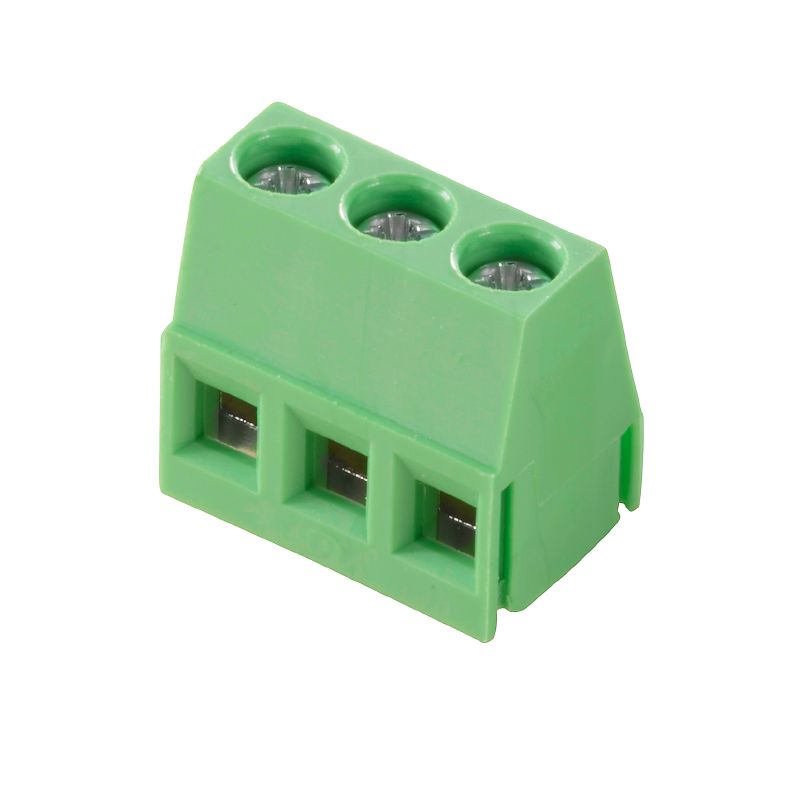

Introducing the TMS 500/15/90 30SN GN BX terminal block, your reliable solution for electrical connections with a focus on eco-friendliness This device is RoHS certified and comes with a UL recognition number, ensuring it meets stringent safety standards It features a clamping yoke for secure wire connection and can be easily mounted onto PCBs using a THT solder connection With a rated current capacity of 15 A and a voltage rating of 320 V as per IEC guidelines, it also holds UL ratings of 300 V.

This terminal block is designed with dimensions that facilitate straightforward installation and is conveniently packaged in a box for your convenience.

Features and Benefits:

•RoHS compliant with exemption.

•IP20 protection degree.

•Pale green color.

•Compatible with OMNIMATE basic products.

•Tightening torque between 0.5 Nm and 0.55 Nm.

Specifications:
