2651340000 - 5.08mm Pitch Connector, 15A, 90° Outlet, RoHS Compliant (Pack of 200)
2651340000 - 5.08mm Pitch Connector, 15A, 90° Outlet, RoHS Compliant (Pack of 200)
SKU: SKU: 2651340000 Download PDF
- 2651340000 - 5.08mm Pitch Connector, 15A, 90° Outlet, RoHS Compliant (Pack of 200)
- 2651340000 - 5.08mm Pitch Connector, 15A, 90° Outlet, RoHS Compliant (Pack of 200)
Couldn't load pickup availability
Description:

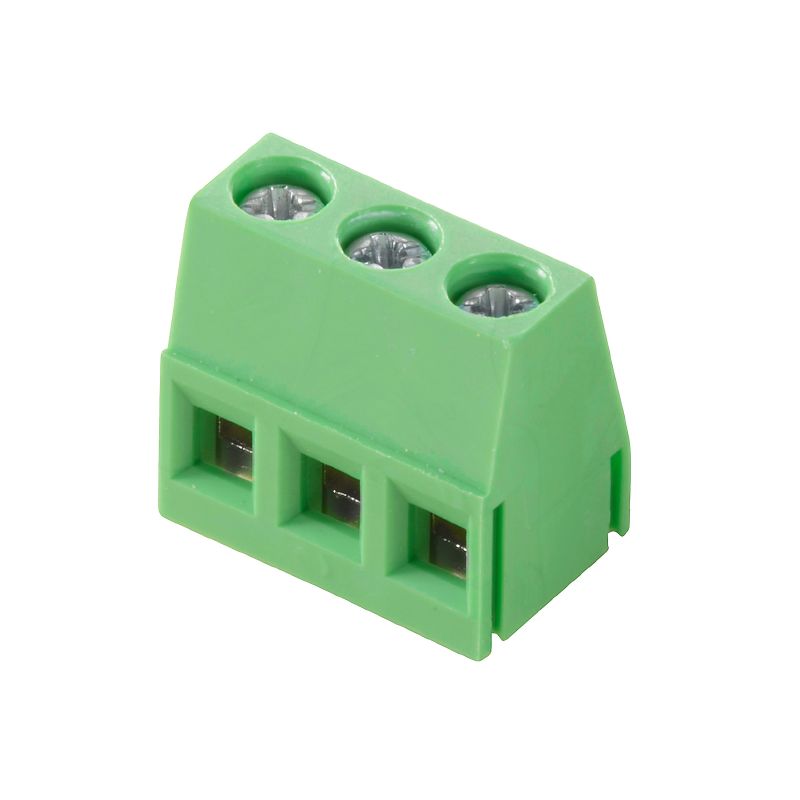

Introducing the TMS 508/03/90 30SN GN BX connector, engineered for a wide range of applications This robust connector operates at a voltage of 320 V and supports a current up to 15 A, accommodating wire sizes from 02 to 25 mm² Adhering to RoHS standards, it belongs to the reliable OMNIMATE basic series
Featuring a clamping yoke connection method, this connector offers a 90° conductor outlet for efficient connectivity.
It boasts a pitch of 508 mm and a solder pin length of 3 mm, ensuring compatibility in various setups Constructed with tinned copper alloy contacts, this device promises longevity and durability Furthermore, it is designed for optimal performance across a wide temperature range, making it suitable for both operational use and storage.
Features and Benefits:
•IP20 protection degree.
•Compliant with RoHS and incorporates exemption.
•Made from PA insulating material.
•Has a UL 94 flammability rating of V-0.
•Compatible only with OMNIMATE basic products.
Specifications:
| Rated current | 15 A |
| Rated voltage | 300 V |
| Pitch in mm | 5.08 mm |
| Number of poles | 3 |
| Tightening torque, min | 0.5 Nm |
| Tightening torque, max | 0.55 Nm |
| Storage temperature, min | -40 °C |
| Storage temperature, max | 70 °C |
| Operating temperature, max | 105 °C |
| Clamping range, min | 0.2 mm² |
| Clamping range, max | 2.5 mm² |

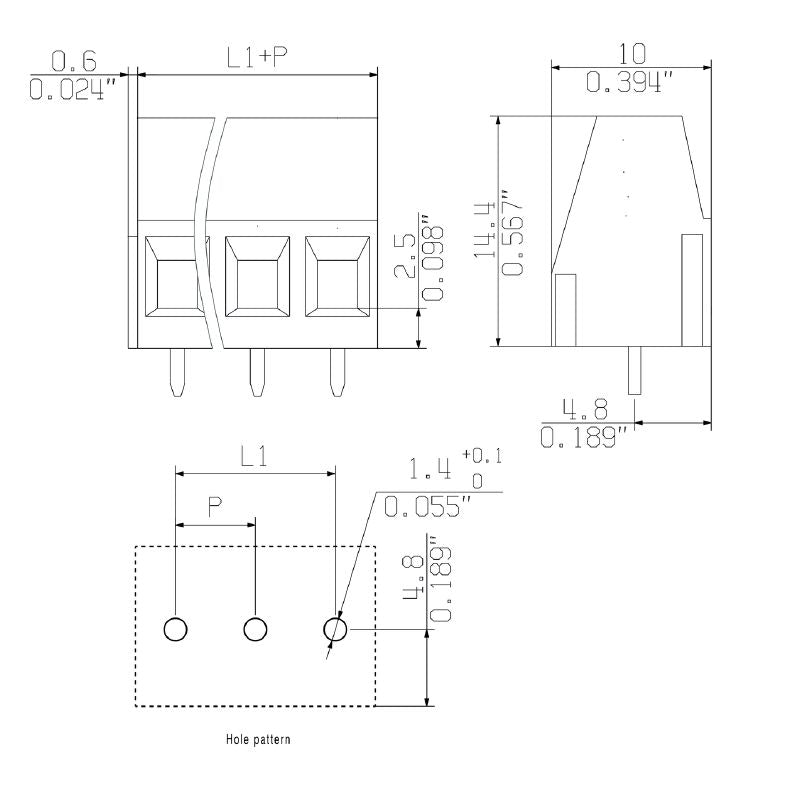

| Solder pin dimensions | 0.7 x 0.9 mm |
| Number of solder pins per pole | 1 |
