Description:

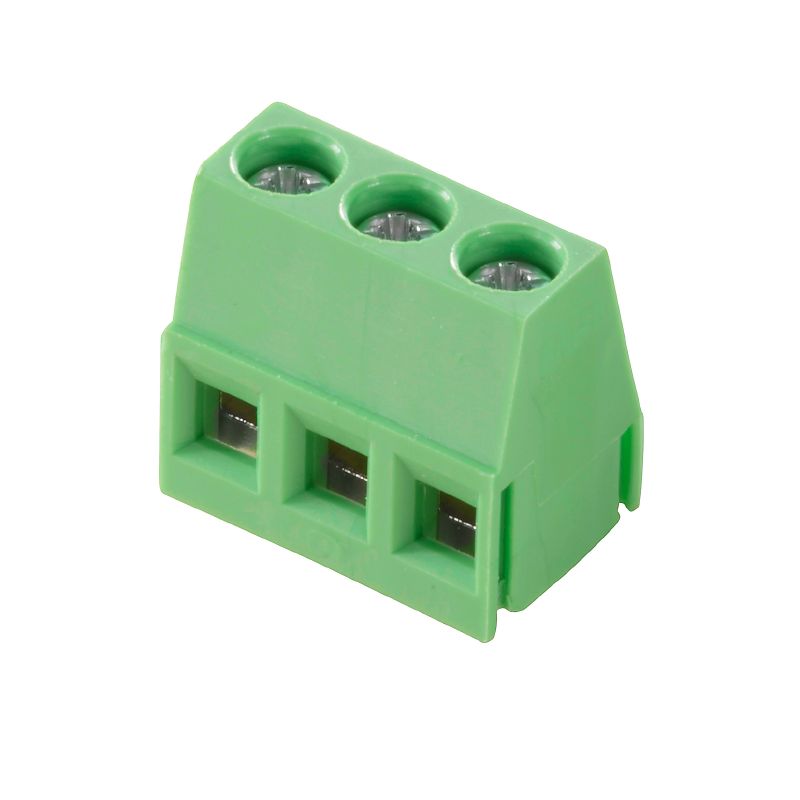

Introducing the TMS 500/08/90 30SN GN BX, a top-notch component that complies with RoHS standards and adheres to UL specifications This model features a wire connection coupled with a sturdy clamping yoke, specifically created for THT solder connections on printed circuit boards (PCBs) and boasts a 90° conductor outlet for enhanced versatility Part of the OMNIMATE basic product line, it comes conveniently packaged in a box, making it a reliable choice for your electronic assembly needs.
Features and Benefits:
•Compliant with RoHS and UL standards.
•Designed for THT solder connections.
•Compatible only with OMNIMATE basic products.
Specifications:
| Rated Voltage (IEC) | 320 V |
| Rated Current (IEC) | 15 A |
| Conductor Outlet Direction | 90° |
| Number of Poles | 8 |
| Pitch | 5 mm |
| Protection Degree | IP20 |
| Insulating Material | PA |
| Colour | Pale green |
| Solder Pin Length | 3 mm |
| Clamping Range | 0.2 - 2.5 mm² |
| UL Voltage Rating | 300 V |
| Rated Current (UL) | 15 A |
| Storage Temperature | -40 °C to 70 °C |
| Operating Temperature | Max. 105 °C |
