2651990000 - 11-Pole 90° PCB Clamp Connection in Pale Green (Pack of 64)
2651990000 - 11-Pole 90° PCB Clamp Connection in Pale Green (Pack of 64)
SKU: SKU: 2651990000 Download PDF
- 2651990000 - 11-Pole 90° PCB Clamp Connection in Pale Green (Pack of 64)
- 2651990000 - 11-Pole 90° PCB Clamp Connection in Pale Green (Pack of 64)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the TPS 508/11/90 50SN GN BX, a robust component that meets both RoHS and UL compliance standards Engineered with a clamping yoke connection and THT solder interface, it easily attaches to PCBs Part of the reliable OMNIMATE basic series, this component features an 11-pole configuration and a 90° conductor outlet direction Made from durable PA insulating material, it showcases a subtle pale green hue and weighs a lightweight 21.
45 g, making it an excellent choice for your electronic projects.
Features and Benefits:
•Compliant with RoHS and UL standards.
•Clamping yoke connection allows easy setup.
•Compact 90° conductor outlet direction.
•Lightweight at 21.45 g.
Specifications:
| IEC Rating | 320 V / 20 A / 0.05 - 4 mm² |
| UL Rating | 300 V / 15 A / AWG 30 - AWG 12 |

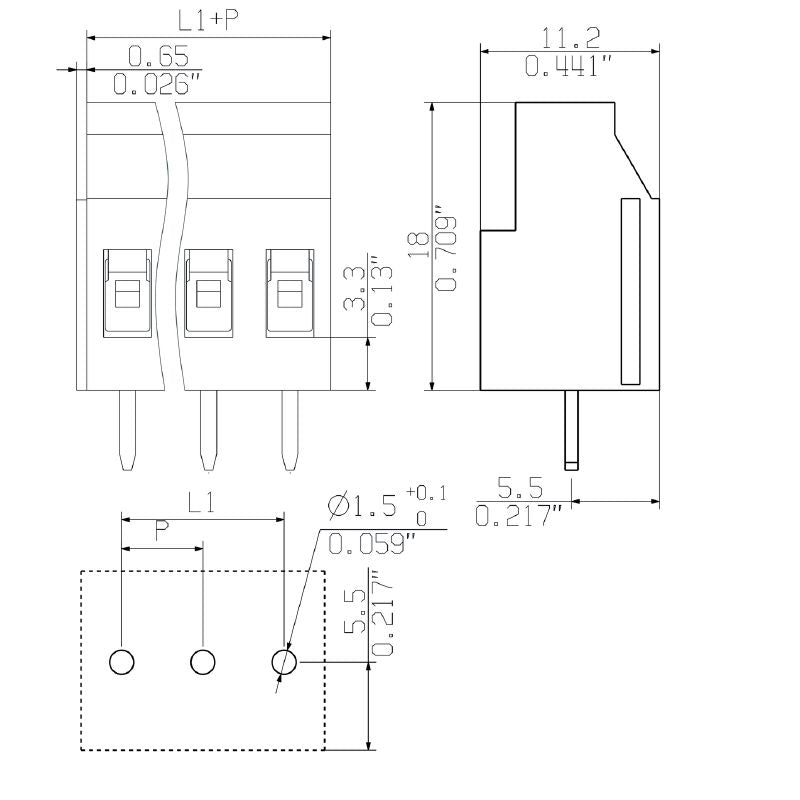

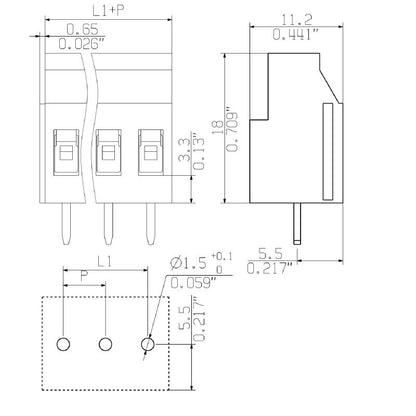

| Pitch | 5.08 mm |
| Number of poles | 11 |
| Solder pin length | 5 mm |
| Protection degree | IP20 |
| Insulating material | PA |
| UL 94 flammability rating | V-0 |
| Operating temperature max | 105 °C |
| Storage temperature min | -40 °C |
| Storage temperature max | 70 °C |
| Stripping length | 8.5 mm |
| Clamping range min | 0.2 mm² |
| Clamping range max | 4 mm² |
