2650560000 - 15-Pole 90° Clamping Yoke Connector with 3.81mm Pitch (Pack of 128)

Description:

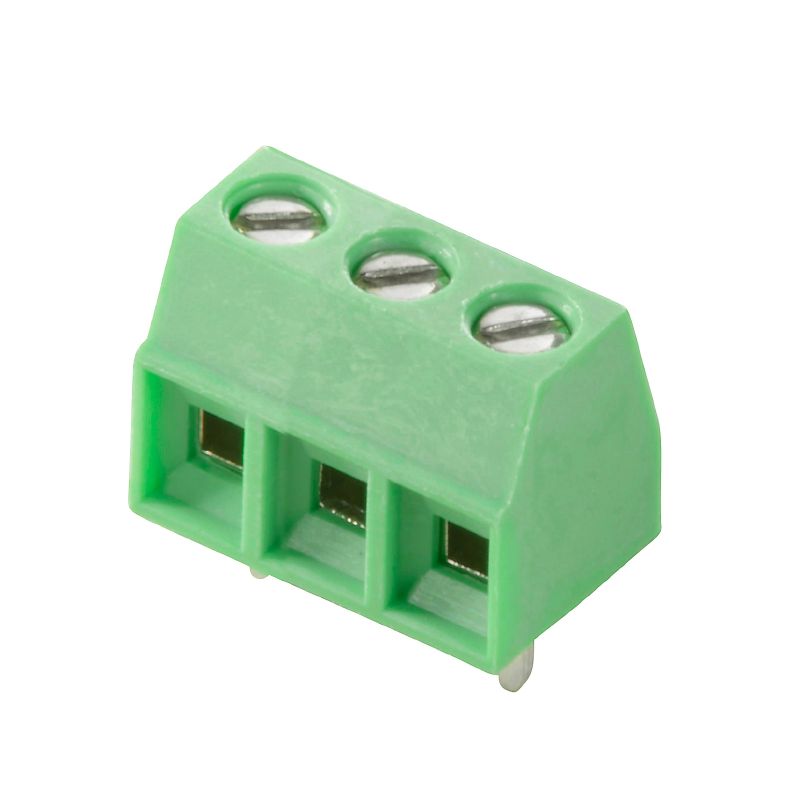

Introducing the TCS 381/15/90 35SN GN BX, a reliable and efficient connector from the OMNIMATE basic series Crafted to meet high standards, this product boasts ROHS compliance and UL certification, ensuring quality and safety Weighing just 69 grams and conveniently packaged in a box, it features a clamping yoke connection for secure wire attachments This connector is engineered for through-hole (THT) soldering onto PCBs, with a 90-degree conductor outlet for flexibility in your projects.

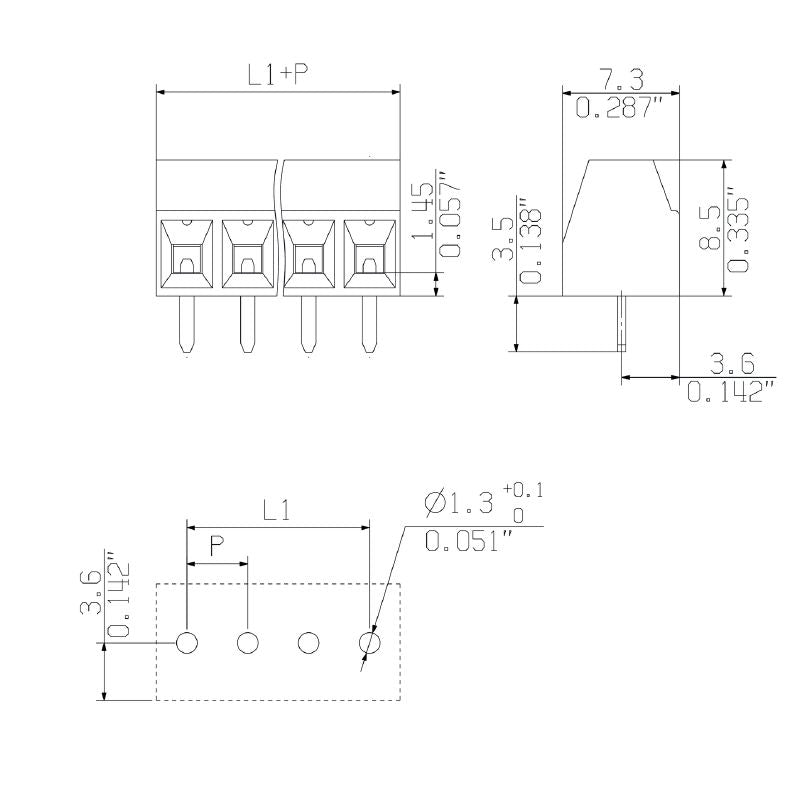

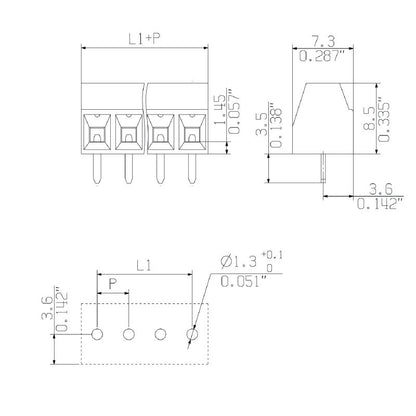

It accommodates 15 poles in a single row design, designed with a pitch of 381 mm (015 inches) and a solder pin length of 35 mm, with dimensions measuring 05 x 09 mm With an M2 clamping screw, this connector supports a minimum tightening torque of 02 Nm and a maximum of 023 Nm, ensuring a secure fit Furthermore, it’s constructed from environmentally friendly materials and can withstand operating temperatures of up to 105 °C, making it a robust choice for your electronic needs.

Features and Benefits:

•Including RoHS compliance with exemptions.

•Designed for easy mounting with THT solder connection.

•Clamping yoke connection method.

•Suitable for various wire cross-sections.

•Protected with IP20 degree.

•Made from PA insulating material.
