2650520000 - 11-Pole 3.81mm PCB Connector with 90° Outlet (Pack of 192)
2650520000 - 11-Pole 3.81mm PCB Connector with 90° Outlet (Pack of 192)
SKU: SKU: 2650520000 Download PDF
- 2650520000 - 11-Pole 3.81mm PCB Connector with 90° Outlet (Pack of 192)
- 2650520000 - 11-Pole 3.81mm PCB Connector with 90° Outlet (Pack of 192)
Couldn't load pickup availability
Description:

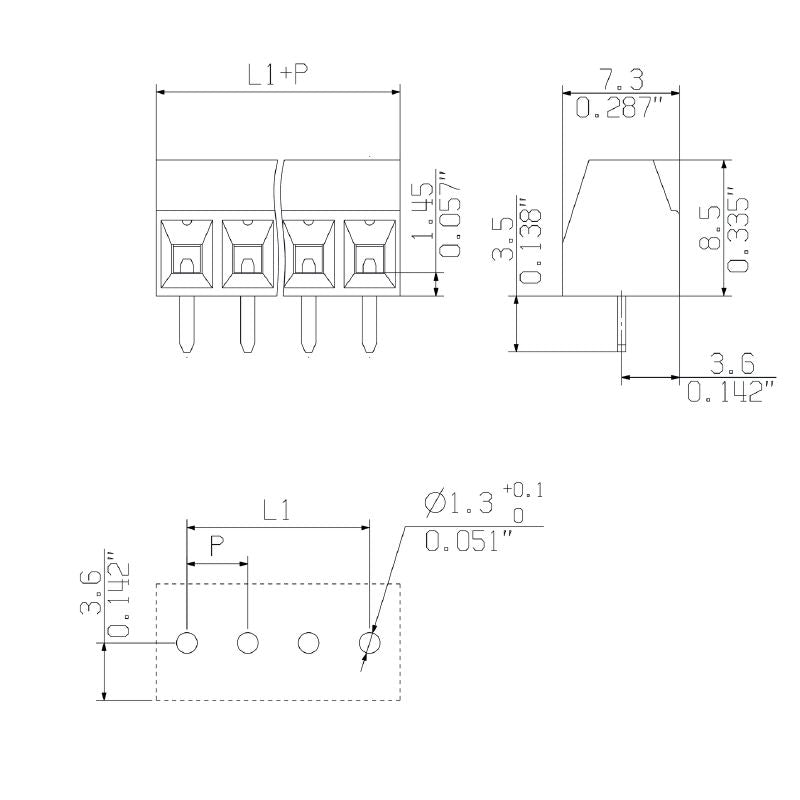

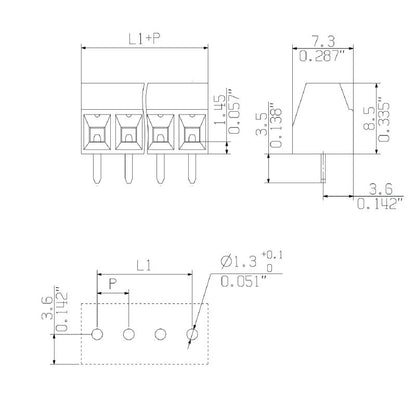

Introducing a versatile connector optimized for PCB mounting, featuring an efficient clamping yoke connection designed for Through-Hole Technology (THT) soldering This component boasts a 90° conductor outlet and a compact pitch of 381 mm, ensuring streamlined integration into your projects With a total of 11 poles, it is equipped with specific pin series quantities, and the dimensions of its solder pins are 3.
5 mm in length with a pin size of 05 x 09 mm Capable of withstanding temperatures from -40 °C to 105 °C, this connector is designed for robust performance under various conditions It meets RoHS compliance standards and has a weight of just 506 g, making it a reliable and environmentally friendly choice for your electronic assemblies.
Features and Benefits:
•Compliant with RoHS and UL standards.
•High-quality Cu-alloy contacts with a tinned surface.
•Designed for efficient clamping of wire with a minimum size of 0.2 mm² and a maximum of 1.5 mm².
Specifications:
| General Order Number | 2650520000 |
| IEC Rated Voltage | 320 V |
| IEC Rated Current | 10 A |
| UL Rated Voltage | 150 V |
| UL Rated Current | 10 A |
| Pitch | 3.81 mm |
| Clamping Torque (min) | 0.2 Nm |
| Clamping Torque (max) | 0.23 Nm |
| Protection Degree | IP20 |
| Storage Temperature | -40 °C to 70 °C |
| Wire Connection Cross Section (AWG min) | AWG 26 |
| Wire Connection Cross Section (AWG max) | AWG 16 |
