2651380000 - 15A Terminal Block, 320V, Wire Size 0.2-2.5 mm² (Pack of 120)
2651380000 - 15A Terminal Block, 320V, Wire Size 0.2-2.5 mm² (Pack of 120)
SKU: SKU: 2651380000 Download PDF
- 2651380000 - 15A Terminal Block, 320V, Wire Size 0.2-2.5 mm² (Pack of 120)
- 2651380000 - 15A Terminal Block, 320V, Wire Size 0.2-2.5 mm² (Pack of 120)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

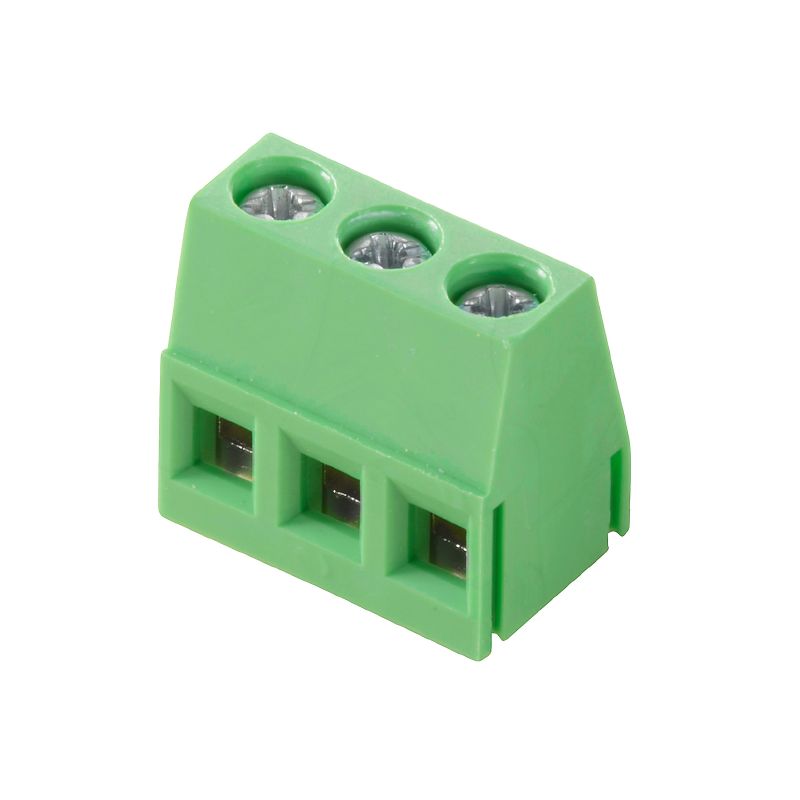

Introducing the TMS 508/07/90 30SN GN BX terminal block, engineered to meet IEC standards, operating at a voltage of 320V with a current capacity of 15A This robust component accommodates wire sizes ranging from 02 to 25 mm² and is UL certified for 300V, suitable for AWG wire sizes from 30 to 12 Each terminal block is packaged conveniently in boxes and is backed by multiple quality certifications including RoHS and cURus, ensuring reliable and safe usage in various applications.
Features and Benefits:
•Compliant with RoHS and REACH.
•Uses clamping yoke for wire connections.
•Designed for through-hole mounting on PCBs.
•The product features a 90° conductor outlet direction.
•IP20 protection degree ensuring safety.
Specifications:

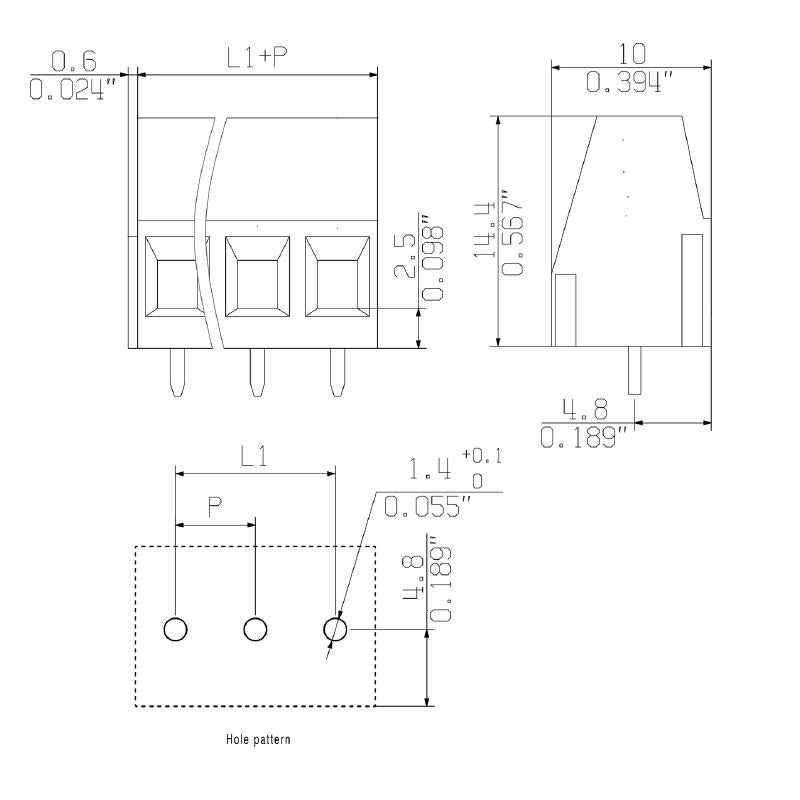

| Pitch in mm | 5.08 mm |
| Number of poles | 7 |
| Solder pin length | 3 mm |
| Screwdriver blade size | 0.6 x 3.5 |
| Tightening torque | 0.5 to 0.55 Nm |
| Clamping screw size | M 3 |
| Stripping length | 6 mm |
| Insulating material | PA |
| UL 94 flammability rating | V-0 |
| Contact material | Copper alloy |

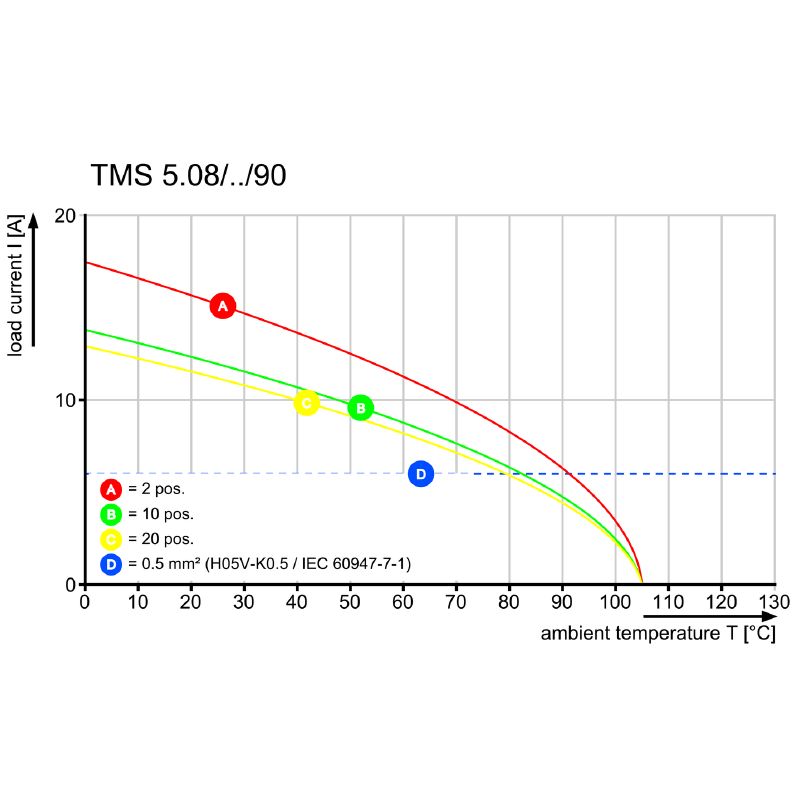

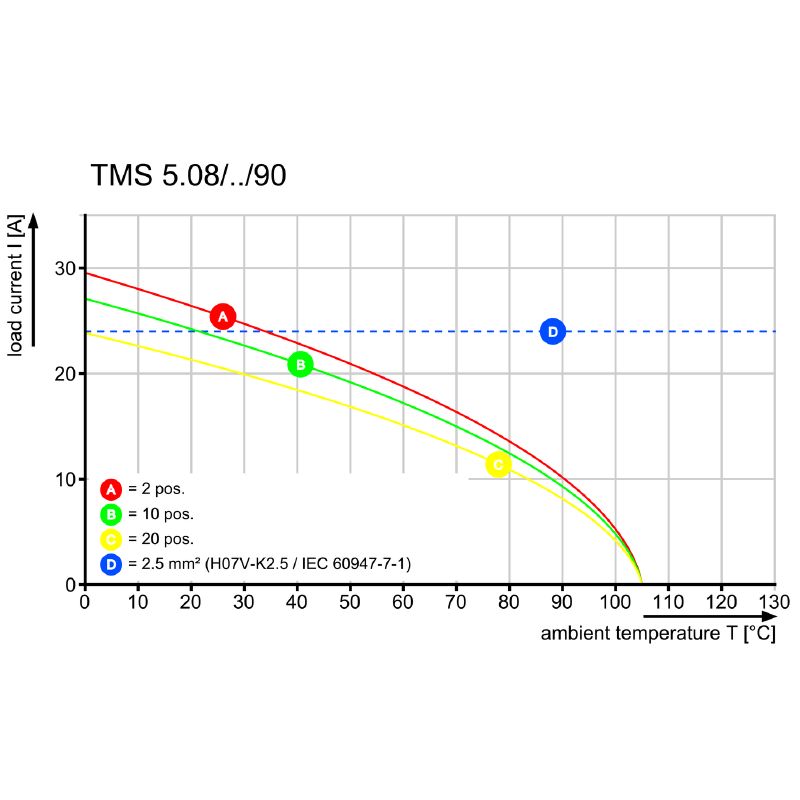

| Rated current (IEC) | 15 A |
| Rated voltage (IEC) | 320 V |
| Storage temperature range | -40 to 70 °C |
| Operating temperature max. | 105 °C |
