Description:

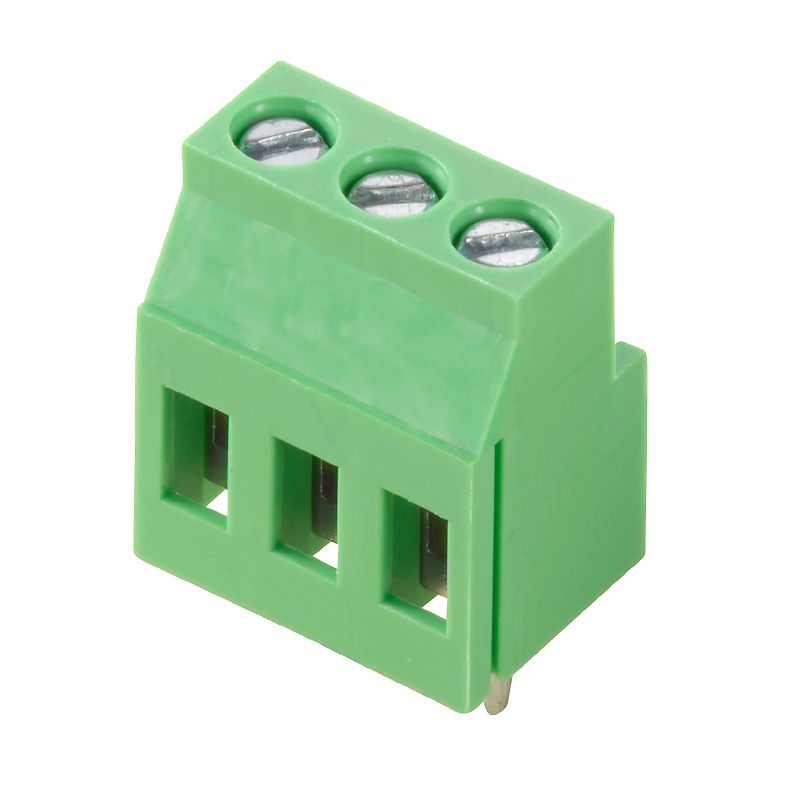

Introducing the TPS 508/06/90 50SN GN BX, a versatile solution for your electronic projects This component features a clamping yoke connection, making it ideal for through-hole technology (THT) soldering onto PCBs With a 90° outlet direction for conductors and a pitch of 508 mm, it effectively meets various application needs Weighing in at just 117 g and compliant with RoHS standards, this product is thoughtfully packaged in a box for your convenience.
Features and Benefits:
•Compliant with RoHS and has designated exemptions..
•Suitable for various conductor sizes with a clamping range from 0.2 mm² to 4 mm²..
•Insulating material is made of PA with a UL 94 flammability rating of V-0..
•Waterproof to degree IP20..
Specifications:
| IEC Rated Voltage | 320 V |
| IEC Rated Current | 20 A |
| UL Rated Voltage | 300 V |
| UL Rated Current | 15 A |

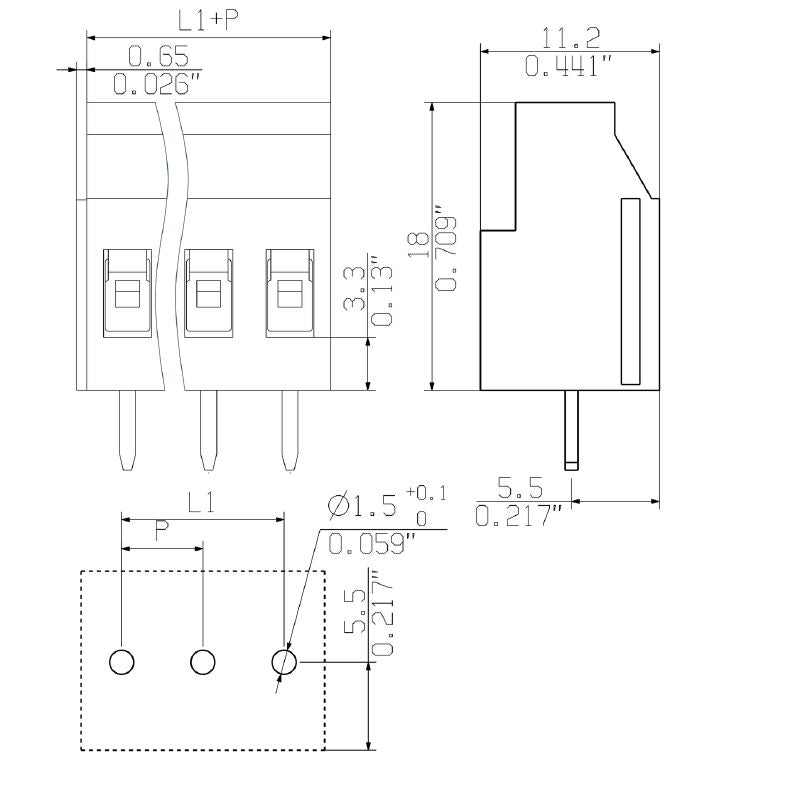

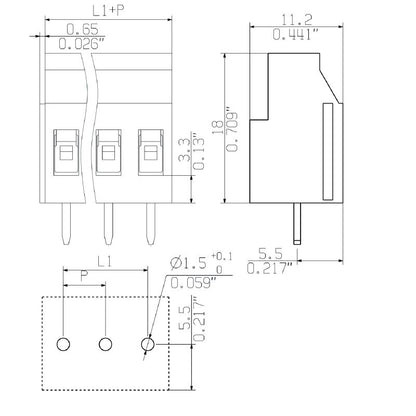

| Pitch in mm | 5.08 mm |
| Number of Poles | 6 |
| Solder Pin Length | 5 mm |
| Stripping Length | 8.5 mm |
| Tightening Torque (min) | 0.5 Nm |
| Tightening Torque (max) | 0.55 Nm |
| Protection Degree | IP20 |
| Storage Temperature (min) | -40 °C |
| Storage Temperature (max) | 70 °C |
| Operating Temperature (max) | 105 °C |
