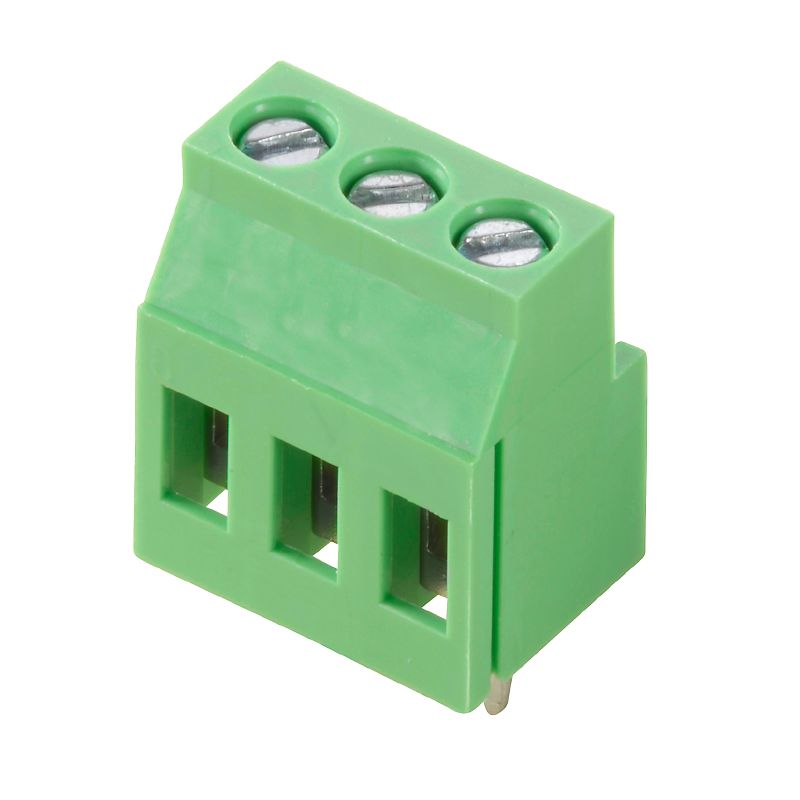

2651980000 - 90° Wire Connector, 0.2-4 mm² Clamping Range (Pack of 72)
2651980000 - 90° Wire Connector, 0.2-4 mm² Clamping Range (Pack of 72)
SKU: SKU: 2651980000 Download PDF
- 2651980000 - 90° Wire Connector, 0.2-4 mm² Clamping Range (Pack of 72)
- 2651980000 - 90° Wire Connector, 0.2-4 mm² Clamping Range (Pack of 72)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
The TPS 508/10/90 50SN GN BX is engineered for reliable wire connections with a clamping yoke feature that facilitates a secure 90° outlet direction for conductors It accommodates wire sizes starting from 02 mm² up to 4 mm², while also being compatible with AWG wire sizes ranging from 30 to 12 This component meets several safety and environmental standards, boasting RoHS and UL certifications Perfect for those seeking a dependable and versatile connection solution.
Features and Benefits:
•Wire connection method: Clamping yoke connection.
•Mounting onto the PCB: THT solder connection.
•Solder pin dimensions: 0.8 x 1.0 mm.
•Protection degree: IP20.
•Insulating material: PA.
•UL 94 flammability rating: V-0.
Specifications:
| Rated voltage: | 320 V |
| Rated current: | 20 A |
| Number of poles: | 10 |
| Stripping length: | 8.5 mm |
| Solder pin length: | 5 mm |
| Dimensions (L1): | 45.72 mm |
| Temperature range (Storage): | -40 °C to 70 °C |
| Temperature range (Operating): | -40 °C to 105 °C |
| Conductor outlet: | 90° |
| Clamping screw: | M 3 |
