Description:

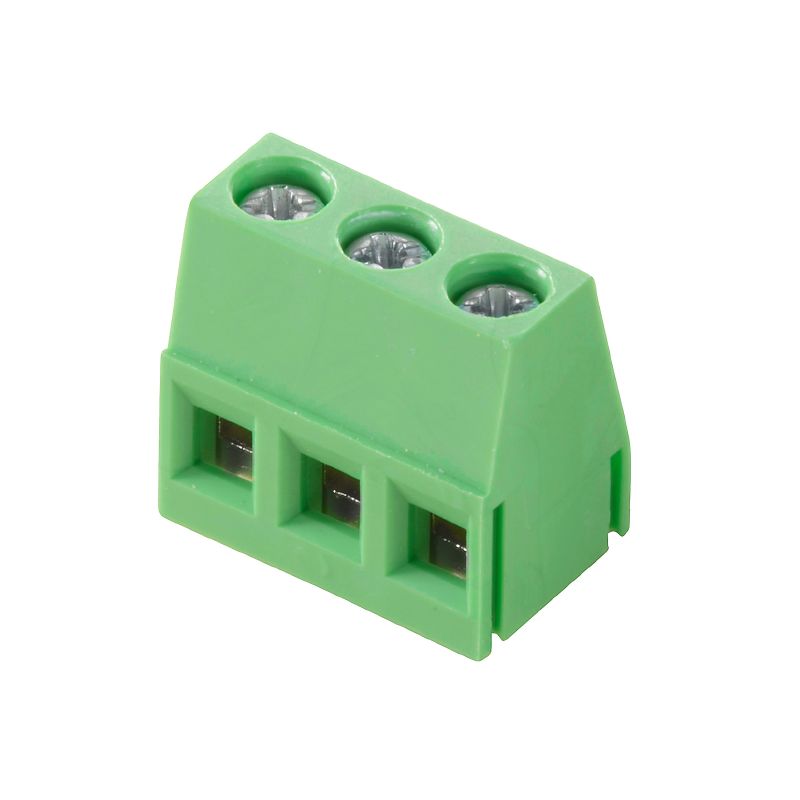

Introducing the TMS 508/19/90 30SN GN BX component, designed for seamless integration in a variety of electrical connections This device is RoHS compliant and proudly bears the UL certificate number E60693 It utilizes a clamping yoke connection method and is specifically engineered for through-hole solder connections on PCBs, featuring a conical conductor outlet angled at 90 degrees With a pitch of 5.
08 mm and a weight of 1957 grams, this product comes neatly packaged in a box, making it an excellent addition to your electronic projects.
Features and Benefits:
•IP20 protection degree.
•Small footprint with a 19 pole configuration.
•Designed for efficient PCB mounting.
Specifications:
| Rated Voltage (IEC) | 320 V |
| Rated Current (IEC) | 15 A |
| Wire Connection Method | Clamping yoke connection |
| Number of Poles | 19 |

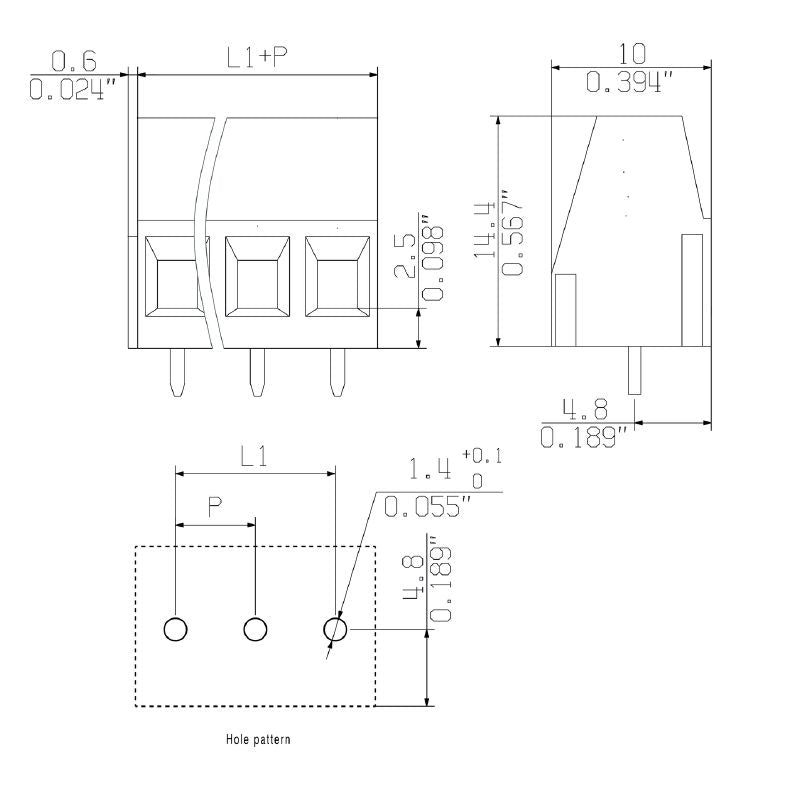

| Pitch | 5.08 mm |
| Solder Pin Length | 3 mm |
| Solder Eyelet Hole Diameter | 1.4 mm |
| Tightening Torque (min.) | 0.5 Nm |
| Tightening Torque (max.) | 0.55 Nm |
| Clamping Range | 0.2 - 2.5 mm² |
| Insulating Material | PA |
| Contact Material | Copper alloy |
| UL 94 Flammability Rating | V-0 |
| Operating Temperature (max.) | 105 °C |
| Storage Temperature (min.) | -40 °C |
| Storage Temperature (max.) | 70 °C |
