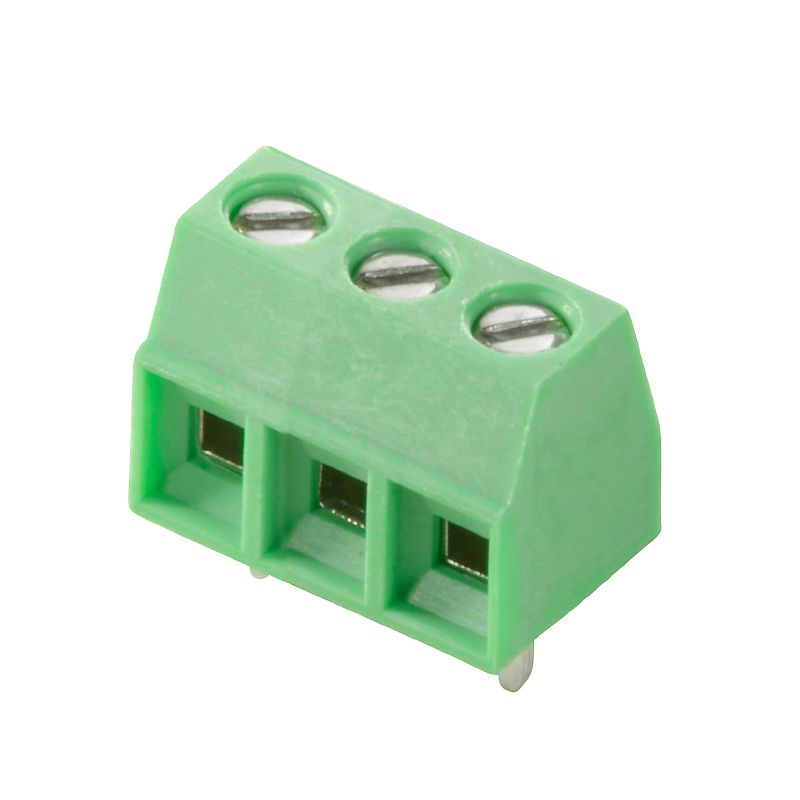

2650530000 - Compact Terminal Block with 90° Outlet, 0.2-1.5 mm² Wire Size (Pack of 156)
2650530000 - Compact Terminal Block with 90° Outlet, 0.2-1.5 mm² Wire Size (Pack of 156)
SKU: SKU: 2650530000 Download PDF
- 2650530000 - Compact Terminal Block with 90° Outlet, 0.2-1.5 mm² Wire Size (Pack of 156)
- 2650530000 - Compact Terminal Block with 90° Outlet, 0.2-1.5 mm² Wire Size (Pack of 156)
Couldn't load pickup availability
Description:
Introducing a versatile terminal block that features a clamping yoke connection, accommodating wire sizes from 02 mm² to 15 mm² This product meets both IEC and UL standards, ensuring reliable performance in various applications Its compact design includes a 90° outlet direction and a 381 mm pitch, making it an excellent choice for space-restricted installations Crafted from premium materials, this terminal block offers exceptional durability and ensures safe electrical conductivity even within designated temperature ranges.
Features and Benefits:
•Clamping yoke connection method.
•Mounting via THT solder connection.
•Easy installation due to flexible design.
•Pale green color, compliant with RAL 6021.
Specifications:
| IEC Voltage | 320 V |
| IEC Current | 10 A |
| Wire Connection Cross Section (min) | 0.2 mm² |
| Wire Connection Cross Section (max) | 1.5 mm² |
| Rated Voltage (Use group B / CSA) | 150 V |
| Rated Current (Use group B / CSA) | 10 A |
| Storage Temperature (min) | -40 °C |
| Operating Temperature (max) | 105 °C |

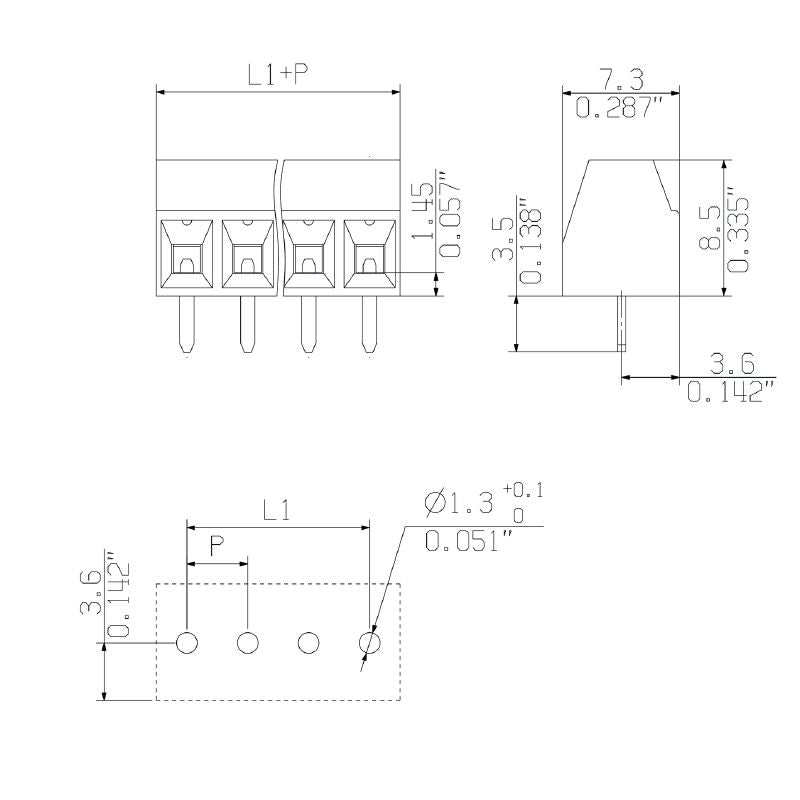

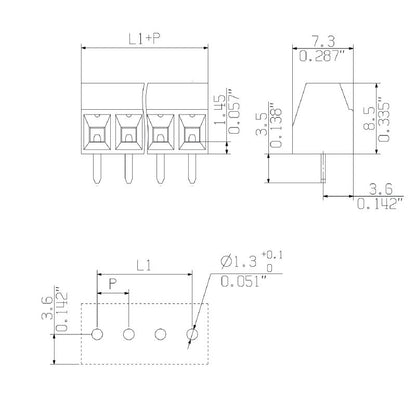

| Pitch | 3.81 mm |
| Number of Poles | 12 |
| Protection Degree | IP20 |
