2651350000 - 5.08mm 4-Pole PCB Connector with 90° Clamping Yoke (Pack of 150)

Description:

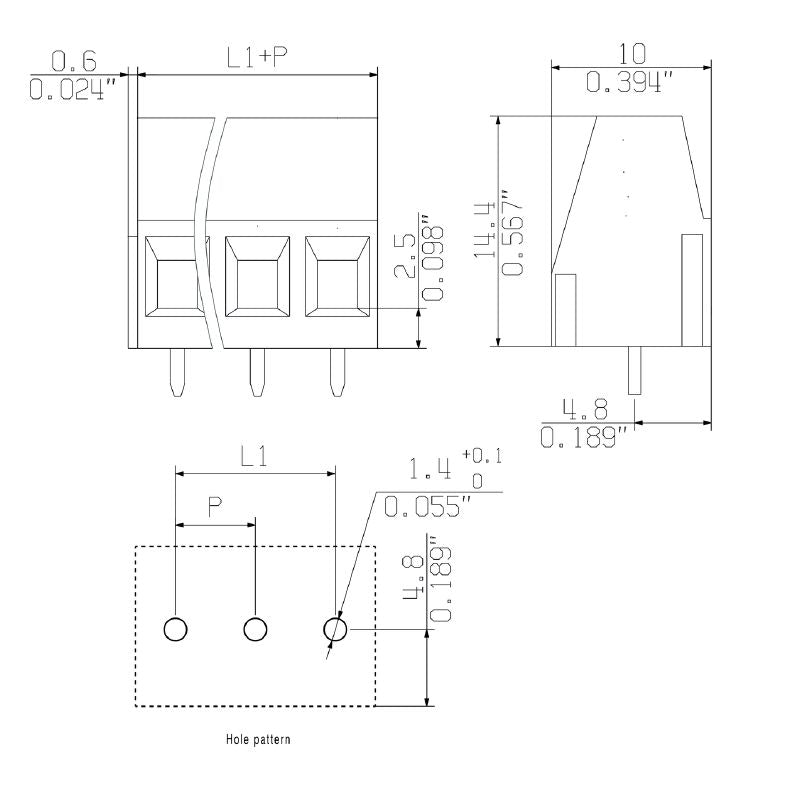

Discover the essentials of the OMNIMATE basic series with this clamping yoke connection, expertly engineered for THF solder connections on printed circuit boards With a 90° conductor outlet direction and a 508 mm (02 inches) pitch, this component offers easy integration It includes four poles neatly arranged in a single row, each equipped with its own solder pin Designed for efficiency, the minimum and maximum tightening torque specifications of 0.

5 Nm and 055 Nm are achievable with an M3 clamping screw The durable construction features PA insulation in an appealing pale green hue, compliant with RAL 6021 standards This product boasts a V-0 flammability rating per UL 94, ensuring safety and reliability It performs optimally in temperature conditions ranging from -40 °C to 70 °C for storage, and can operate at temperatures up to 105 °C Suitable for conductors within a clamping range of 0.

2 mm² to 25 mm².

Features and Benefits:

•Suitable for wire connections from AWG 30 to AWG 12.

•Easy mounting with a THT solder connection.

•Compliant with RoHS and other environmental standards.

•Single row structure with efficient space utilization.
