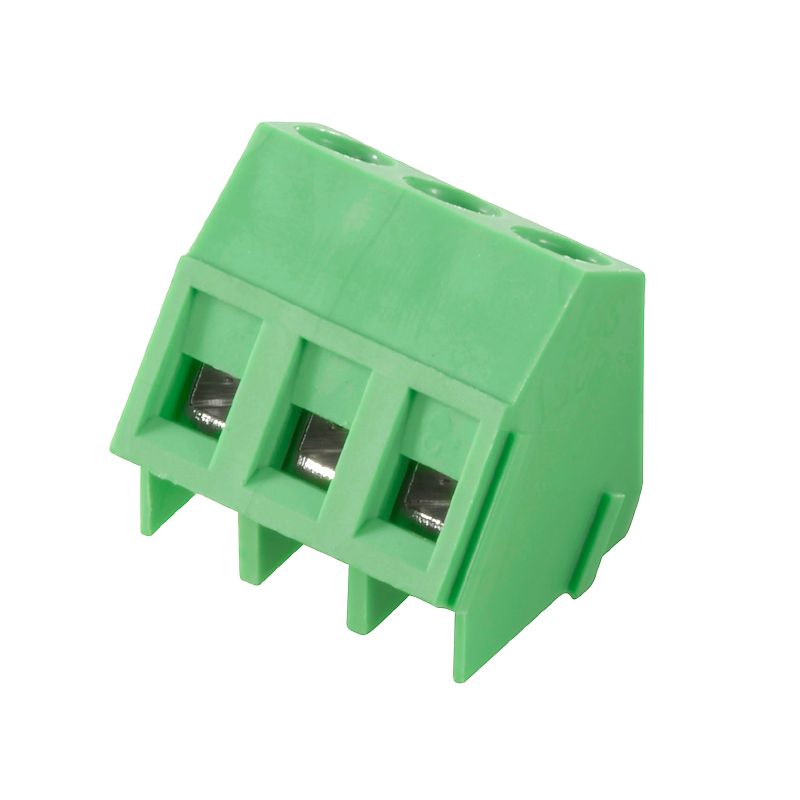

2651640000 - 5.08mm 14-Pole Solder Connection with 135° Outlet (Pack of 42)
2651640000 - 5.08mm 14-Pole Solder Connection with 135° Outlet (Pack of 42)
SKU: SKU: 2651640000 Download PDF
- 2651640000 - 5.08mm 14-Pole Solder Connection with 135° Outlet (Pack of 42)
- 2651640000 - 5.08mm 14-Pole Solder Connection with 135° Outlet (Pack of 42)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

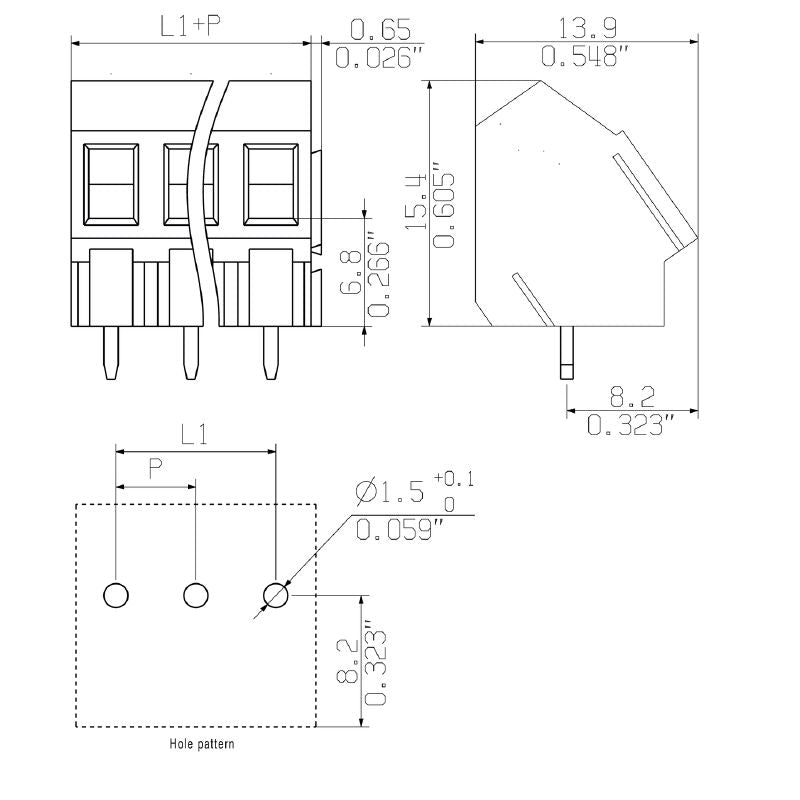

Discover the versatility of the OMNIMATE basic series with this expertly designed connection component It boasts a clamping yoke connection paired with a through-hole technology (THT) solder connection suitable for your PCB needs The angled conductor outlet enhances accessibility at 135°, while the 508 mm pitch accommodates 14 poles arranged in a single line Each pole is equipped with a solder pin that measures 3.
3 mm in length, and the pin dimensions are 08 x 09 mm This component also features a clamping screw with a size of M 3, alongside a minimum stripping length of 75 mm With an IP20 protection rating, this device guarantees a reliable performance for your projects.
Features and Benefits:
•Clamping yoke connection for effective wire connection.
•Designed for easy PCB mounting with THT solder connection.
•Single row construction for efficient space use.
•Protection rating of IP20 for environmental safety.
•Constructed from lead-compliant materials.
Specifications:

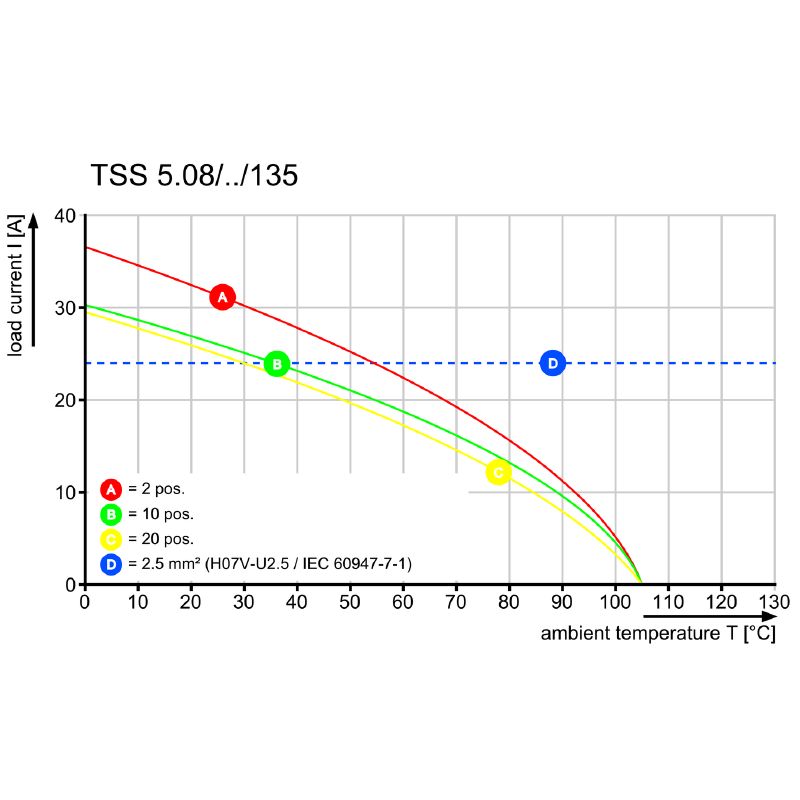

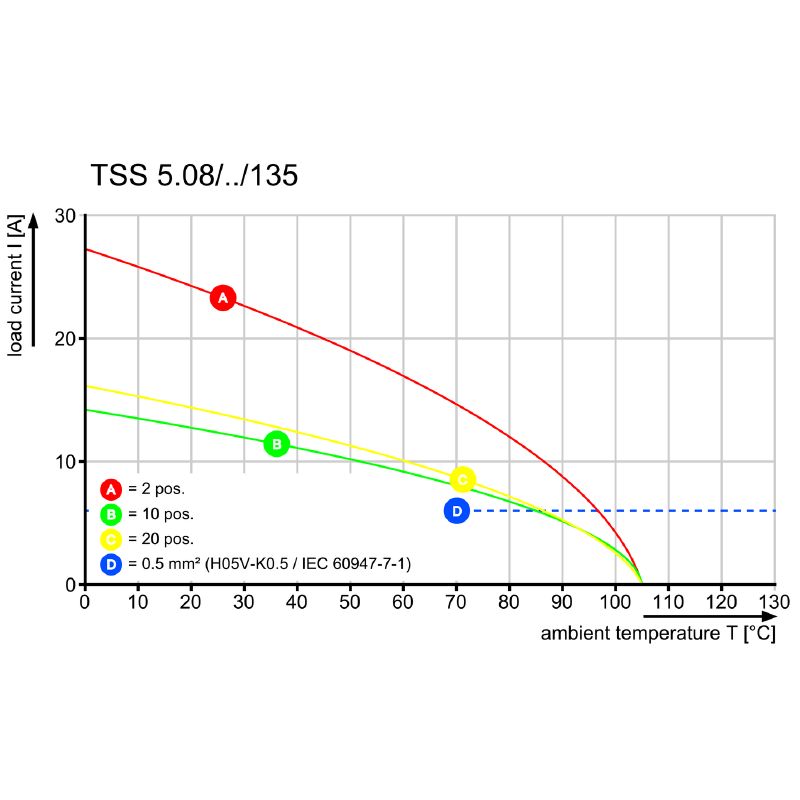

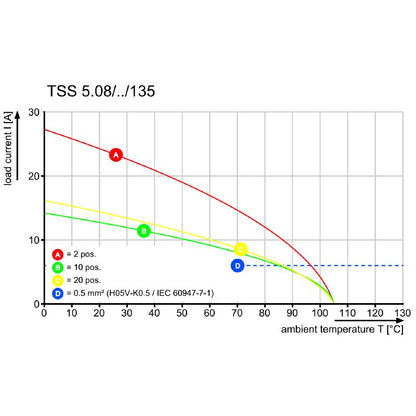

| Rated Voltage (IEC) | 630 V |
| Rated Current (IEC) | 20 A |
| Clamping Range (min) | 0.2 mm² |
| Clamping Range (max) | 2.5 mm² |
| Wire Connection Cross Section AWG (min) | AWG 30 |
| Wire Connection Cross Section AWG (max) | AWG 12 |
| Solder Eyelet Hole Diameter | 1.5 mm |
| Tightening Torque (min) | 0.5 Nm |
| Tightening Torque (max) | 0.55 Nm |
| Storage Temperature (min) | -40 °C |
| Storage Temperature (max) | 70 °C |
| Operating Temperature (max) | 105 °C |
| UL File Number | E60693 |
| Material | PA |
| Insulating Material Group | I |
| UL 94 Flammability Rating | V-0 |
