2651190000 - Reliable Connector 630V, 20A, Clamping Yoke, RoHS Compliant (Pack of 81)
2651190000 - Reliable Connector 630V, 20A, Clamping Yoke, RoHS Compliant (Pack of 81)
SKU: SKU: 2651190000 Download PDF
- 2651190000 - Reliable Connector 630V, 20A, Clamping Yoke, RoHS Compliant (Pack of 81)
- 2651190000 - Reliable Connector 630V, 20A, Clamping Yoke, RoHS Compliant (Pack of 81)
Couldn't load pickup availability
Description:

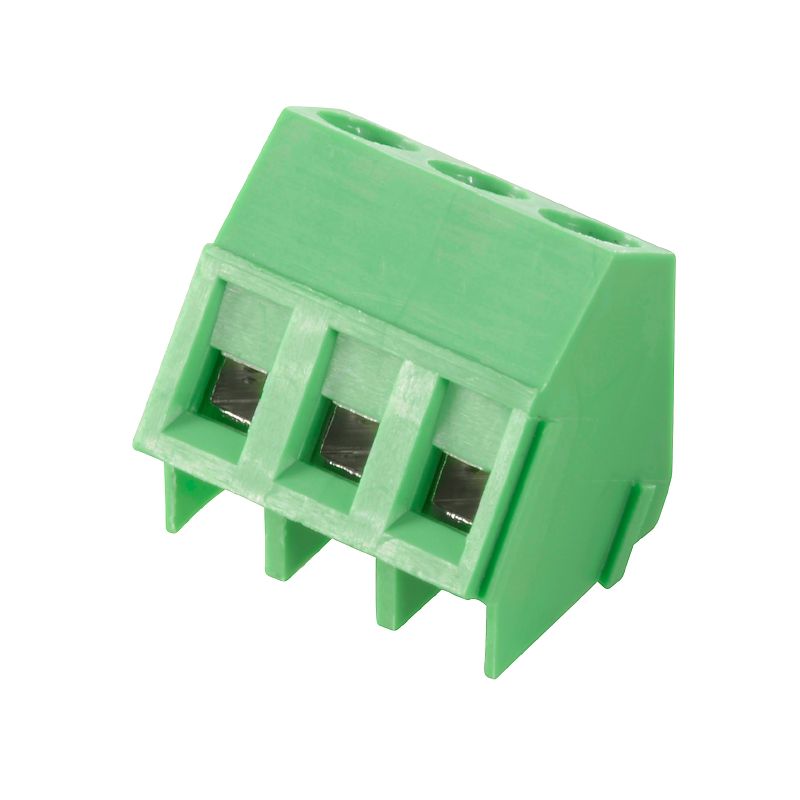

Introducing the TSS 500/07/135 33SN GN BX connector, a dependable choice for a wide range of applications This connector meets both IEC and UL standards, ensuring high performance and safety It supports voltage up to 630 V and can handle a maximum current of 20 A The design accommodates wire sizes from 02 mm² to 25 mm², equivalent to AWG 30 to AWG 12, while the clamping yoke connection method guarantees a secure and reliable fit.
Adhering to RoHS regulations, this connector is also environmentally friendly Weighing in at just 168 g, it features a THT solder connection for easy mounting and installation.
Features and Benefits:
•Compliant with RoHS regulations with exemptions.
•Has a robust insulation material made from PA.
•Compact design with a pitch of 5 mm.
•Offers a high degree of protection rated at IP20.
•Designed for environments with a storage temperature range of -40°C to +70°C.
Specifications:
| UL File Number | E60693 |
| Rated Current | 20 A |
| Rated Voltage (IEC) | 630 V |
| Number of Poles | 7 |
| Pin Series Quantity | 1 |
| Number of Rows | 1 |
| Solder Pin Length | 3.3 mm |
| Clamping Screw | M 3 |
| Tightening Torque Min | 0.5 Nm |
| Tightening Torque Max | 0.55 Nm |
| Stripping Length | 7.5 mm |
| Insulating Material Group | I |
| Flammability Rating | V-0 |
| Temp. (Storage) | -40 °C to 70 °C |
| Temp. (Operating Max) | 105 °C |
| Clamping Range Min | 0.2 mm² |
| Clamping Range Max | 2.5 mm² |
| Colour | Pale green (RAL 6021) |
