2651920000 - 5.08mm 4-Pole PCB Connector with 90° Outlet (Pack of 192)
2651920000 - 5.08mm 4-Pole PCB Connector with 90° Outlet (Pack of 192)
SKU: SKU: 2651920000 Download PDF
- 2651920000 - 5.08mm 4-Pole PCB Connector with 90° Outlet (Pack of 192)
- 2651920000 - 5.08mm 4-Pole PCB Connector with 90° Outlet (Pack of 192)
Couldn't load pickup availability
Description:
Introducing the TPS 508/04/90 50SN GN BX, a robust electronic component engineered for dependable connectivity This model is compliant with ROHS regulations and adheres to various UL standards, ensuring high quality and safety It utilizes a wire connection method with a clamping yoke, making it easy to integrate into your projects Designed for through-hole (THT) solder connections, it features a 90° outlet direction for the conductors and offers a pitch of 5.
08 mm across four poles Each unit comes conveniently packaged in boxes for easy storage and transport.
Features and Benefits:
•Compliant with RoHS and UL standards.
•Clamping yoke connection for ease of use.
•Designed for THT solder connections on PCBs.
•Available in a pale green color.
•Consists of high-quality materials such as copper alloy for contacts.
Specifications:
| IEC Rated Voltage | 320 V |

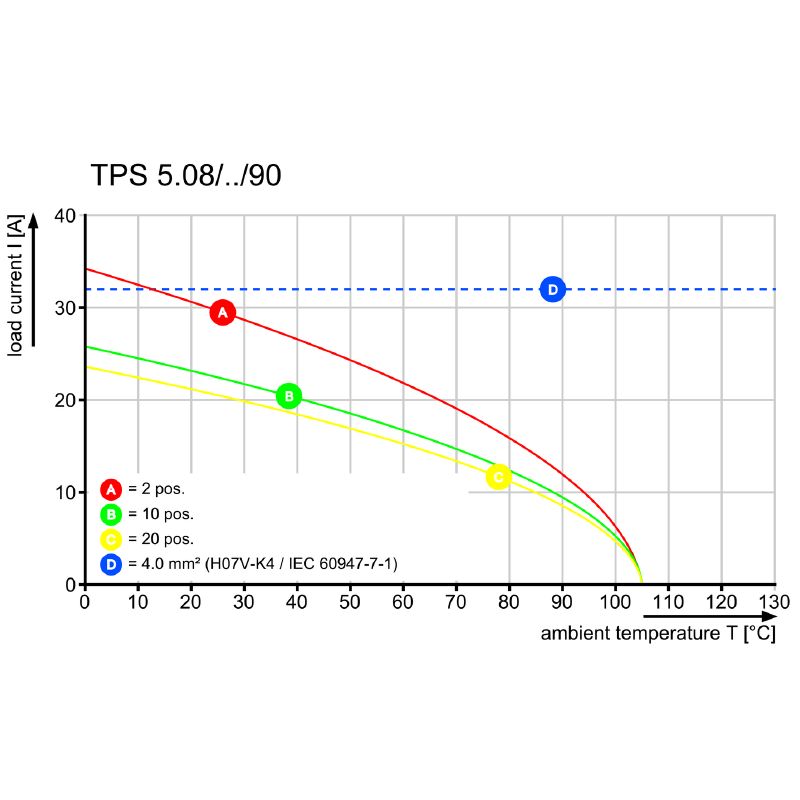

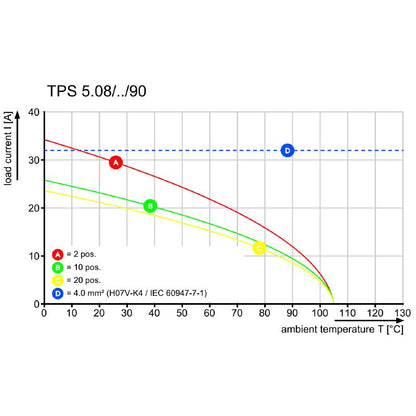

| IEC Rated Current | 20 A |
| UL Rated Voltage | 300 V |
| UL Rated Current | 15 A |

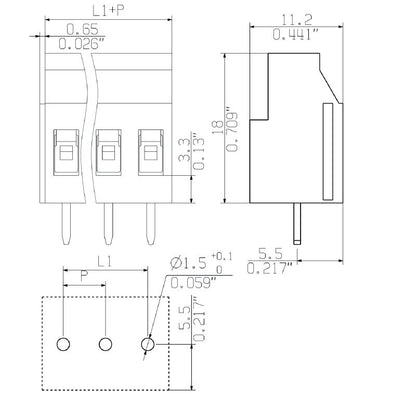

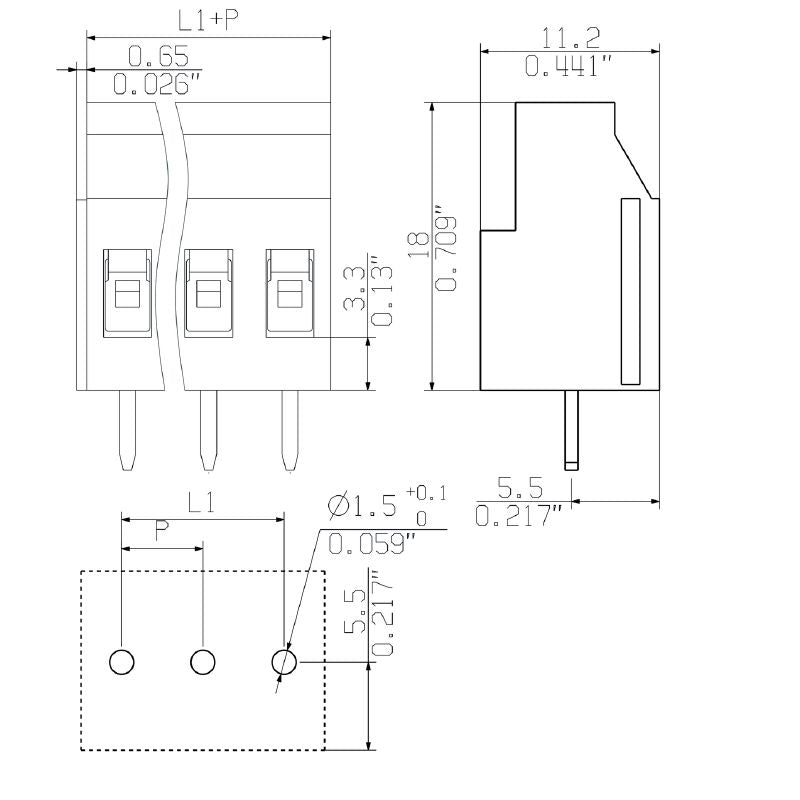

| Pitch | 5.08 mm |
| Number of Poles | 4 |
| Solder Pin Length | 5 mm |
| Protection Degree | IP20 |
| Insulating Material | PA |
| Flammability Rating | V-0 |
| Storage Temperature Min | -40 °C |
| Storage Temperature Max | 70 °C |
| Operating Temperature Max | 105 °C |
| Clamping Range Min | 0.2 mm² |
| Clamping Range Max | 4 mm² |
