Description:

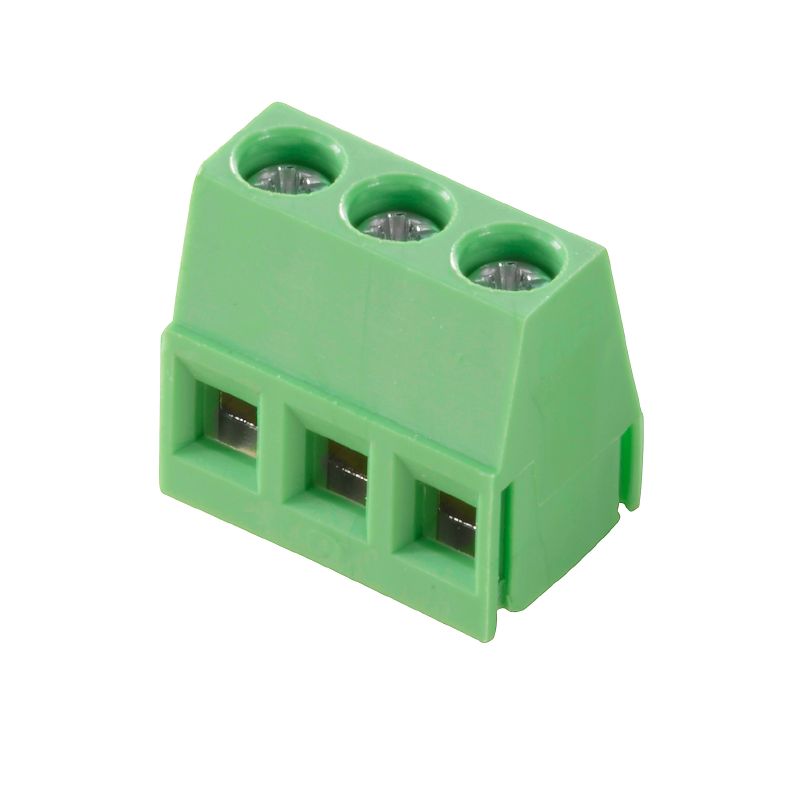

Introducing a versatile terminal block designed for efficient integration into PCB applications This model features a 90° conductor outlet direction and utilizes THT solder connections for seamless installation It accommodates wire cross-sections ranging from 02 to 25 mm² (available for AWG 30 to AWG 12), ensuring broad compatibility for your electrical needs
Arranged in a single row with 12 poles and a 5 mm pitch, this component allows for streamlined electrical connections.
Crafted from pale green insulating material, it boasts a professional aesthetic while meeting RoHS compliance and UL certification standards Ideal for a variety of applications, this terminal block guarantees reliability and safety in your projects.
Features and Benefits:
•Clamping range from 0.2 mm² to 2.5 mm².
•Insulating material with UL 94 flammability rating V-0.
•Suitable for a wide range of wire cross-section sizes.
Specifications:
| Wire connection method | Clamping yoke connection |
| Mounting onto the PCB | THT solder connection |
| Conductor outlet direction | 90° |

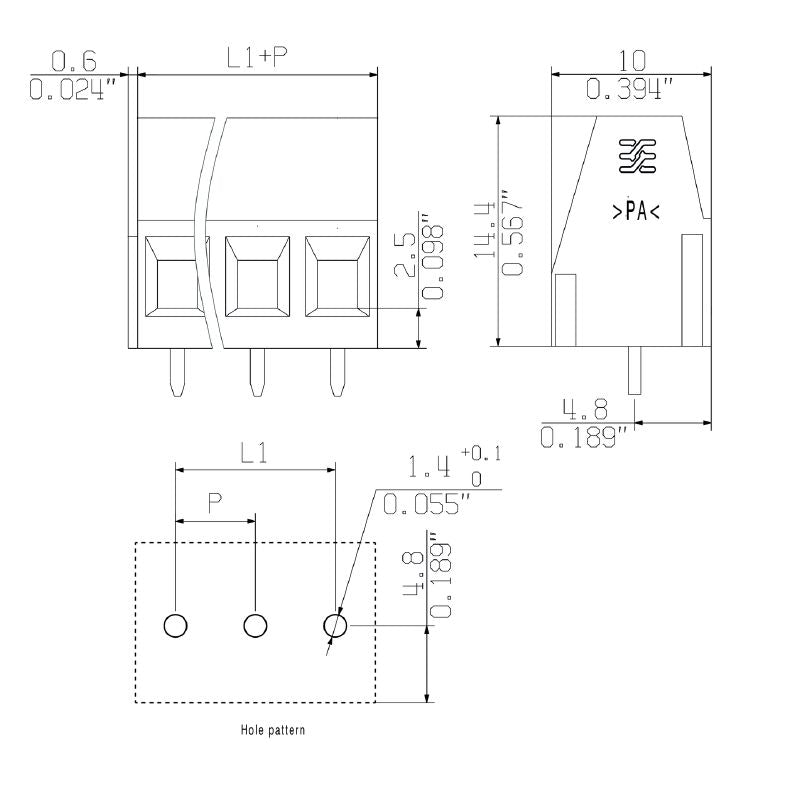

| Pitch in mm (P) | 5 mm |
| Number of poles | 12 |
| Pin series quantity | 1 |
| Number of rows | 1 |
| Solder pin length (l) | 3 mm |
| Solder pin dimensions | 0.7 x 0.9mm |
| Solder eyelet hole diameter (D) | 1.4 mm |
| Protection degree | IP20 |
| Insulating material | PA |
| Colour | Pale green |
| Contact material | Copper alloy |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 70 °C |
| Operating temperature, max. | 105 °C |

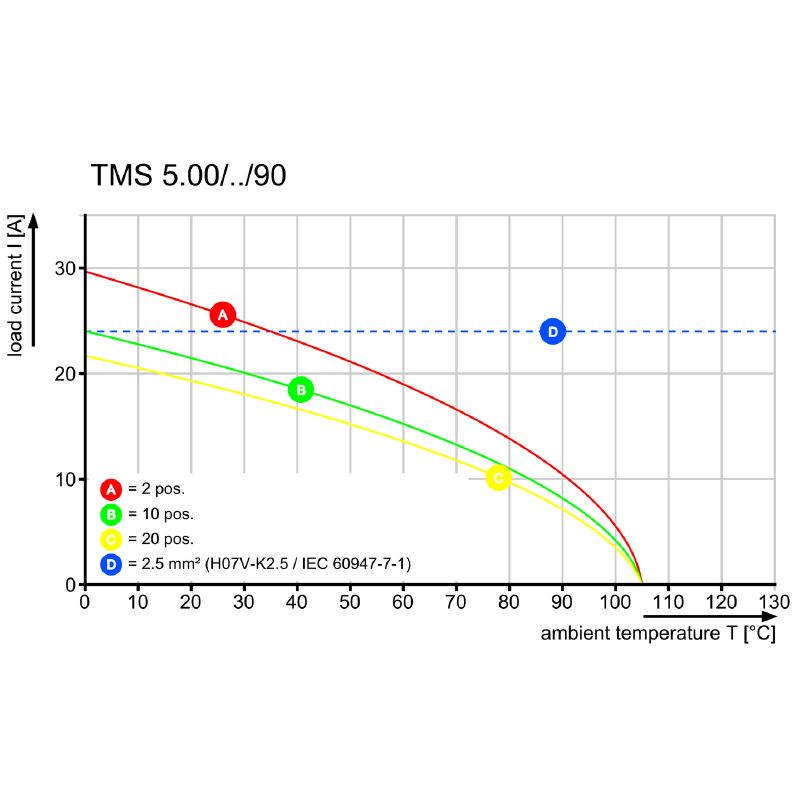

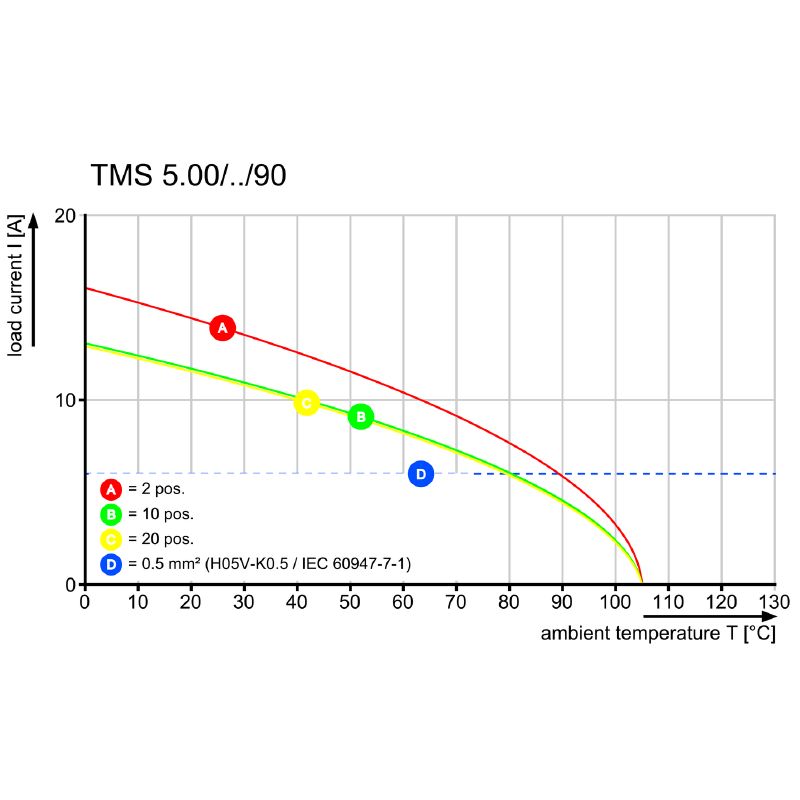

| Rated current | 15 A |
| Rated voltage | 300 V |
