Description:

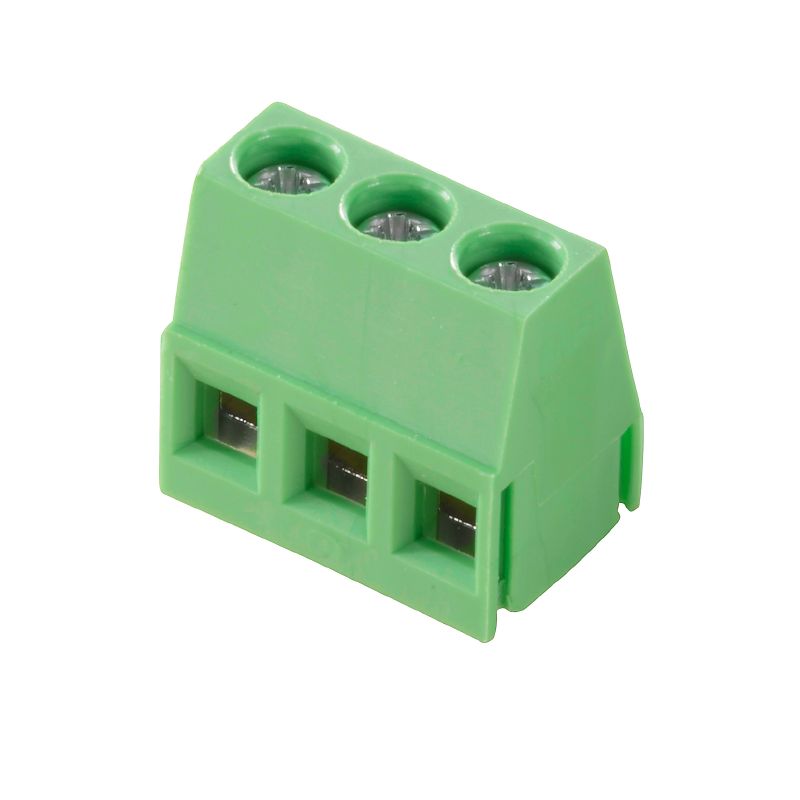

Introducing the TMS 500/02/90 30SN GN BX, a premium component engineered to meet IEC standards, offering a voltage rating of 320 V at 15 A This versatile product accommodates conductor sizes from 02 to 25 mm² It also adheres to UL standards, providing a rating of 300 V at 15 A for AWG sizes ranging from 30 to 12 Packaged neatly in a box, this item belongs to the OMNIMATE basic series and is available with multiple pole configurations and clamping options, ensuring a perfect fit for your needs.
Features and Benefits:
•Approvals: RoHS compliant with exemptions.
•Suitable for both flexible and solid conductors.
•Utilizes clamping yoke connection method and THT solder connection.
•IP20 protection degree for components.
Specifications:
| Product family | OMNIMATE basic – Series TMS |
| Wire connection method | Clamping yoke connection |
| Mounting onto the PCB | THT solder connection |
| Conductor outlet direction | 90° |
| Pitch in mm (P) | 5 mm |
| Number of poles | 2 |
| Number of rows | 1 |
| Solder pin length (l) | 3 mm |
| Solder pin dimensions | 0.7 x 0.9 mm |
| Solder eyelet hole diameter (D) | 1.4 mm |
| Clamping screw | M 3 |
| Stripping length | 6 mm |
| Protection degree | IP20 |
| Insulating material | PA |
| Colour | Pale green |
| UL 94 flammability rating | V-0 |
| Contact material | Copper alloy |
| Contact surface | tinned |
| Storage temperature | -40 °C to 70 °C |
| Operating temperature | max. 105 °C |
| Rated current | 15 A |
| Rated voltage | 320 V |
| Wire cross-section, AWG, min. | AWG 30 |
| Wire cross-section, AWG, max. | AWG 12 |
