Description:

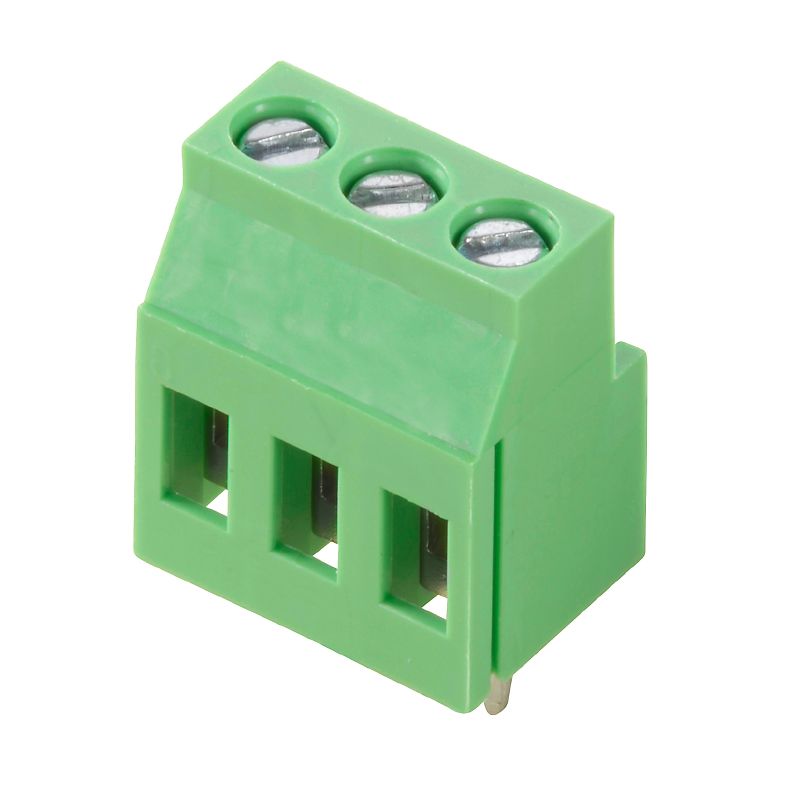

Discover the versatility of this OMNIMATE basic series terminal block, which offers a reliable clamping yoke connection method and a 90° conductor outlet orientation Engineered to meet RoHS compliance, this terminal block is ideal for a diverse range of wire connection tasks It accommodates wires ranging from 005 to 4 mm², with a rated voltage capacity of 320 V and a maximum current rating of 20 A per IEC specifications.
Crafted from pale green PA insulating material, this product is designed to withstand storage temperatures from -40 °C to 70 °C, ensuring long-lasting performance in various conditions.
Features and Benefits:
•Compliance with RoHS and UL certifications.
•Clamping yoke connection ensures secure wire connections.
•90° conductor outlet for compact installations.
•Pale green color for easy identification.
•Compatible exclusively with OMNIMATE basic products.
Specifications:
| IEC Rated Voltage | 320 V |

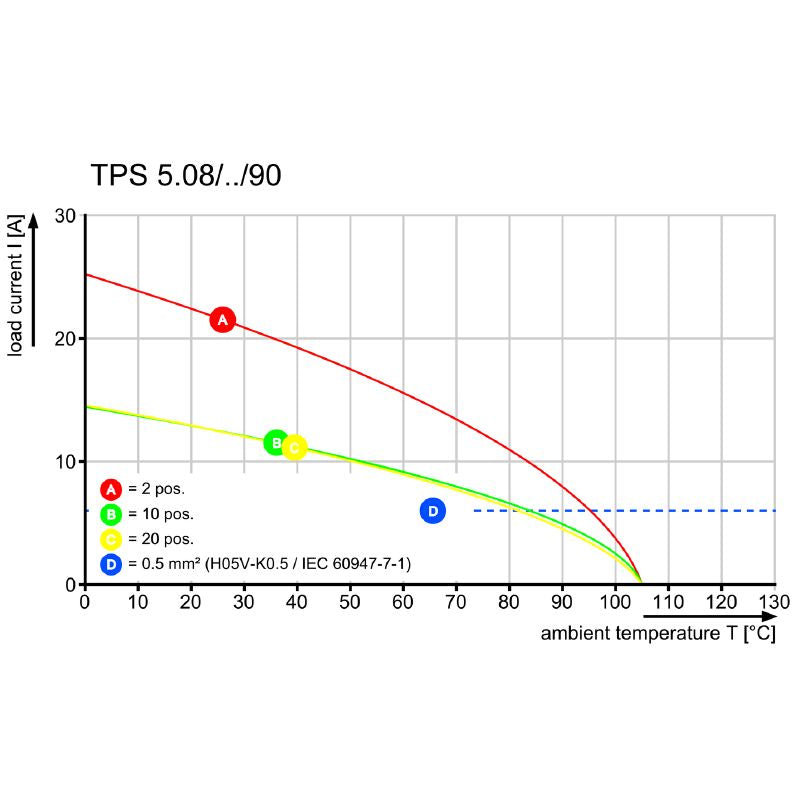

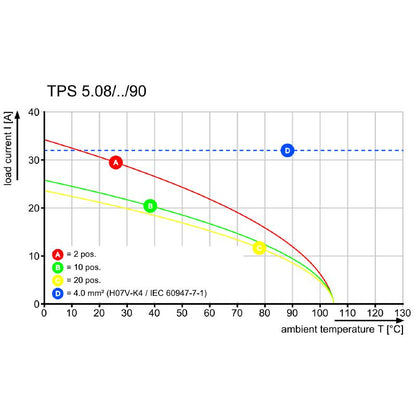

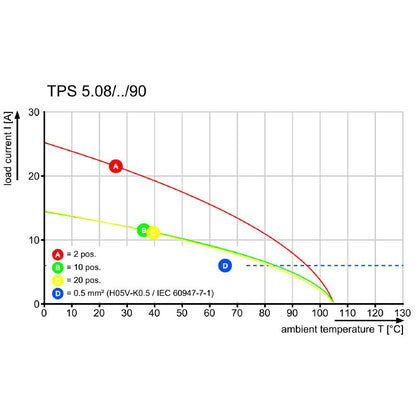

| IEC Rated Current | 20 A |
| UL Rated Voltage | 300 V |
| UL Rated Current | 15 A |

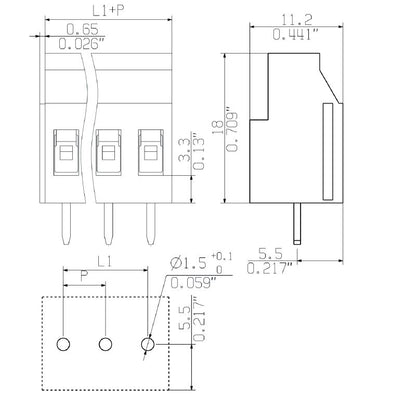

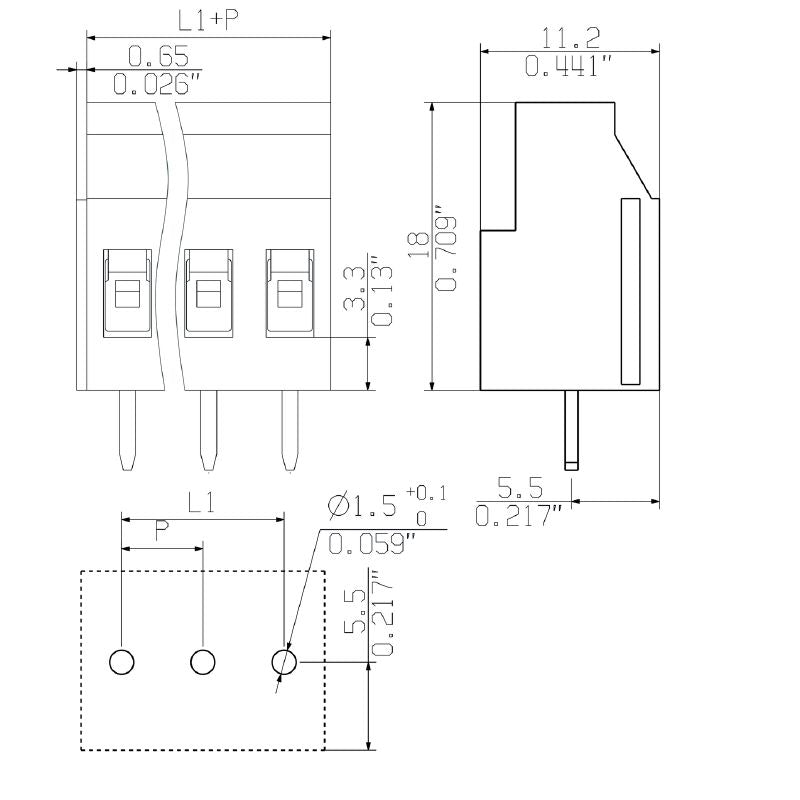

| Pitch | 5.08 mm |
| Number of Poles | 13 |
| Insulating Material | PA |
| Contact Material | Copper alloy |
| Protection Degree | IP20 |
| Tightening Torque | 0.5 - 0.55 Nm |
| Solder Pin Length | 5 mm |
| Solder Eyelet Hole Diameter | 1.5 mm |
| Storage Temperature | -40 °C to 70 °C |
| Operating Temperature | 105 °C |
| Conductor Clamping Range | 0.2 - 4 mm² |
| Wire Connection Cross Section AWG | AWG 30 - AWG 12 |
| UL 94 Flammability Rating | V-0 |
