Description:
Introducing the TCS 381/13/90 35SN GN BX connector, a reliable component featuring several industry approvals, including RoHS compliance This connector utilizes a clamping yoke for wire connections and is designed for through-hole technology (THT) soldering to attach securely to your PCB With 13 poles and a conductor outlet direction of 90 degrees, it effectively meets your connectivity needs The connector is rated for a maximum voltage of 320 V (IEC) and 150 V (UL), alongside a current capacity of 10 A.
Packaged neatly in boxes, each unit weighs just 598 grams, offering both functionality and ease of use for your electronic projects.
Features and Benefits:
•RoHS compliant.
•Compatible only with OMNIMATE basic products.
•Solder pin length of 3.5 mm.

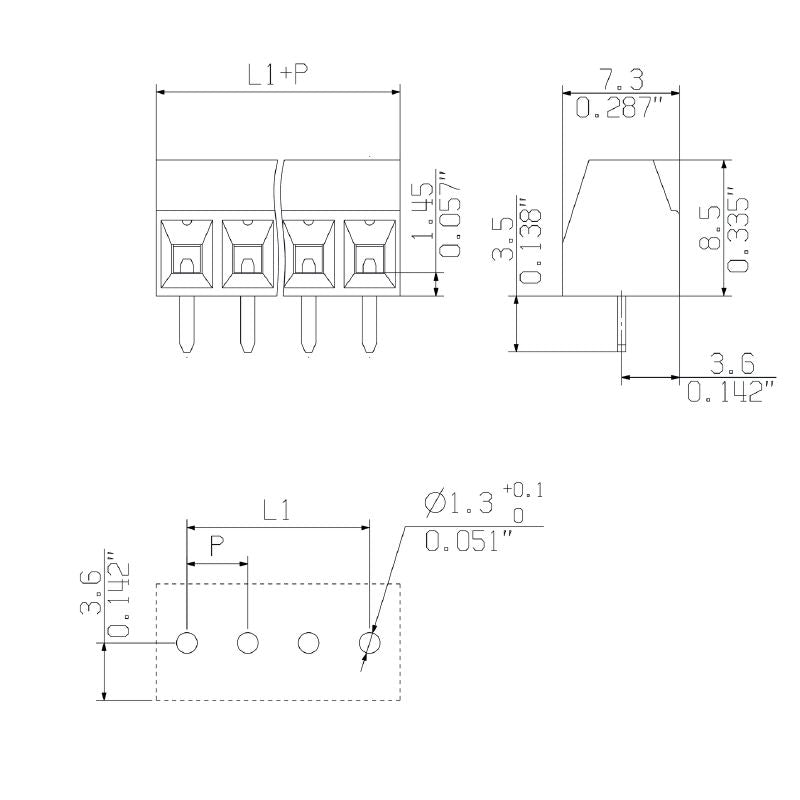

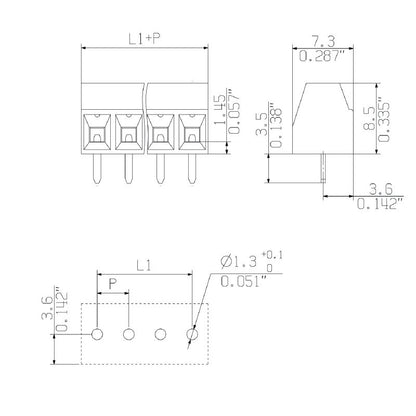

Specifications:
| Wire connection method | Clamping yoke connection |
| Mounting onto the PCB | THT solder connection |
| Pitch in mm (P) | 3.81 mm |
| Number of poles | 13 |
| Solder pin dimensions | 0.5 x 0.9 mm |
| Protection degree | IP20 |
| Insulating material | PA |
| UL 94 flammability rating | V-0 |
| Rated current | 10 A |
| Rated voltage | 320 V |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 70 °C |
| Shelf life under average conditions | 36 months |
| Tightening torque, min. | 0.2 Nm |
| Tightening torque, max. | 0.23 Nm |
