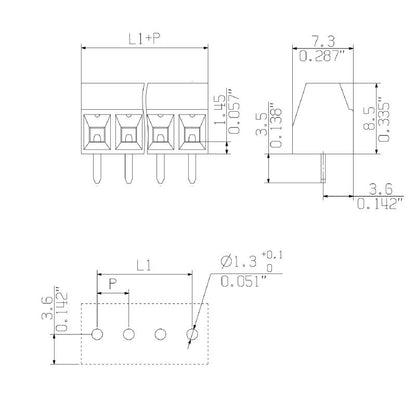

2650500000 - RoHS Compliant Electrical Connector with 90° Outlet (Pack of 192)
2650500000 - RoHS Compliant Electrical Connector with 90° Outlet (Pack of 192)
SKU: SKU: 2650500000 Download PDF
- 2650500000 - RoHS Compliant Electrical Connector with 90° Outlet (Pack of 192)
- 2650500000 - RoHS Compliant Electrical Connector with 90° Outlet (Pack of 192)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

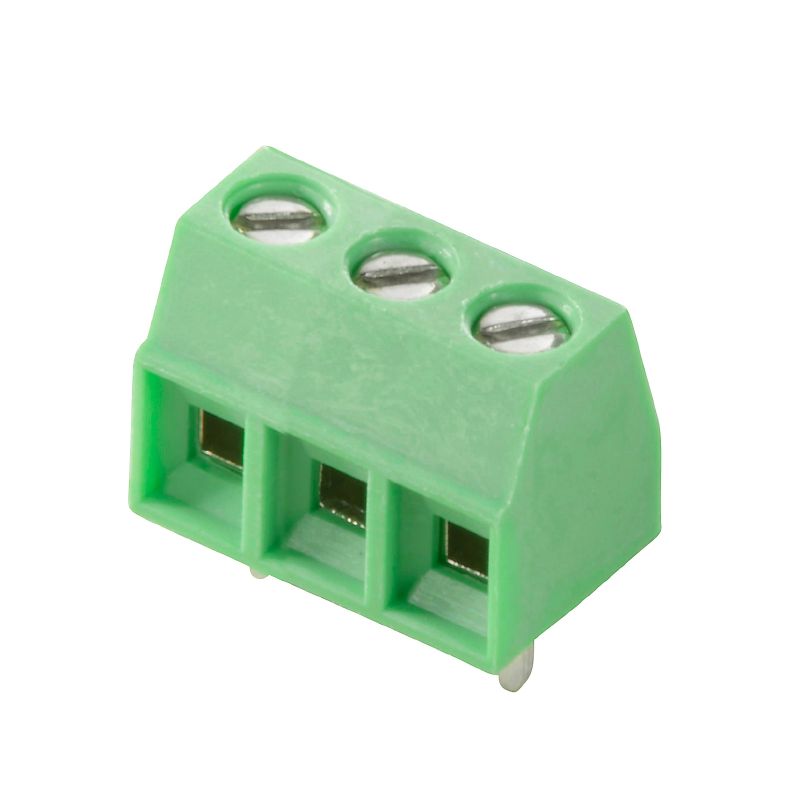

Introducing the TCS 381/09/90 35SN GN BX, a reliable solution for your electrical connection needs This component complies with RoHS standards and holds a UL certification (certificate number E60693), ensuring it meets high-quality safety regulations Part of the OMNIMATE basic series, it employs a clamping yoke connection method for secure wire attachments The product features a convenient 90° conductor outlet direction and is designed for easy integration with PCBs via THT solder techniques, making it an excellent choice for various applications.
Features and Benefits:
•Compliant with RoHS regulations.
•Part of the OMNIMATE basic series.
•Clamping yoke connection method.
•90° conductor outlet direction.
•THT solder connection for PCB mounting.
Specifications:
| IEC Voltage Rating | 320 V |
| UL Voltage Rating | 150 V |
| Rated Current | 10 A |
| Number of Poles | 9 |
| Pin Series Quantity | 1 |
| Insulating Material | PA |
| Rated Surge Voltage Class II/2 | 320 V |
| Rated Impulse Voltage II/2 | 2.5 kV |
| Solder Pin Length | 3.5 mm |
| Tightening Torque | 0.2-0.23 Nm |
| Protection Degree | IP20 |
| Storage Temperature | -40 °C to 70 °C |
| Operating Temperature | Maximum 105 °C |
| Clamping Range | 0.2 mm² to 1.5 mm² |
| Wire Cross-Section AWG | 26 to 16 |
