Description:

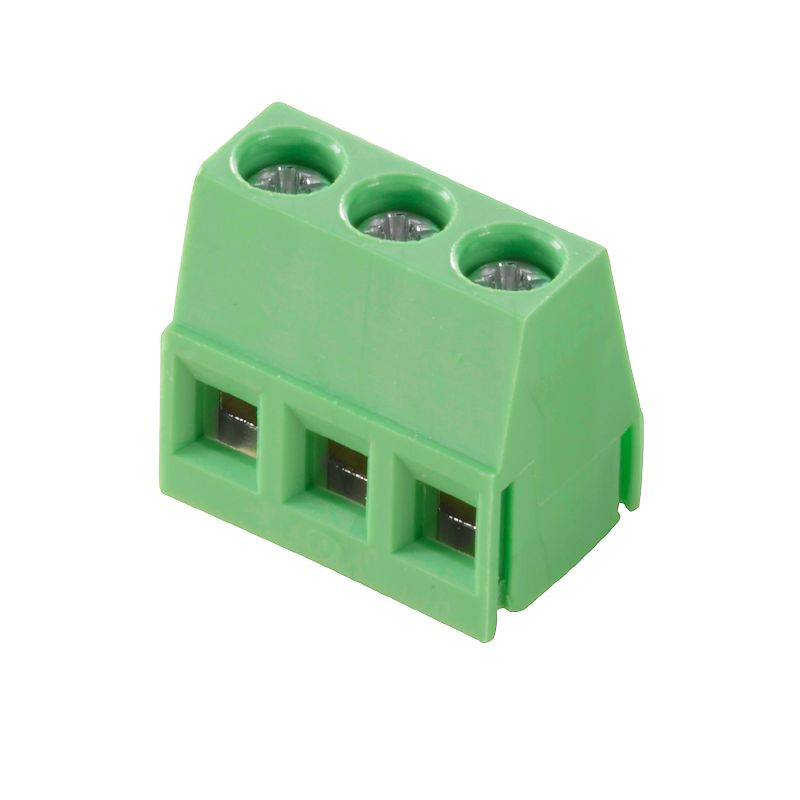

Introducing the TMS 500/17/90 30SN GN BX, a versatile component crafted for seamless wire connections through its innovative clamping yoke mechanism Specialized for THT solder connections, it allows for conductor outlet directions at 90° With a compact pitch of just 5 mm, this product supports various conductor sizes from 02 to 25 mm² It is compliant with both RoHS and UL standards, making it a reliable choice for a wide range of applications, ensuring safety and efficiency in connectivity.
Features and Benefits:
•Net weight of 17.51 g.
•Compliant with RoHS exemptions.
•Operating temperature range up to 105 °C.
•Insulating material made from PA.
•Protection degree IP20.
•Includes clamping screw M3.
•Solder pin dimensions are 0.7 x 0.9 mm.
Specifications:
| Rated current | 15 A |
| Rated voltage | 320 V |
| Number of poles | 17 |
| Solder pin length | 3 mm |
| Stripping length | 6 mm |
| Pitch in mm | 5 mm |
| Clamping range min | 0.2 mm² |
| Clamping range max | 2.5 mm² |
