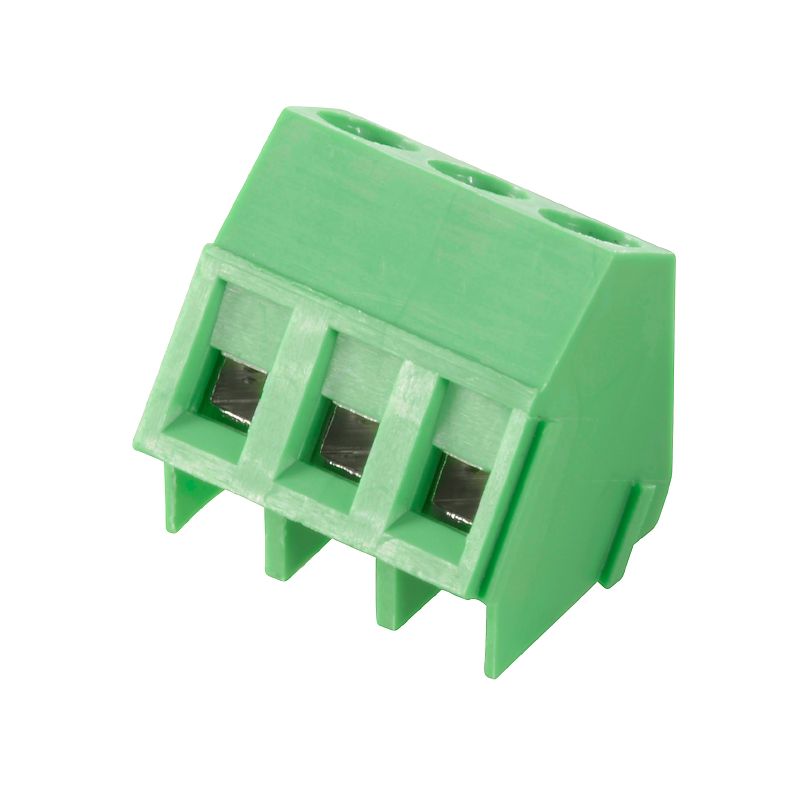

2651140000 - 135° Terminal Block for 0.2-2.5 mm² Wire, UL Certified (Pack of 250)
2651140000 - 135° Terminal Block for 0.2-2.5 mm² Wire, UL Certified (Pack of 250)
SKU: SKU: 2651140000 Download PDF
- 2651140000 - 135° Terminal Block for 0.2-2.5 mm² Wire, UL Certified (Pack of 250)
- 2651140000 - 135° Terminal Block for 0.2-2.5 mm² Wire, UL Certified (Pack of 250)
Couldn't load pickup availability
Description:
Introducing the TSS 500/02/135 33SN GN BX, a reliable component designed for efficient wire termination This model meets RoHS regulations and boasts a UL certification, ensuring high standards of safety and performance
It features a clamping yoke connection compatible with a broad range of wire sizes, accommodating from 02 to 25 mm² The unique 135-degree angled conductor outlet is perfect for fitting into tight spaces, making installation hassle-free.
With a maximum voltage rating of 630 V and a current capacity of 20 A, this terminal is engineered for robust applications
Packaged in a box, the component weighs just 3129 grams, guaranteeing both durability and reliability for your engineering projects Choose the TSS 500/02/135 for dependable performance in your next assembly.
Features and Benefits:
•Complies with RoHS requirements.
•Compatible only with OMNIMATE basic products.
•Rated for a wide temperature range of -40 °C to 105 °C.
•Available packaging includes a box.
•Utilizes a clamping screw mechanism for effective connections.

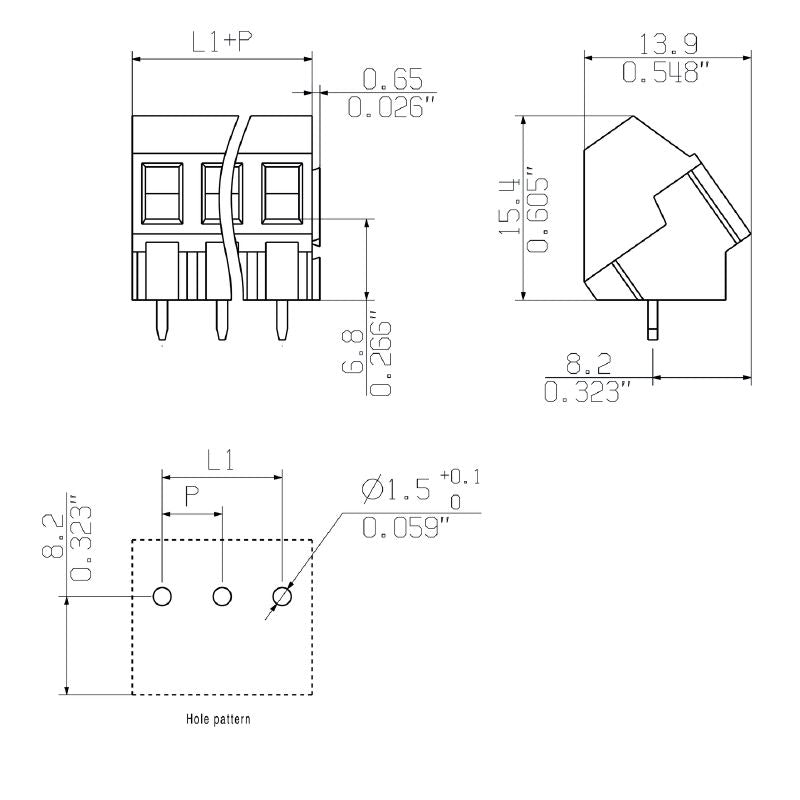

Specifications:
| Rated Voltage (IEC) | 630 V |
| Rated Current (IEC) | 20 A |
| Clamping Range (mm²) | 0.2 - 2.5 |
| Number of Poles | 2 |
| Pitch | 5 mm |
| Insulation Material | PA |
| Protection Degree | IP20 |
| Storage Temperature, min | -40 °C |
| Storage Temperature, max | 70 °C |
| Operating Temperature, max | 105 °C |
| Tightening Torque, min | 0.5 Nm |
| Tightening Torque, max | 0.55 Nm |
| Solder Eyelet Hole Diameter | 1.5 mm |
| Net Weight | 3.129 g |
| UL Voltage Rating | 300 V |
