2651210000 - RoHS Compliant Pale Green Insulator, 5mm Pitch, 20A Capacity (Pack of 63)
2651210000 - RoHS Compliant Pale Green Insulator, 5mm Pitch, 20A Capacity (Pack of 63)
SKU: SKU: 2651210000 Download PDF
- 2651210000 - RoHS Compliant Pale Green Insulator, 5mm Pitch, 20A Capacity (Pack of 63)
- 2651210000 - RoHS Compliant Pale Green Insulator, 5mm Pitch, 20A Capacity (Pack of 63)
Couldn't load pickup availability
Description:

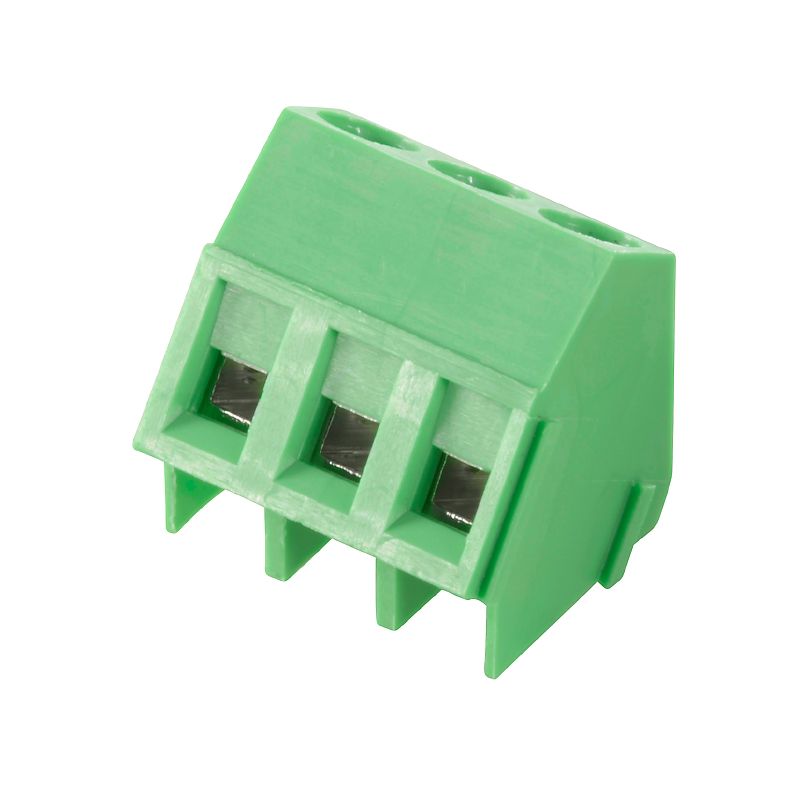

Introducing the TSS 500/09/135 33SN GN BX, a reliable component that meets RoHS standards and boasts a UL file number E60693 This product is compatible with various conductor sizes from 02 to 25 mm², supporting a maximum voltage of 630 V and a current rating of 20 A Crafted from durable PA insulating material, it features an appealing pale green hue
Packaged in an organized box, the device includes a clamping yoke connection for secure wiring.

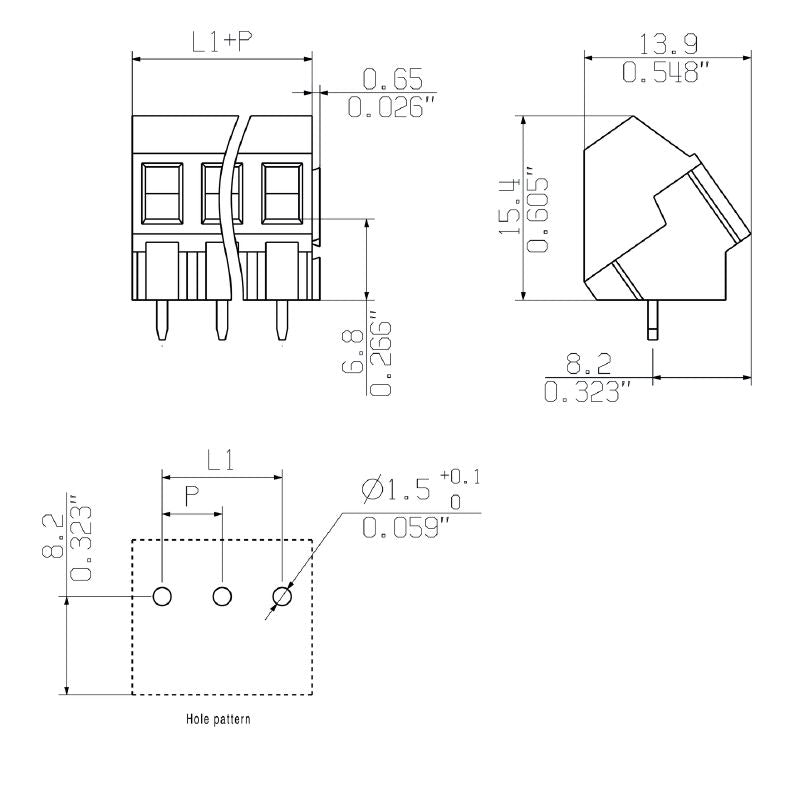

With a compact 5 mm pitch, it is engineered for specific solder pin dimensions Its protection rating of IP20 indicates it is not designed to withstand water exposure, making it ideal for dry environments.
Features and Benefits:
•Compliant with RoHS exemption 6c.
•Constructed with PA material for insulation.
•Features clamping yoke connection for easy installation.
•Pale green color aligns with RAL 6021 standards.
•Offers a maximum storage temperature of 70 °C.
Specifications:
| Rated Voltage | 300 V |
| Rated Current | 20 A |
| Clamping Range (min) | 0.2 mm² |
| Clamping Range (max) | 2.5 mm² |
| Number of Poles | 9 |
| Solder Pin Length | 3.3 mm |
| Tightening Torque (min) | 0.5 Nm |
| Tightening Torque (max) | 0.55 Nm |
| Protection Degree | IP20 |
| Storage Temperature (min) | -40 °C |
| Storage Temperature (max) | 70 °C |
| Operating Temperature (max) | 105 °C |
| Insulating Material | PA |
| UL 94 Flammability Rating | V-0 |
| Contact Material | Cu-alloy |
| Contact Surface | tinned |
| Number of Rows | 1 |
