Description:

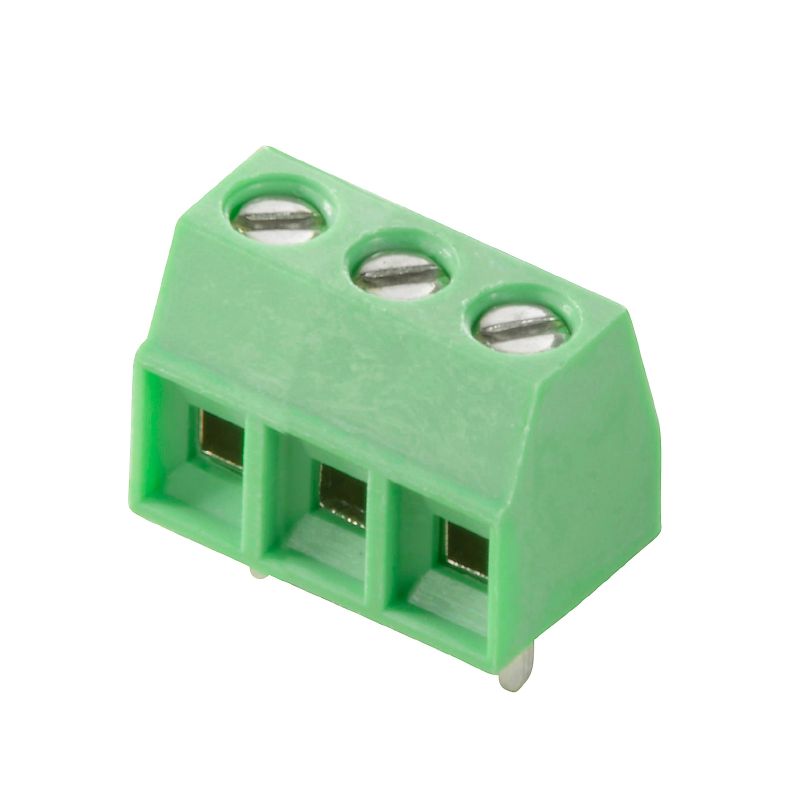

Introducing the TCS 381/06/90 35SN GN BX, a reliable and compliant connector that meets ROHS standards with a UL file number of E60693 This versatile component supports wire sizes ranging from 02 mm² to 15 mm² for IEC applications and from AWG 26 to AWG 16 for UL standards It is capable of handling voltages up to 320 V and currents of 10 A, making it an excellent choice for various electrical projects.
Weighing just 276 g and packaged in a durable box, this product also adheres to environmental compliance regulations like RoHS and REACH, ensuring it is both eco-friendly and efficient for your needs.
Features and Benefits:
•Invented for easy PCB mounting with THT solder connection.
•Clamping yoke connection method allows for secure wire management.
•Includes a protection degree of IP20.
•Features a 90° conductor outlet direction.
•Constructed of PA insulating material that's rated V-0 for flame resistance.
Specifications:
| Rated current | 10 A |
| Rated voltage for surge voltage class II/2 | 320 V |
| Rated voltage for pollution degree II/2 | 250 V |
| Rated voltage for pollution degree III/2 | 160 V |
| Number of poles | 6 |
| Solder pin length | 3.5 mm |
| Insulating material | PA |
| Operating temperature, max | 105 °C |
| Storage temperature, min | -40 °C |
| Storage temperature, max | 70 °C |
| Tightening torque, min | 0.2 Nm |
| Tightening torque, max | 0.23 Nm |
| Pitch in mm | 3.81 mm |
| Screwdriver blade size | 0.4 x 2.5 |
| Clamping range (min) | 0.2 mm² |
| Clamping range (max) | 1.5 mm² |
| Color chart similar | RAL 6021 |
| UL voltage rating | 150 V |
