2651900000 - 5.08mm Pitch Terminal Block with 90° Connection and Clamping Yoke (Pack of 200)
2651900000 - 5.08mm Pitch Terminal Block with 90° Connection and Clamping Yoke (Pack of 200)
SKU: SKU: 2651900000 Download PDF
- 2651900000 - 5.08mm Pitch Terminal Block with 90° Connection and Clamping Yoke (Pack of 200)
- 2651900000 - 5.08mm Pitch Terminal Block with 90° Connection and Clamping Yoke (Pack of 200)
Couldn't load pickup availability
Description:

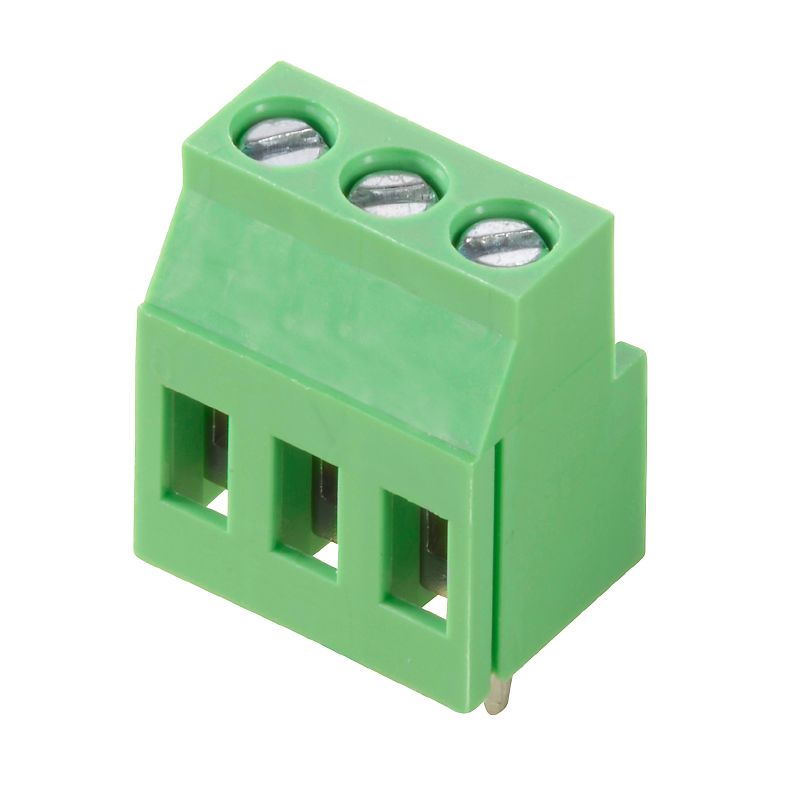

Introducing the TPS 508/02/90 50SN GN BX terminal block, engineered for superior connectivity with its clamping yoke design This reliable component mounts securely onto PCBs utilizing THT solder connections and allows for a conductor outlet orientation of 90 degrees

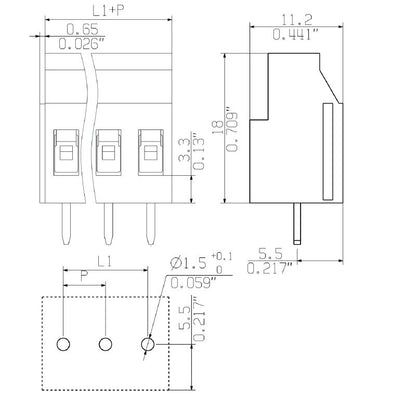

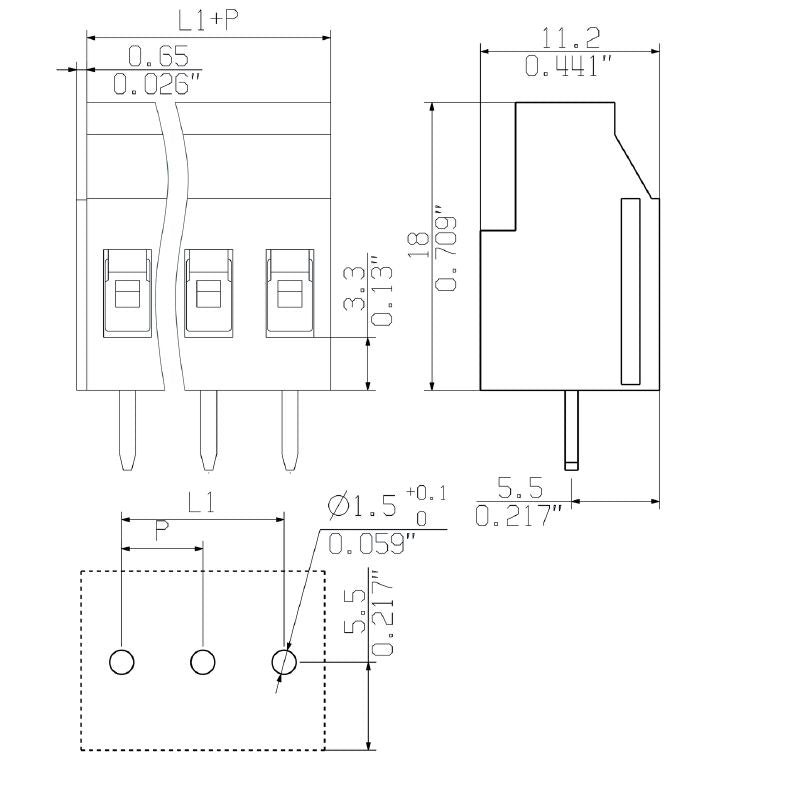

With a compact pitch size of 508 mm, this terminal block supports two poles in a single pin series configuration It features 5 mm long solder pins with dimensions of 0.
8 x 10 mm, and includes a solder eyelet hole with a diameter of 15 mm
For secure operations, the terminal utilizes an M 3 clamping screw, requiring a minimum tightening torque of 05 Nm up to a maximum of 055 Nm It also boasts an IP20 degree of protection and adheres to multiple environmental standards, ensuring its reliability and durability for various applications.
Features and Benefits:
•Clamping yoke connection.
•90° conductor outlet direction.
•Single pin series quantity.
•Solder pin dimensions of 0.8 x 1.0 mm.
•Screwdriver blade dimensions of 0.6 x 3.5 mm.
•Material insulating is made from PA.

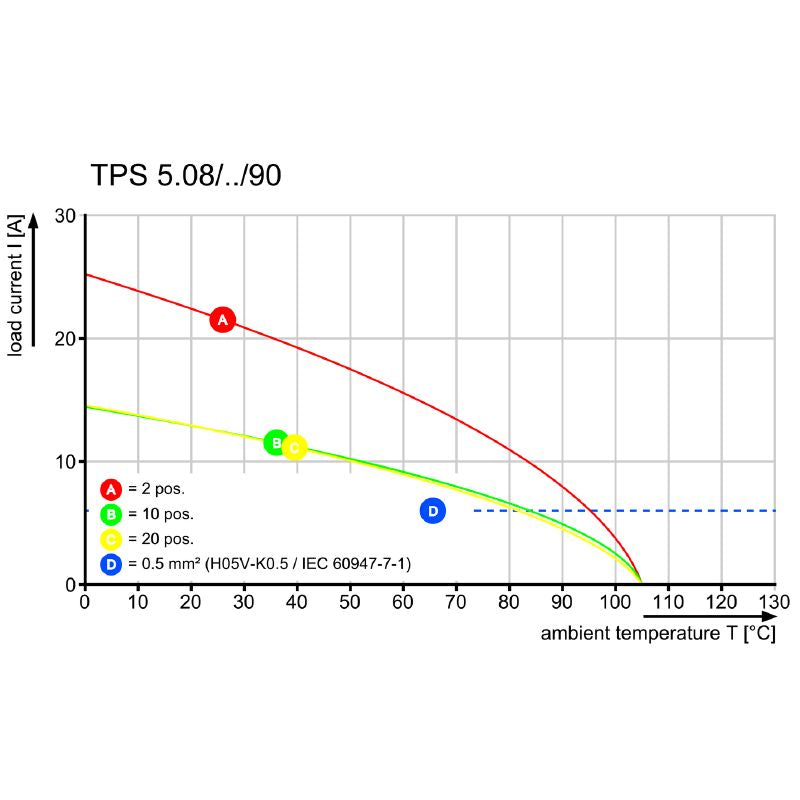

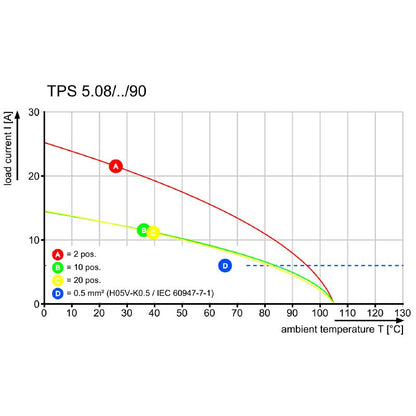

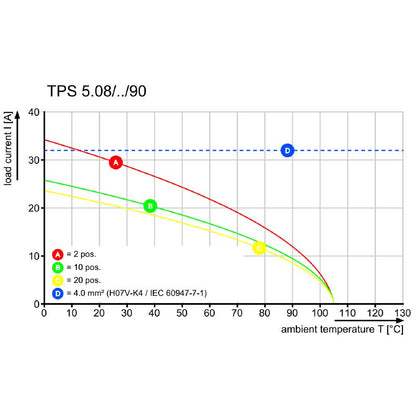

•Rated current of 20 A and a rated voltage of 320 V according to IEC.
Specifications:
| General ordering data | Order No. 2651900000 |
| IEC | 320 V / 20 A / 0.05 - 4 mm² |
| UL | 300 V / 15 A / AWG 30 - AWG 12 |
| Pitch in mm | 5.08 mm |
| Number of poles | 2 |
| Insulating material | PA |
| Color | Pale green |
| UL 94 flammability rating | V-0 |
| Approved according to IEC and UL | E60693 |
| Net weight | 3.9 g |
| Operating temperature, max | 105 °C |
| Storage temperature, min | -40 °C |
| Storage temperature, max | 70 °C |
| Clamping range, min | 0.2 mm² |
| Clamping range, max | 4 mm² |
