2652000000 - 5.08mm 12-Pole PCB Connector with 90° Outlet Direction (Pack of 64)
2652000000 - 5.08mm 12-Pole PCB Connector with 90° Outlet Direction (Pack of 64)
SKU: SKU: 2652000000 Download PDF
- 2652000000 - 5.08mm 12-Pole PCB Connector with 90° Outlet Direction (Pack of 64)
- 2652000000 - 5.08mm 12-Pole PCB Connector with 90° Outlet Direction (Pack of 64)
Couldn't load pickup availability
Description:

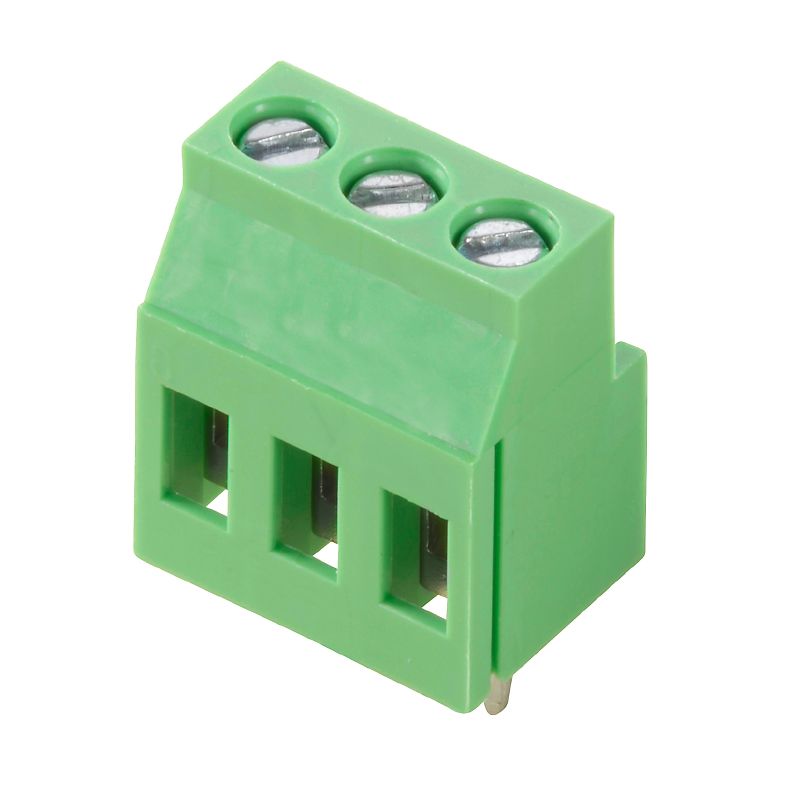

The TPS 508/12/90 50SN GN BX is a versatile component ideal for a range of applications, boasting crucial certifications including RoHS compliance It offers reliable wire connection via a clamping yoke method and is secured onto a PCB through a THT solder connection With a 90° conductor outlet and a pitch of 508 mm, this connector features 12 poles and comes with solder pins that extend 5 mm in length.
Designed for optimal safety, it has a protection level rated at IP20 Constructed from pale green PA insulating material, in line with RAL 6021 standards, it provides durability and reliability The contact material is a copper alloy with a tinned finish, ensuring excellent conductivity and longevity, and the component can withstand temperatures ranging from -40 °C to 70 °C.
Features and Benefits:
•Compliant with RoHS and UL standards.
•Suitable for a cable cross section from 0.05 mm² to 4 mm².
•Clamping yoke connection method for easy wire connections.
•Operating temperatures range from -40 °C to 105 °C.
•Protection degree of IP20.
Specifications:
| IEC Voltage Rating | 320 V |
| IEC Current Rating | 20 A |
| Clamping Range | 0.2 mm² to 4 mm² |
| Rated Voltage (UL) | 300 V |
| Rated Current (UL) | 15 A |
| Number of Poles | 12 |

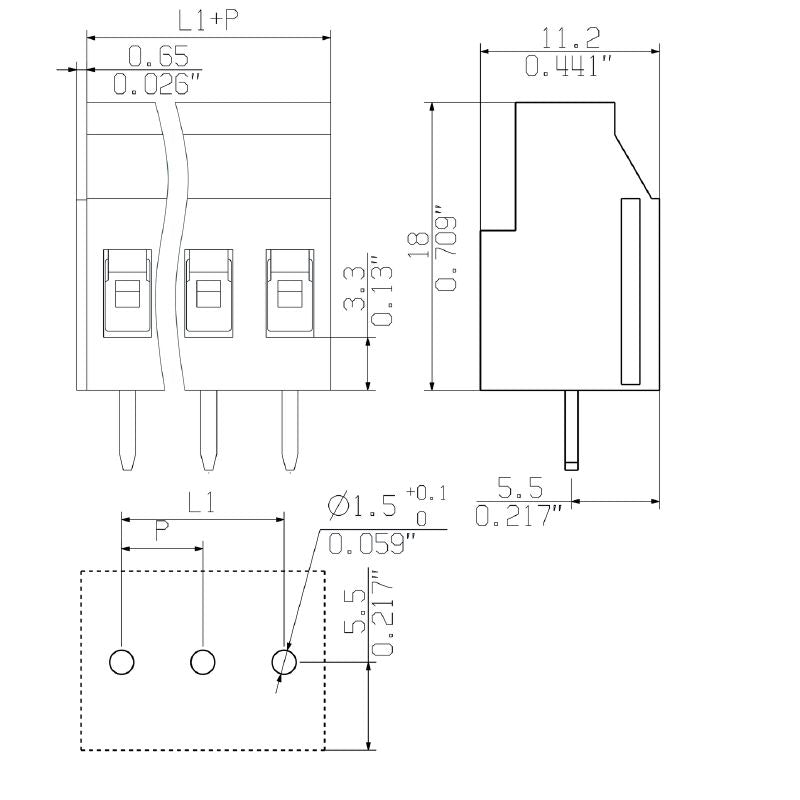

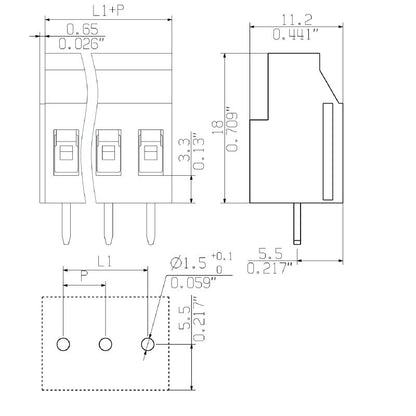

| Pitch | 5.08 mm |
| Solder Eyelet Hole Diameter | 1.5 mm |
| Screwdriver Blade Dimensions | 0.6 x 3.5 |
| Stripping Length | 8.5 mm |
| UL 94 Flammability Rating | V-0 |
| Storage Temperature Range | -40 °C to 70 °C |
