Description:

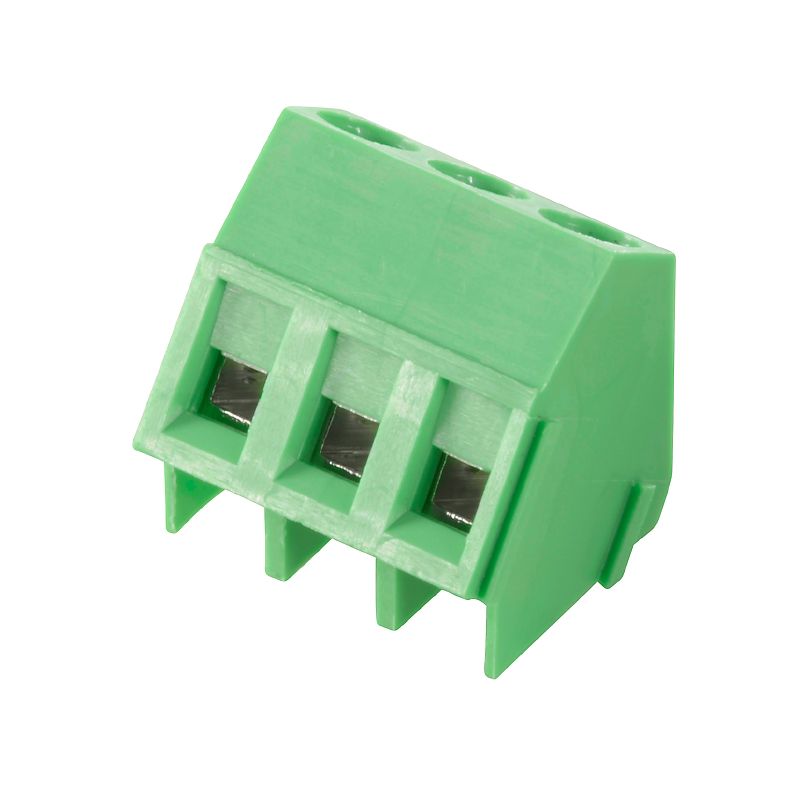

Introducing the TSS 500/06/135 33SN GN BX terminal block, a versatile solution for a range of applications This component features a dependable clamping yoke connection method, ensuring secure electrical connectivity Designed with a conductor outlet angled at 135°, it is presented in an attractive pale green color Additionally, this terminal block meets RoHS standards, making it ideal for environments necessitating strong and reliable connections.
Each unit comes neatly packaged in a box for easy storage and handling.
Features and Benefits:
•Clamping yoke connection.
•THT solder connection for PCB mounting.
•IP20 protection degree.
•Insulating material is PA.
•UL 94 flammability rating of V-0.
•Compatible with OMNIMATE basic products.
Specifications:
| Voltage (IEC) | 630 V |
| Current | 20 A |
| Clamping range (min) | 0.2 mm² |
| Clamping range (max) | 2.5 mm² |
| Pitch | 5 mm |
| Number of poles | 6 |
| Solder pin length | 3.3 mm |
| Screwdriver blade | 0.6 x 3.5 |
| Tightening torque (min) | 0.5 Nm |
| Tightening torque (max) | 0.55 Nm |
| Storage temperature (min) | -40 °C |
| Storage temperature (max) | 70 °C |
| Operating temperature (max) | 105 °C |
