Description:

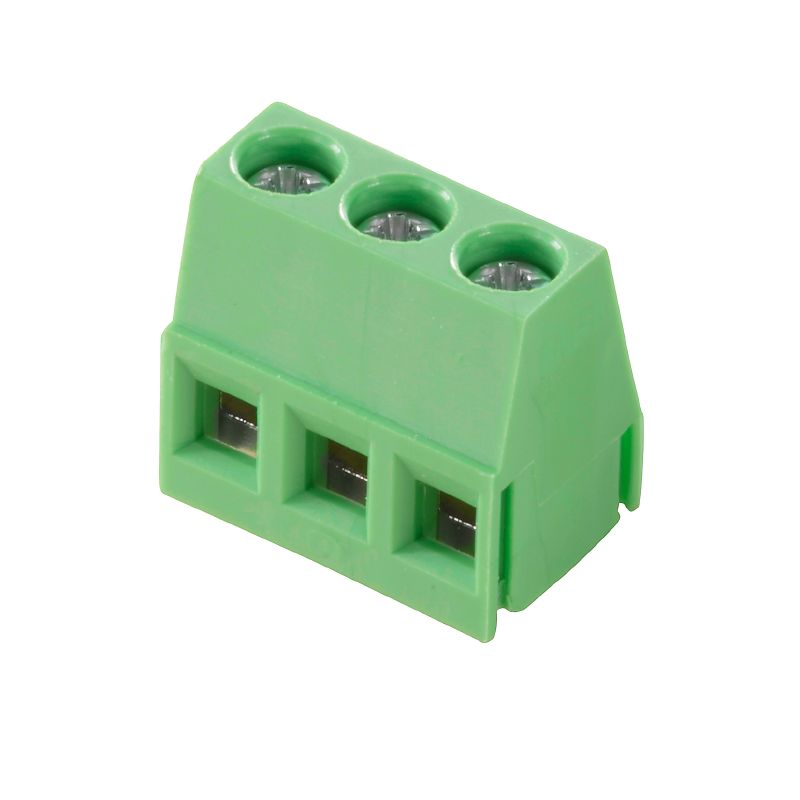

Introducing the TMS 500/16/90 30SN GN BX, a certified component engineered for optimal performance with secure electrical connections This versatile product accommodates multiple wire connection types and supports a variety of conductor sizes, ensuring reliable functionality under designated conditions Whether for professional or personal use, it promises consistent and sturdy performance.
Features and Benefits:
•Designed for a variety of wire connection methods.
•Compatible with clamping yoke connections.
•Simple mounting through THT solder connection.
•Offers a minimum tightening torque for secure connections.
•Insulating material made of PA.
•Pale green color resembling RAL 6021.
•Meets environmental compliance with RoHS standards.
Specifications:
| Rated voltage (IEC) | 320 V |
| Rated current (IEC) | 15 A |
| Conductor outlet direction | 90° |
| Number of poles | 16 |
| Pin series quantity | 1 |
| Solder pin length | 3 mm |
| Pitch | 5 mm |
| Protection degree | IP20 |
| Insulating material group | I |
| UL voltage rating | 300 V |
| Operating temperature, max | 105 °C |
| Storage temperature, min | -40 °C |
| Storage temperature, max | 70 °C |
