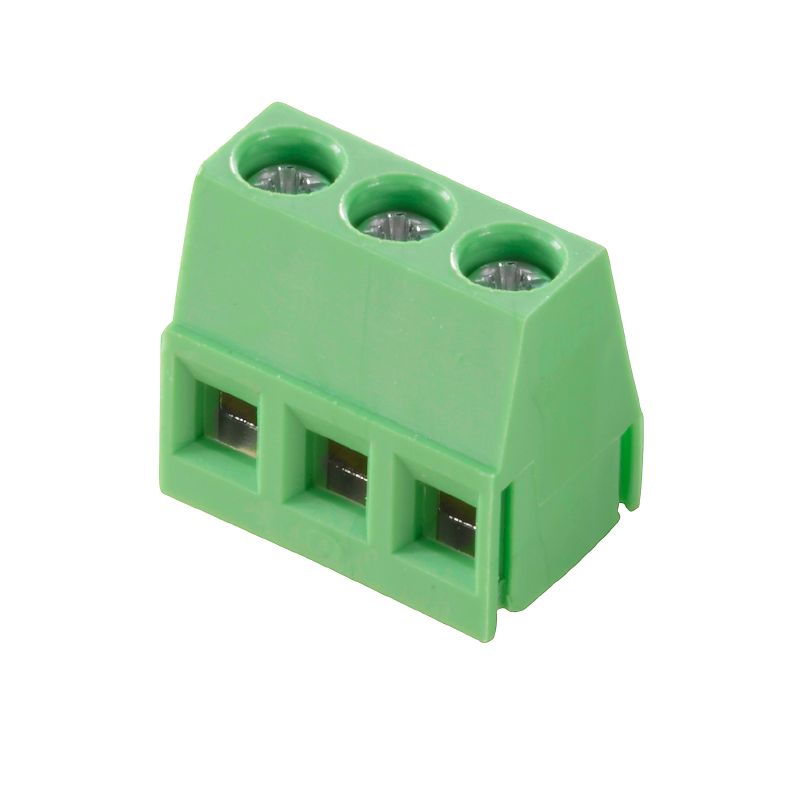

2651060000 - PCB Connection Component with Clamping Yoke, 0.2-2.5mm² (Pack of 64)
2651060000 - PCB Connection Component with Clamping Yoke, 0.2-2.5mm² (Pack of 64)
SKU: SKU: 2651060000 Download PDF
- 2651060000 - PCB Connection Component with Clamping Yoke, 0.2-2.5mm² (Pack of 64)
- 2651060000 - PCB Connection Component with Clamping Yoke, 0.2-2.5mm² (Pack of 64)
Couldn't load pickup availability
Description:
Introducing the TMS 500/13/90 30SN GN BX, an exceptional component engineered for PCB (Printed Circuit Board) connections This model utilizes a clamping yoke connection mechanism, allowing for reliable and secure wire connections It supports wire sizes from 02 mm² up to 25 mm², making it versatile for various applications

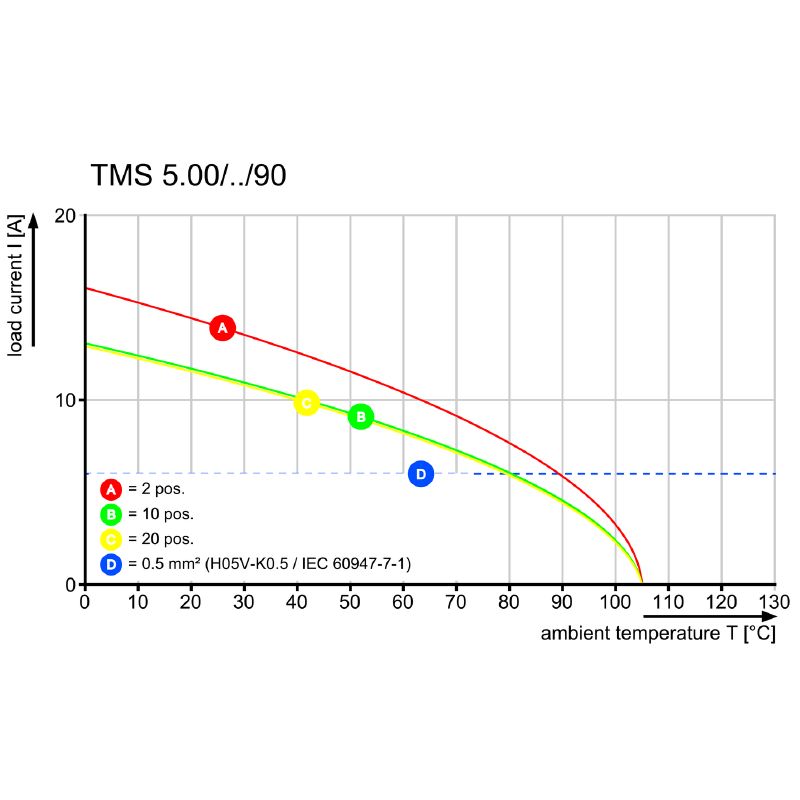

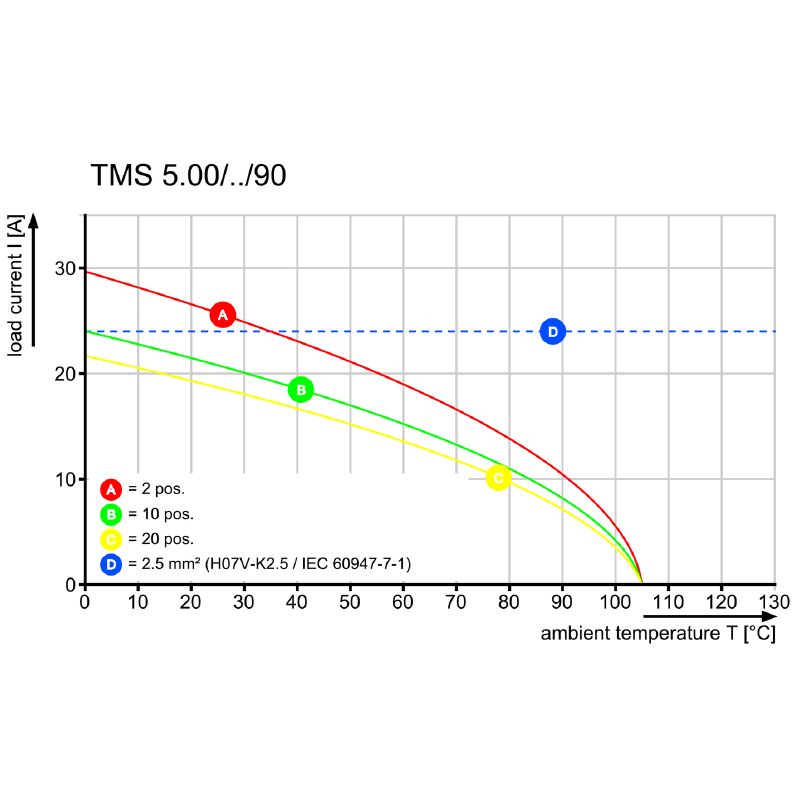

With RoHS compliance, this component meets environmental standards and is suited for a wide temperature range, functioning effectively at temperatures up to 105 °C and enduring storage conditions as low as -40 °C.
Each unit is thoughtfully packaged in a box and has a lightweight design, weighing just 1339 grams Perfect for your PCB needs, it combines performance with compliance in one reliable product.
Features and Benefits:
•Clamping yoke connection for secure wiring.
•Compatible with OMNIMATE basic products.
•Designed for a pitch of 5 mm.

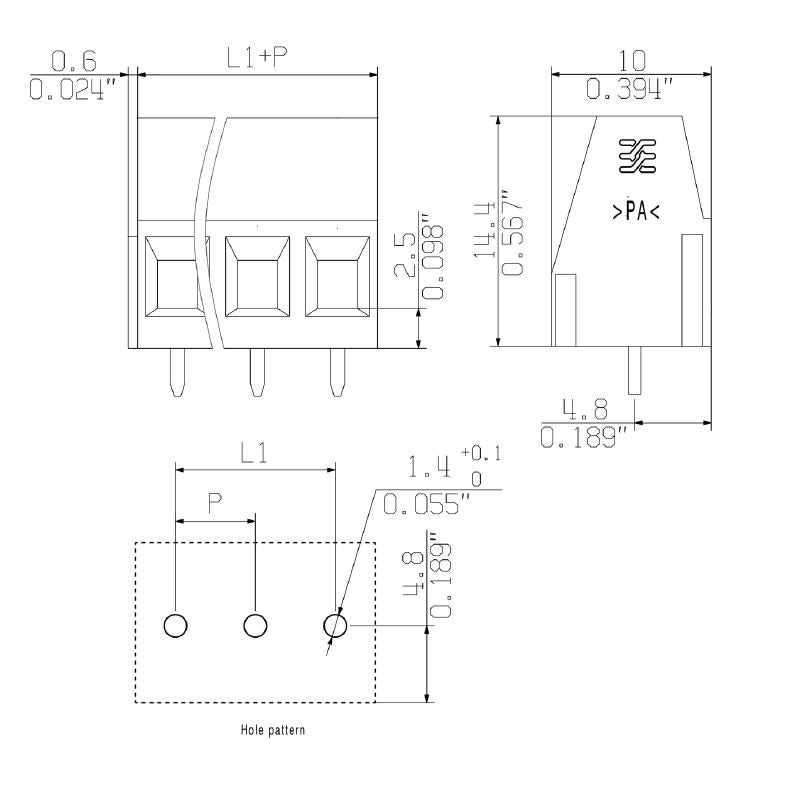

•Compact dimensions suitable for PCB integration.
Specifications:
| Rated voltage (IEC) | 320 V |
| Rated current (IEC) | 15 A |
| Wire connection method | Clamping yoke connection |
| Conductor outlet direction | 90° |
| Number of poles | 13 |
| Protection degree | IP20 |
| Insulating material | PA |
| UL voltage rating | 300 V |
| Solder pin length | 3 mm |
| Tightening torque, min. | 0.5 Nm |
| Tightening torque, max. | 0.55 Nm |
| Storage temperature, max. | 70 °C |
| UL 94 flammability rating | V-0 |
