2651300000 - ROHS Certified 135° Electrical Connector, 20A, IP20 Protection (Pack of 30)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

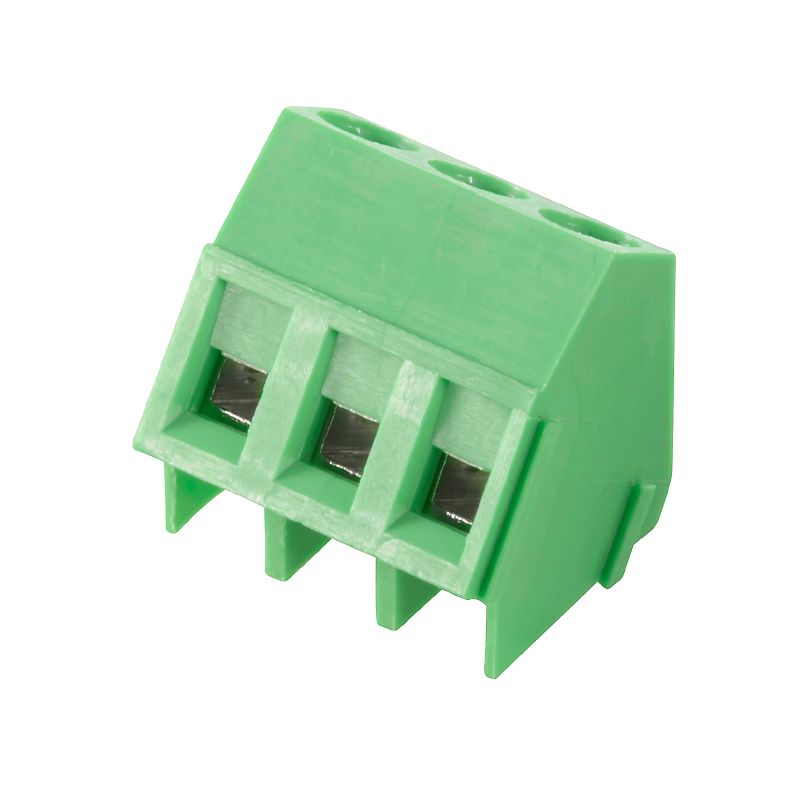

Introducing the TSS 500/18/135 33SN GN BX, a versatile component crafted for an array of electrical applications Complying with ROHS standards and bearing UL certification (Certificate No E60693), this product is both reliable and efficient Weighing in at 432 grams, it comes securely packaged in a box This component supports a maximum voltage of 630 V and is rated for a current of 20 A, accommodating wire cross-sections between 0.

2 and 25 mm² (AWG 30 to AWG 12) It features a clamping yoke connection for easy wire attachment, along with a 135° outlet direction for optimal installation With an IP20 protection rating, it’s crafted from a pale green insulating material that meets stringent flammability requirements The operating conditions are well-suited for diverse environments, with a storage temperature range of -40°C to 70°C and an impressive operating temperature limit of up to 105°C.

Features and Benefits:

•Meets ROHS compliance with exemption.

•Suitable for long-term storage at high temperatures and humidity.

•Only compatible with OMNIMATE basic products.

•Available in a box for packaging.

Specifications:
