Description:
Experience reliability with this product that meets RoHS standards and has been certified by UL, certificate number E60693 With a voltage rating of 320 V and a current rating of 20 A, it accommodates wire sizes from 005 to 4 mm² Under UL specifications, it supports up to 300 V and 15 A for wire gauges from AWG 30 to AWG 12
This item is part of the OMNIMATE basic series and comes in boxes of 72 units.

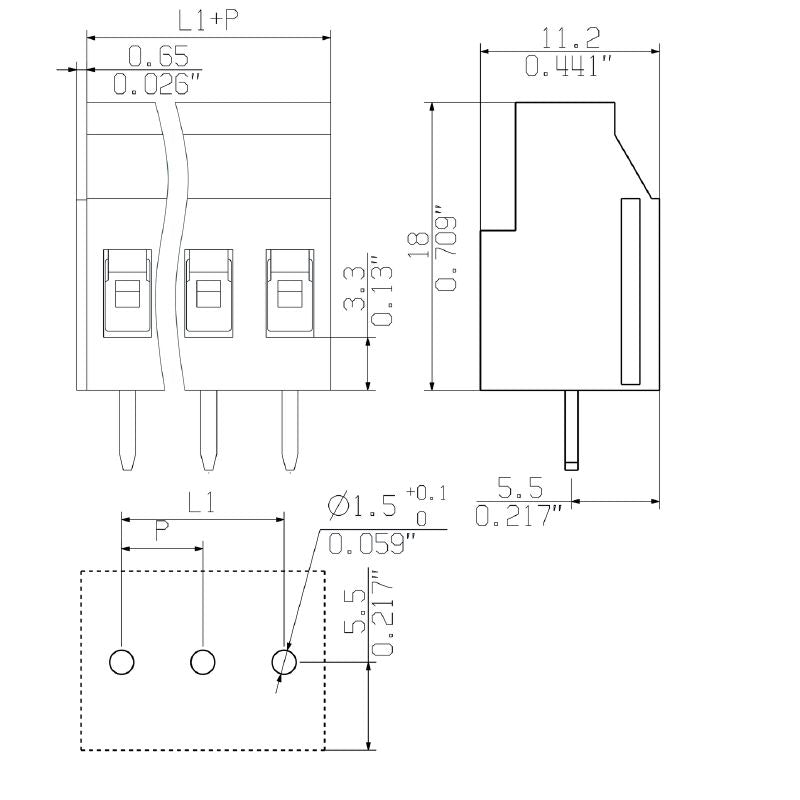

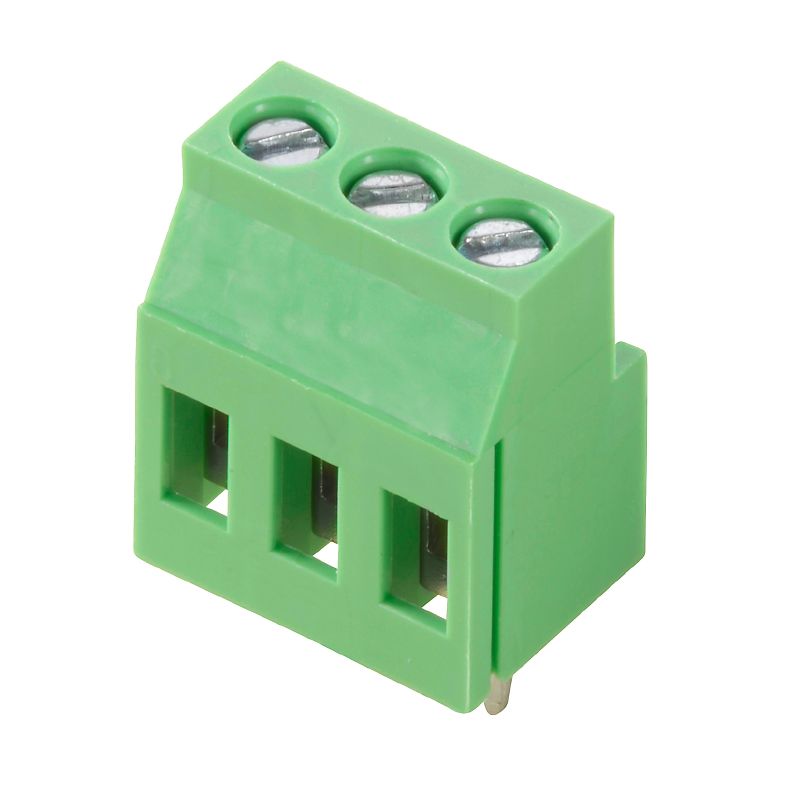

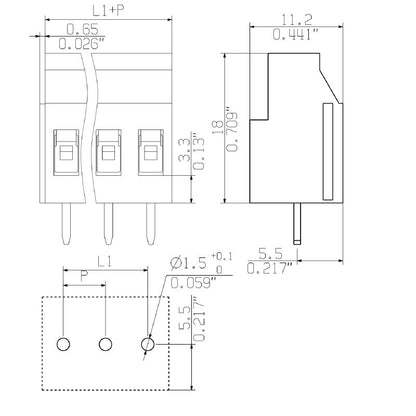

It features a clamping yoke connection and employs a THT solder connection method for secure mounting The right-angle conductor outlet boasts a pitch of 508 mm Crafted from PA insulating material, this product showcases a pale green hue that adheres to RAL 6021 standards and has a UL 94 flammability rating of V-0 for enhanced safety.
Features and Benefits:
•Net weight of 17.55 g.
•Approved for various wire sizes including 0.2 mm² to 4 mm².
•Rated for operational conditions from -40°C to 105°C.
•Compatible exclusively with OMNIMATE basic products.
Specifications:
| Rated current, min. number of poles (Tu=20°C) | 20 A |
| Rated voltage (Use group B / UL 1059) | 300 V |
| Rated voltage (Use group D / UL 1059) | 300 V |
| Wire cross-section, AWG, min. | AWG 30 |
| Wire cross-section, AWG, max. | AWG 12 |
| Pin series quantity | 1 |
| Number of poles | 9 |
| Number of rows | 1 |
| Protection degree | IP20 |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 70 °C |
| Tightening torque, min. | 0.5 Nm |
| Tightening torque, max. | 0.55 Nm |
| Solder pin length (l) | 5 mm |
