2651400000 - 5.08mm Pitch Electrical Connector, 90° Outlet, 15A Rating (Pack of 96)
2651400000 - 5.08mm Pitch Electrical Connector, 90° Outlet, 15A Rating (Pack of 96)
SKU: SKU: 2651400000 Download PDF
- 2651400000 - 5.08mm Pitch Electrical Connector, 90° Outlet, 15A Rating (Pack of 96)
- 2651400000 - 5.08mm Pitch Electrical Connector, 90° Outlet, 15A Rating (Pack of 96)
Couldn't load pickup availability
Description:

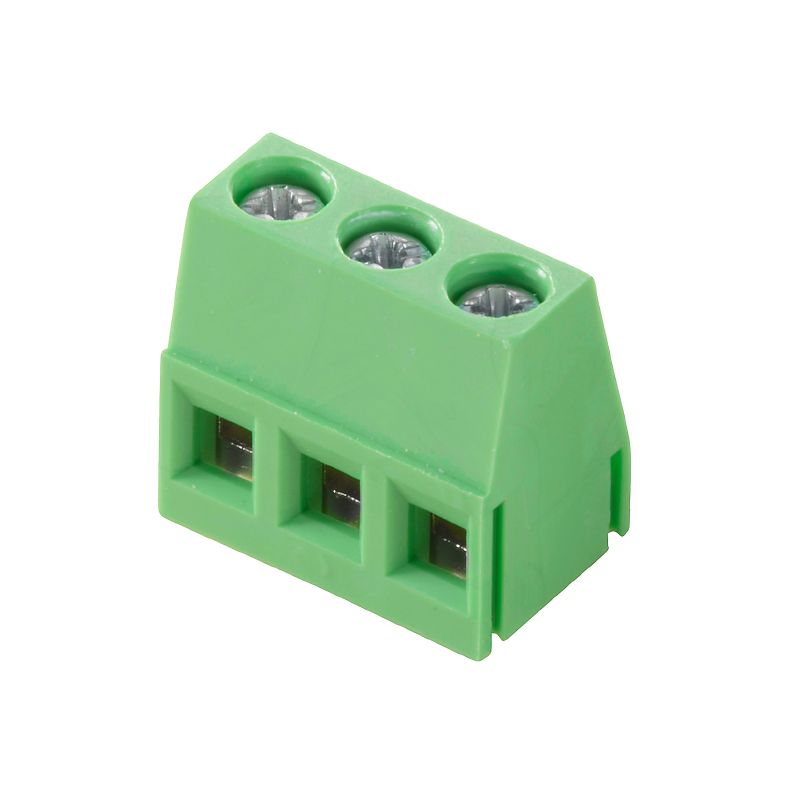

Introducing the TMS 508/09/90 30SN GN BX connector, engineered for reliable electrical connections This component features a clamping yoke connection method for easy THT soldering on printed circuit boards Designed with a 90° conductor outlet direction and a 508 mm pitch, it is versatile enough to handle conductor sizes ranging from 02 mm² to 25 mm² With a rated current capacity of 15 A and adhering to IEC standards, it provides a maximum rated voltage of 320 V, and 300 V for UL certifications.
Furthermore, this connector meets RoHS compliance for environmentally friendly use.
Features and Benefits:
•Clamping yoke connection for reliable connectivity.
•Suitable for conductors with cross-sections between 0.2 mm² and 2.5 mm².
•90° conductor outlet direction provides space-saving advantages.
•Insulating material conforms to UL 94 V-0 flammability rating.
•Compatible with OMNIMATE basic products.
Specifications:
| Rated current (IEC) | 15 A |
| Rated voltage (IEC) | 320 V |
| Number of poles | 9 |
| Pitch in mm | 5.08 mm |
| Mounting method | THT solder connection |
| Solder pin length | 3 mm |
| Protection degree | IP20 |
| Weight | 9.27 g |
| Storage temperature | -40 °C to 70 °C |
| Operating temperature max | 105 °C |
| Insulating material | PA |
