Description:

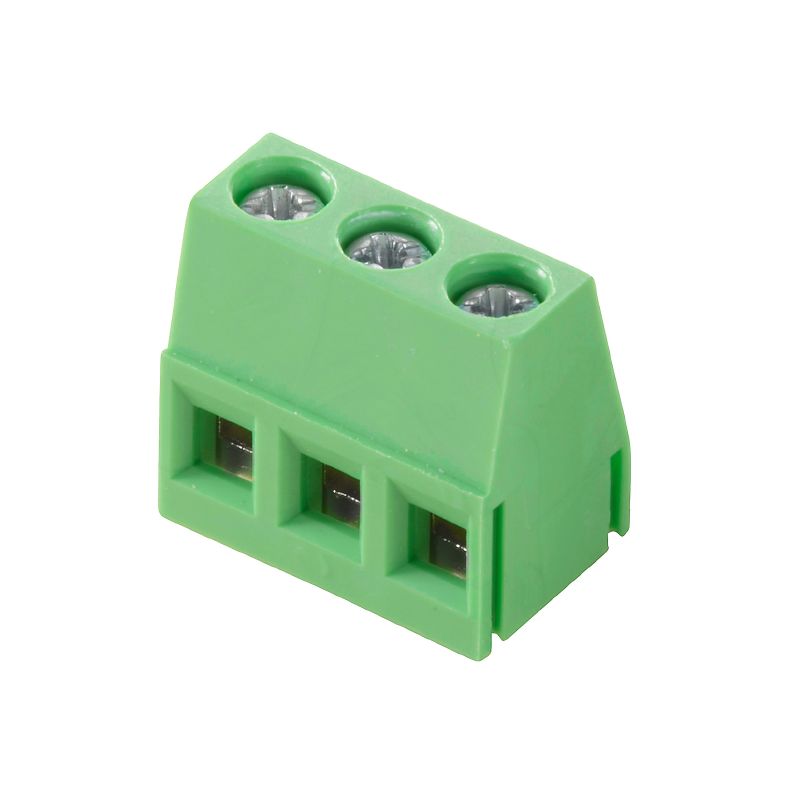

Introducing the TMS 508/05/90 30SN GN BX, a versatile component tailored for a wide range of applications while adhering to essential electrical standards This connector supports a rated voltage of 320 V and a current capacity of 15 A, accommodating wire sizes from 02 to 25 mm² It is compliant with RoHS directives and meets applicable UL standards, guaranteeing safety and reliability The design includes a clamping yoke connection, ensuring a robust attachment to printed circuit boards via THT soldering.
With its 90° conductor outlet and a pitch of 508 mm, this connector provides the flexibility needed for various wiring solutions.
Features and Benefits:
•Clamping range is suitable for a variety of wire sizes from 0.2 mm² to 2.5 mm².
•Compact design with only 5 poles.
•IP20 protection degree for safeguarding against dust.
•Constructed from PA insulating material with a flammability rating of V-0.
Specifications:
| Order No. | 2651360000 |
| IEC Rated Voltage | 320 V |
| IEC Rated Current | 15 A |
| UL Rated Voltage | 300 V |
| UL Rated Current | 15 A |
| Number of poles | 5 |
| Pitch | 5.08 mm |
| Pin length | 3 mm |
| Protection degree | IP20 |
| Storage temperature | -40 °C to 70 °C |
| Operating temperature | max 105 °C |
| Insulating material | PA |
| Contact material | Copper alloy |
| Weight | 5.15 g |
