2651510000 - 5.08mm Clamping Connection Terminal, 0.2-2.5mm², RoHS/UL Compliant (Pack of 40)
2651510000 - 5.08mm Clamping Connection Terminal, 0.2-2.5mm², RoHS/UL Compliant (Pack of 40)
SKU: SKU: 2651510000 Download PDF
- 2651510000 - 5.08mm Clamping Connection Terminal, 0.2-2.5mm², RoHS/UL Compliant (Pack of 40)
- 2651510000 - 5.08mm Clamping Connection Terminal, 0.2-2.5mm², RoHS/UL Compliant (Pack of 40)
Couldn't load pickup availability
Description:

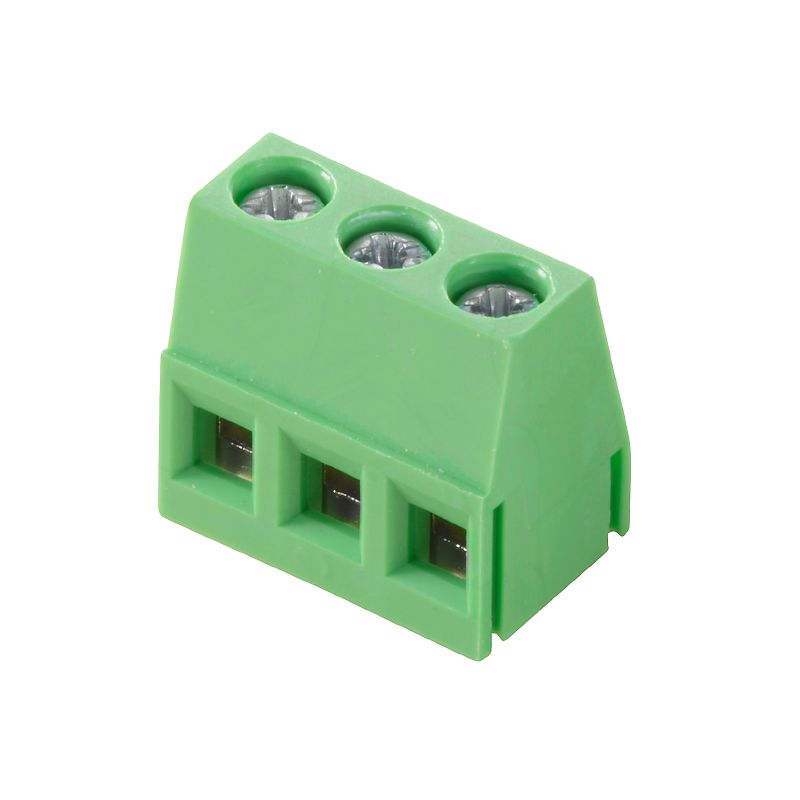

Introducing the TMS 508/20/90 30SN GN BX connector, engineered to meet stringent RoHS and UL safety requirements This reliable component is designed for wire connections utilizing a clamping yoke system, accommodating conductor sizes from 02 mm² to 25 mm² With a 508 mm pitch, it boasts a sturdy design capable of withstanding operating temperatures up to 105 °C Environmentally compliant, it weighs just 20.
6 g and is equipped with multiple technical ratings tailored for various applications.
Features and Benefits:
•Meets RoHS compliance with exemption.
•Compliant environmental product.
•Insulating material made of PA.
•Tightening torque specification between 0.5 Nm and 0.55 Nm.
•Designed for THT solder connection.
Specifications:
| Rated Voltage (IEC) | 320 V |
| Rated Current (IEC) | 15 A |
| Conductor Outlet Direction | 90° |
| Number of Poles | 20 |
| Pin Series Quantity | 1 |
| Number of Rows | 1 |
| Solder Pin Length | 3 mm |
| Solder Pin Dimensions | 0.7 x 0.9mm |
| Clamping Range (min) | 0.2 mm² |
| Clamping Range (max) | 2.5 mm² |
| Screwdriver Blade | 0.6 x 3.5 |
| Protection Degree | IP20 |
| Insulating Material Group | I |
| UL 94 Flammability Rating | V-0 |
