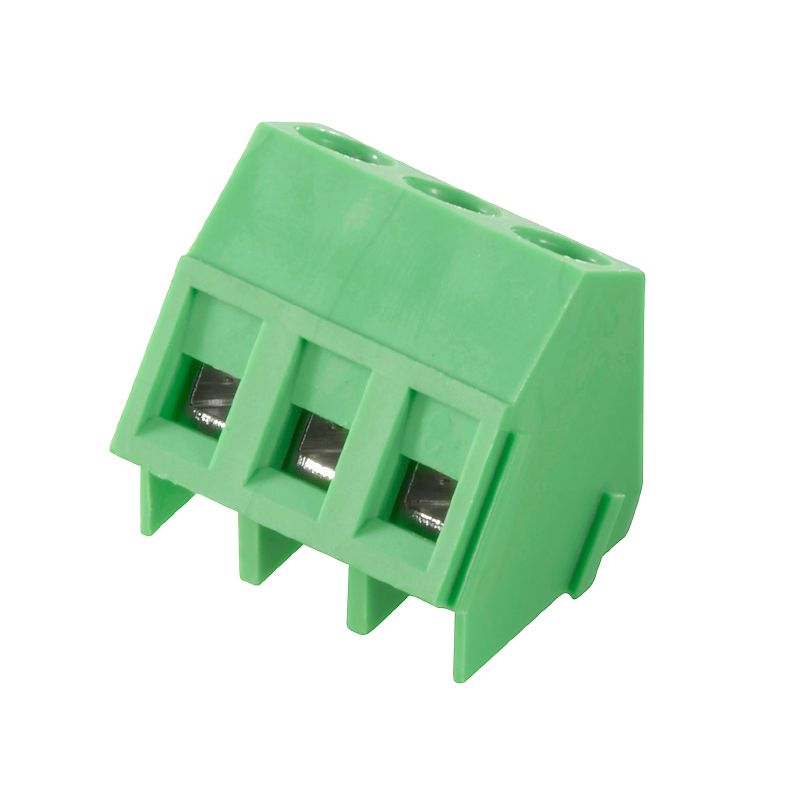

2651520000 - 5.08mm Terminal Block, 20A, 135° Outlet, OMNIMATE (Pack of 250)

Description:

Discover the TSS 508/02/135 33SN GN BX terminal block, expertly crafted for electronic applications With a voltage rating of 630 V and a current capacity of 20 A per IEC standards, as well as a maximum rating of 300 V and 20 A according to UL standards, this terminal block ensures reliable performance It supports conductor cross-sections from 02 to 25 mm² or AWG 30 to AWG 12, making it versatile for various wiring needs.

Part of the OMNIMATE family, it features a clamping yoke connection and a THT solder connection for effortless PCB mounting The compact design boasts a pitch of 508 mm and a conductor outlet angle of 135°, enhancing its usability Weighing in at just 3094 g, this product comes conveniently packaged in a box, and its compliance with RoHS and REACH regulations underscores its environmental safety.

Features and Benefits:

•Compliant with exemption under RoHS regulations.

•Available with different conductor clamping ranges.

•Insulating material rated for high flammability standards.

•Compatible with OMNIMATE basic product range.

Specifications:
