2651150000 - 3-Pole Clamping Yoke, 135° Outlet, PA Insulating Material (Pack of 150)
2651150000 - 3-Pole Clamping Yoke, 135° Outlet, PA Insulating Material (Pack of 150)
SKU: SKU: 2651150000 Download PDF
- 2651150000 - 3-Pole Clamping Yoke, 135° Outlet, PA Insulating Material (Pack of 150)
- 2651150000 - 3-Pole Clamping Yoke, 135° Outlet, PA Insulating Material (Pack of 150)
Couldn't load pickup availability
Description:

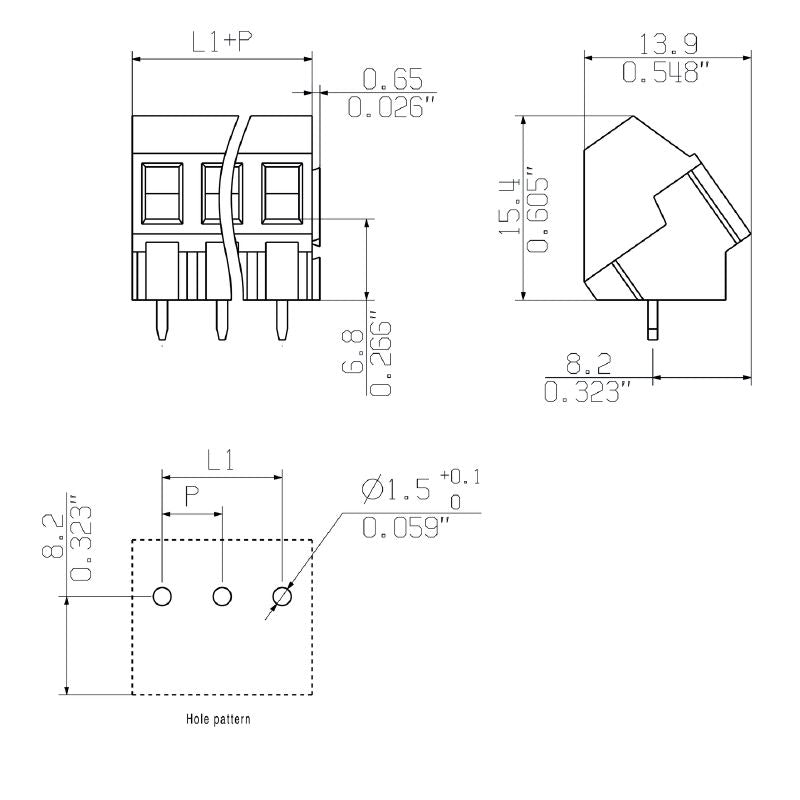

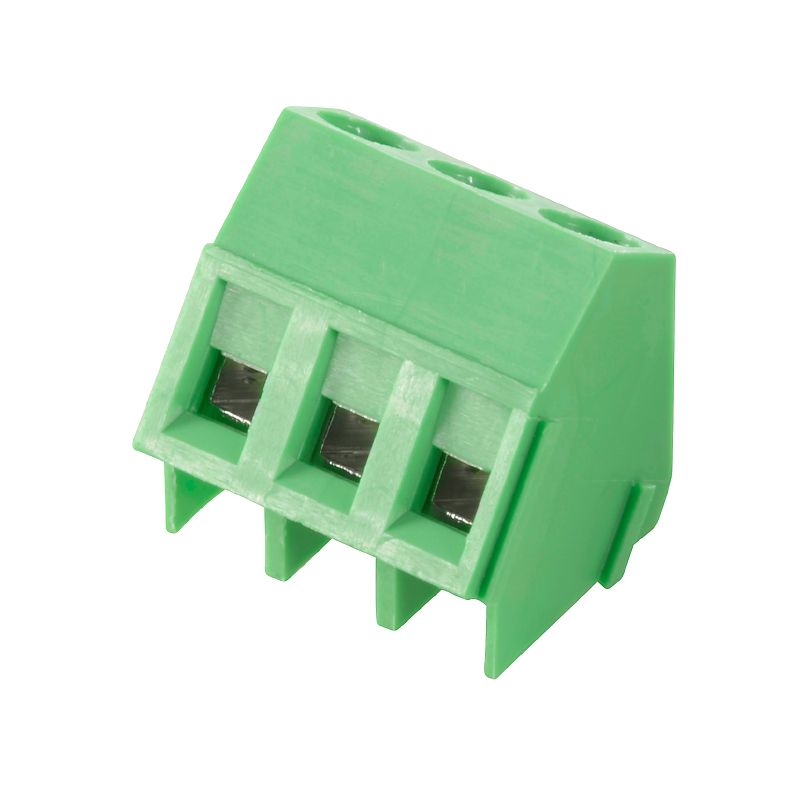

Introducing the TSS 500/03/135 33SN GN BX clamping yoke connection, designed for straightforward installation on PCBs through THT soldering This component boasts a 135° angle for the conductor outlet and features a 5 mm pitch, supporting three poles with a single pin arrangement With a solder pin length of 33 mm, its dimensions are versatile enough for various wire connections Crafted from durable PA insulating material, this product showcases a subtle pale green hue defined by RAL 6021.
Additionally, it complies with RoHS and REACH regulations and meets rigorous testing standards for reliability.
Features and Benefits:
•Clamping yoke connection method.
•Suitable for solid and flexible conductors within specified ranges.
•High thermal resistance with an operating temperature of up to 105 °C.
•IP20 protection degree.
Specifications:
| Order No. | 2651150000 |
| IEC Voltage Rating | 630 V |
| IEC Current Rating | 20 A |
| Wire Connection Range | 0.2 - 2.5 mm² |
| UL Voltage Rating | 300 V |
| UL Current Rating | 20 A |
| Pitch in mm | 5 mm |
| Number of Poles | 3 |
| Solder Eyelet Hole Diameter | 1.5 mm |
| Tightening Torque, min | 0.5 Nm |
| Tightening Torque, max | 0.55 Nm |
| Stripping Length | 7.5 mm |
| Storage Temperature, min | -40 °C |
| Storage Temperature, max | 70 °C |
| Color | Pale green |
| Insulating Material | PA |
| UL 94 Flammability Rating | V-0 |
