2651230000 - 11-Pole PA Connector, 5mm Pitch, RoHS Certified, THT Soldering (Pack of 54)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

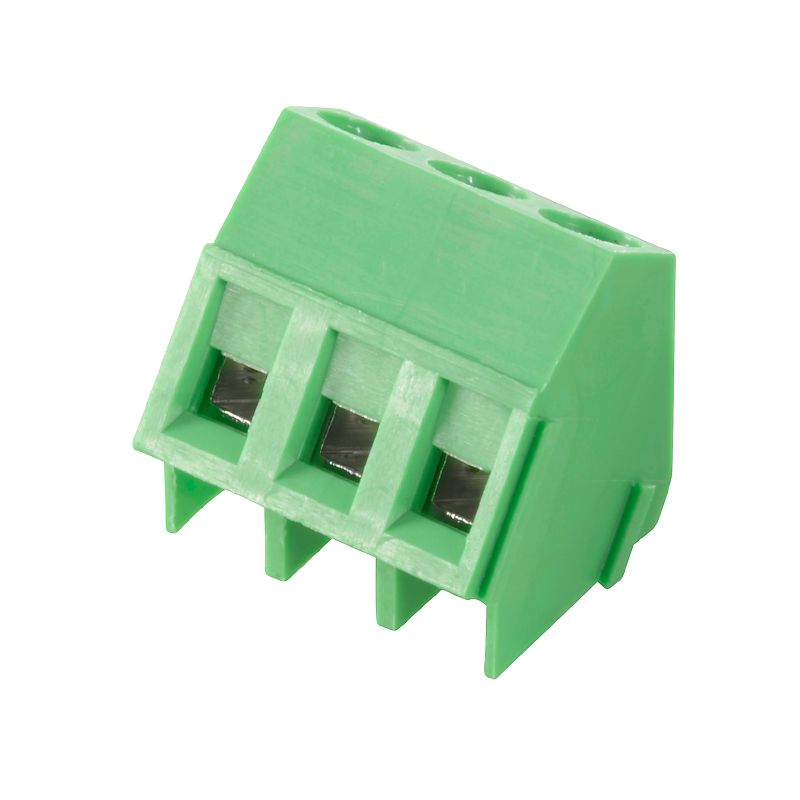

Introducing the TSS 500/11/135 33SN GN BX, an expertly engineered connector aimed at delivering reliable connectivity This product meets RoHS standards and bears UL certification (E60693), showcasing its compliance with safety regulations It is versatile in accommodating various wire types through a clamping yoke connection and can be securely mounted on PCBs via THT soldering Designed for optimal performance, it operates effectively in temperatures up to 105 °C and can be stored in environments as cold as -40 °C.

The connector features a 5 mm pitch, supports up to 11 poles, and includes a solder pin length of 33 mm Its insulator is produced from high-quality PA material in a soothing pale green hue, classified as RAL 6021 With impressive electrical specifications, it supports a rated voltage of 630 V and handles a rated current of 20 A, making it a robust choice for various applications.

Features and Benefits:

•Pale green color conforming to RAL 6021.

•Clamping yoke connection method.

•Mounts directly on the PCB using THT solder connection.

•Protection degree IP20.

•UL 94 flammability rating of V-0.

•RoHS compliant with exemptions.

•Approvals include cURus certification.

Specifications:
