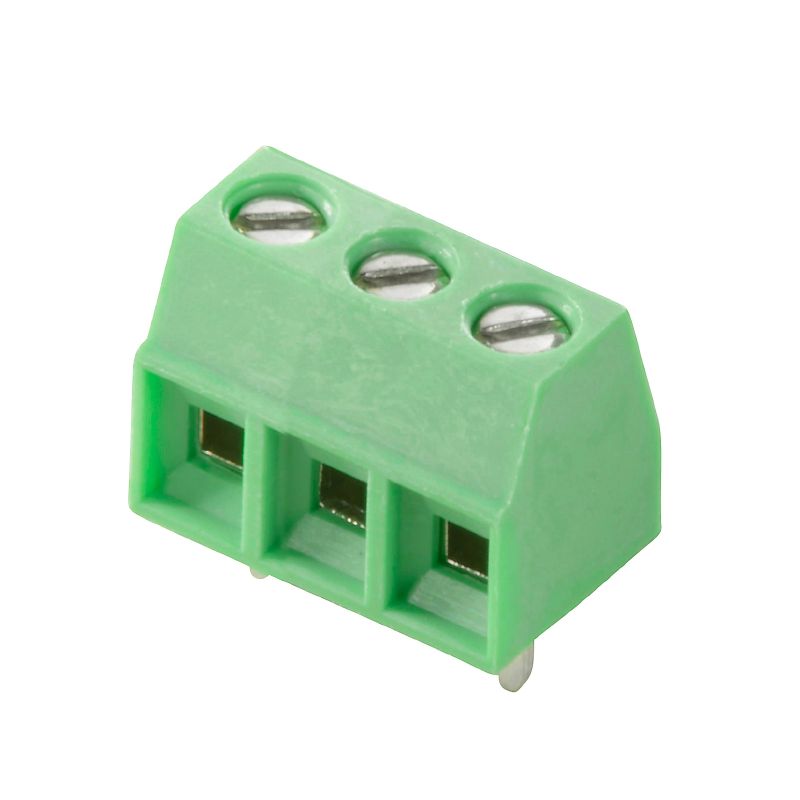

2650480000 - 90° PCB Terminal Block, RoHS Compliant, 3.22g (Pack of 256)
2650480000 - 90° PCB Terminal Block, RoHS Compliant, 3.22g (Pack of 256)
SKU: SKU: 2650480000 Download PDF
- 2650480000 - 90° PCB Terminal Block, RoHS Compliant, 3.22g (Pack of 256)
- 2650480000 - 90° PCB Terminal Block, RoHS Compliant, 3.22g (Pack of 256)
Couldn't load pickup availability
Description:
Introducing the TCS 381/07/90 35SN GN BX, a versatile component tailored for a wide array of electrical connections Compliant with RoHS standards and exempt regulations, this terminal block is a reliable choice for your projects Each unit is conveniently packaged in boxes and has a lightweight of just 322 grams
Engineered for PCB solder connections, it showcases a practical clamping yoke connection with a conductor outlet angled at 90 degrees.
This terminal block accommodates various wire sizes and can operate effectively in temperatures ranging from -40°C to 105°C, making it suitable for diverse applications.
Features and Benefits:
•Compliant with RoHS with exemption.
•Weights 3.22g.
•Clamping yoke connection type.
•Suitable for PCB mounting with THT solder connection.
•90° conductor outlet direction.
•Insulation material made of PA.
•UL 94 flammability rating of V-0.
•Protection degree of IP20.
•Allows a wide range of wire connection sizes.

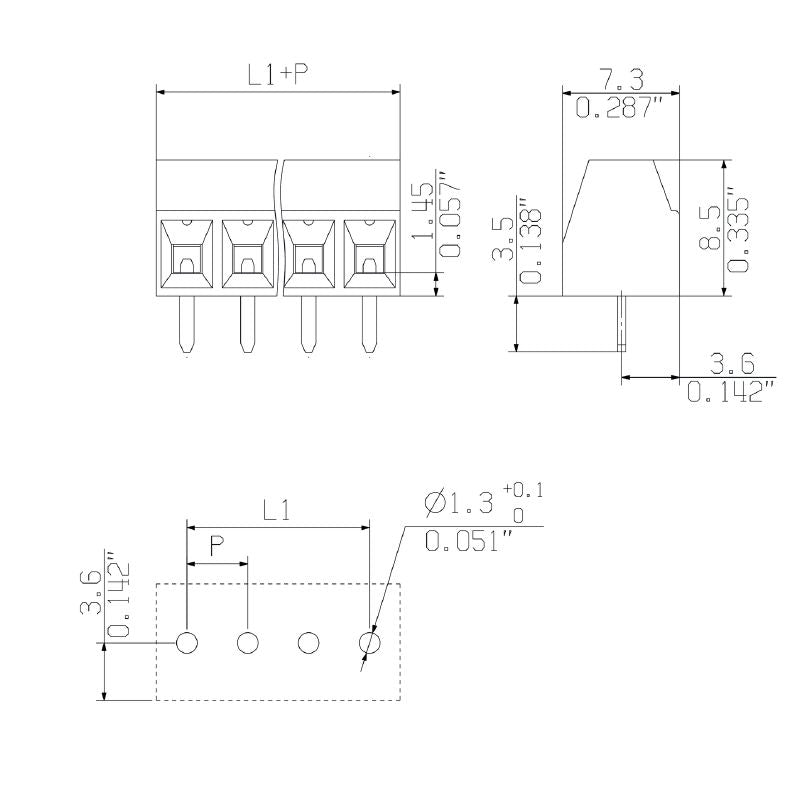

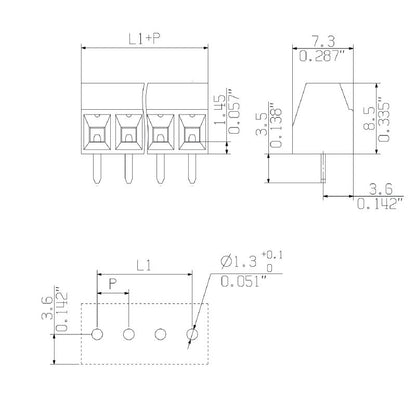

Specifications:
| Rated Voltage (IEC) | 320 V |
| Rated Current (IEC) | 10 A |
| Clamping Range (mm²) | 0.2 - 1.5 |
| Wire Connection Cross Section AWG | 26 - 16 |
| Pitch | 3.81 mm |
| Number of Poles | 7 |
| Tightening Torque Min | 0.2 Nm |
| Tightening Torque Max | 0.23 Nm |
| Solder Pin Length | 3.5 mm |
| Storage Temperature Min | -40 °C |
| Storage Temperature Max | 70 °C |
| Operating Temperature Max | 105 °C |
