Description:

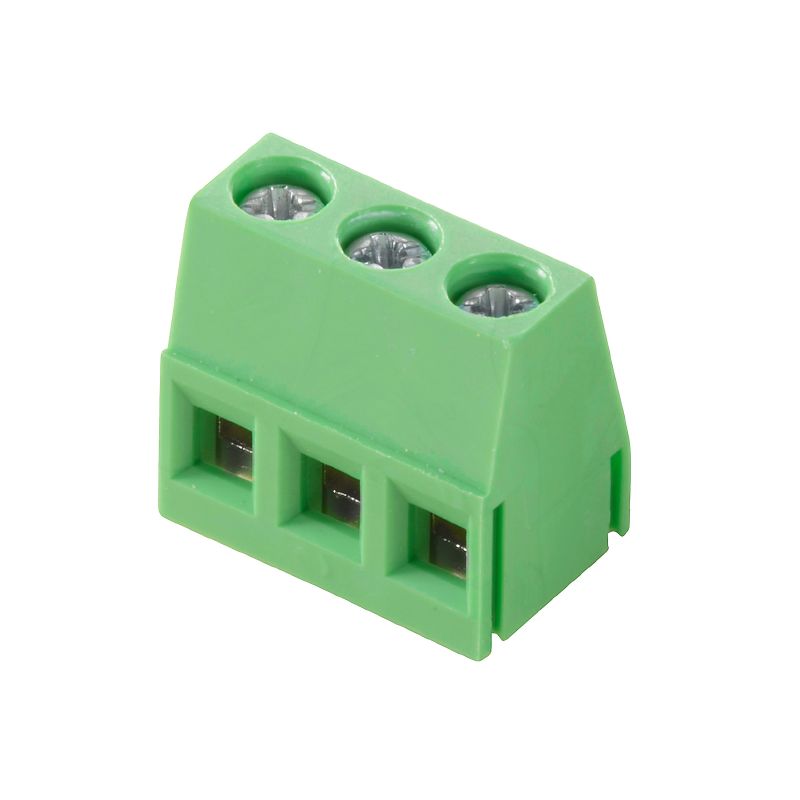

Introducing the TMS 508/15/90 30SN GN BX connection system, expertly engineered to meet electrical standards This product operates efficiently at a voltage of 320 V with a current capacity of 15 A, making it a reliable choice for various applications It supports wire sizes from 02 to 25 mm² as outlined by IEC standards, and accommodates AWG sizes from 30 to 12 according to UL regulations Each unit comes securely packaged in boxes, ensuring that your electrical connections remain dependable and effective.
Features and Benefits:
•Clamping yoke connection method.
•THT solder connection for PCB mounting.
•90° conductor outlet direction.
•15 poles available in a single row.
•IP20 protection degree.
•Pale green insulating material.
•Flammability rating of V-0 according to UL 94.
Specifications:
| Net weight | 15.45 g |
| Pitch in mm | 5.08 mm |
| Number of poles | 15 |
| Solder pin length | 3 mm |
| Tightening torque, min. | 0.5 Nm |
| Tightening torque, max. | 0.55 Nm |
| Stripping length | 6 mm |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 70 °C |
| Operating temperature, max. | 105 °C |
| Rated current | 15 A |
| Rated voltage | 300 V |
| Wire cross-section, AWG, min. | AWG 30 |
| Wire cross-section, AWG, max. | AWG 12 |
