2651870000 - 5mm Pitch Clamping Terminal, 15A, 90° Outlet, RoHS Compliant (Pack of 36)

Description:

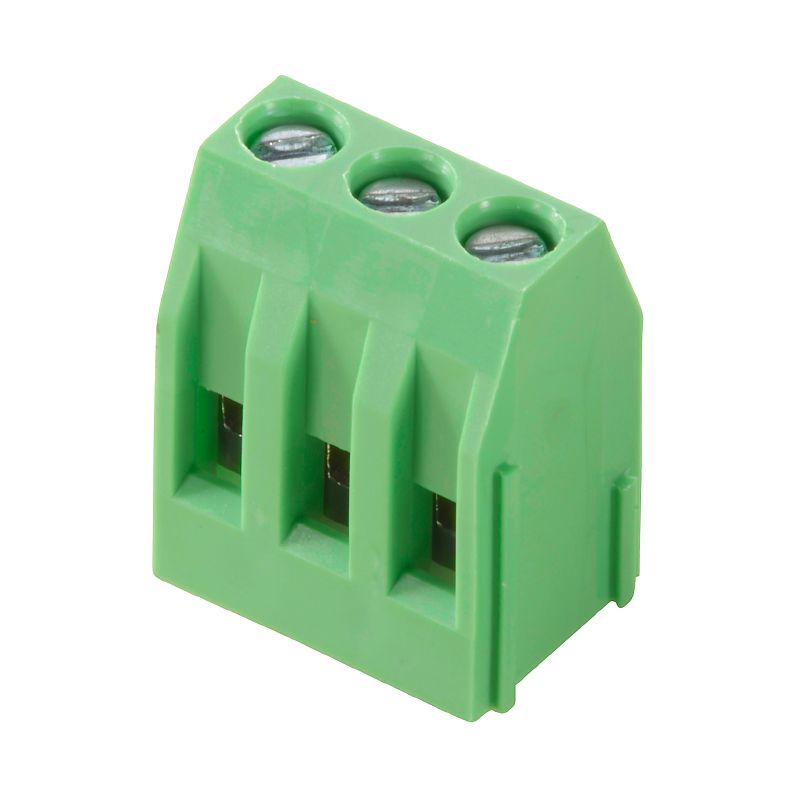

Introducing the TPS 500/18/90 35SN GN BX clamping connection terminal, expertly crafted for seamless PCB installation This terminal supports a voltage of up to 320 V and a current of 15 A, accommodating a versatile range of wire sizes from 02 to 4 mm² (AWG 30 to AWG 12) Designed with compliance to RoHS standards and boasting UL certification, it ensures safety and reliability in your applications The terminal features a 90° outlet direction and a compact 5 mm pitch, presented in a subtle pale green hue.

Optimized for the OMNIMATE basic product line, it can be connected with either flexible or solid conductors Its compact form includes a 35 mm solder pin length and requires a stripping length of 6 mm for effective installation Additionally, this terminal is rated for various surge voltage classes, making it versatile for different applications.

Features and Benefits:

•Compliant with RoHS and UL standards.

•THT solder connection for reliable mounting.

•Rated for a wide range of temperatures from -40 °C to 105 °C.

•Compact design suitable for high-density applications.

•90° conductor outlet improves space efficiency.

•Clamping yoke connection ensures secure wire attachment.

•Compatible exclusively with OMNIMATE basic products.

•Used in PCB designs where space is a premium.

Specifications:
