2651120000 - IP20 RoHS Compliant 19-Pole THT Mounting Connector (Pack of 40)

Description:

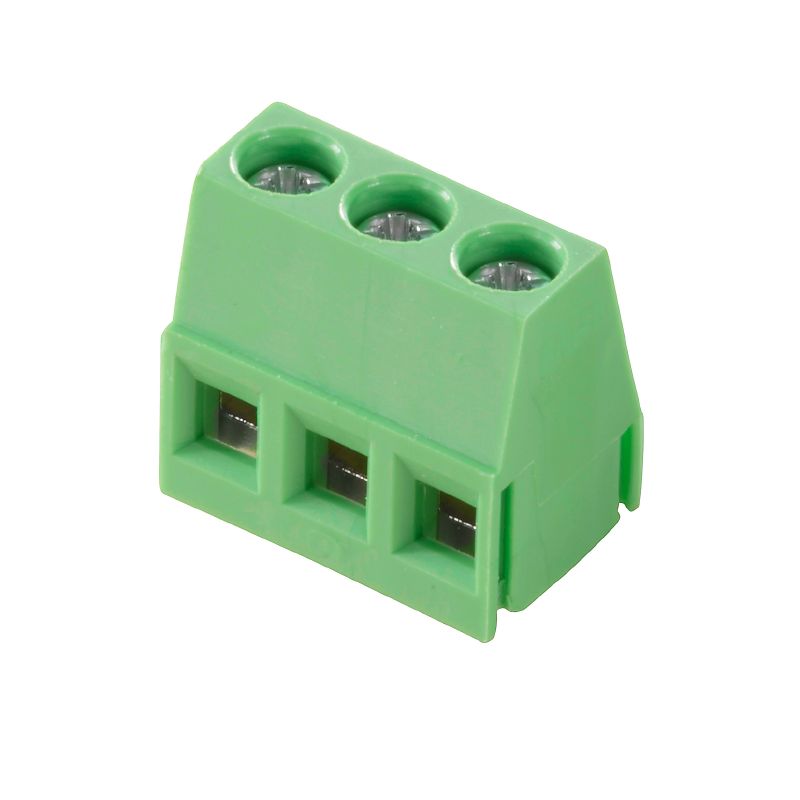

Introducing the TMS 500/19/90 30SN GN BX, a precision-engineered component from the OMNIMATE basic – Series TMS With a robust compliance to RoHS standards and UL certification, this product demonstrates a commitment to safety and quality Weighing in at 1957 grams, it’s designed for surface-mount installations and features a dependable clamping yoke connection method This model boasts a total of 19 poles arranged in a single row, each with a 90° outlet direction.

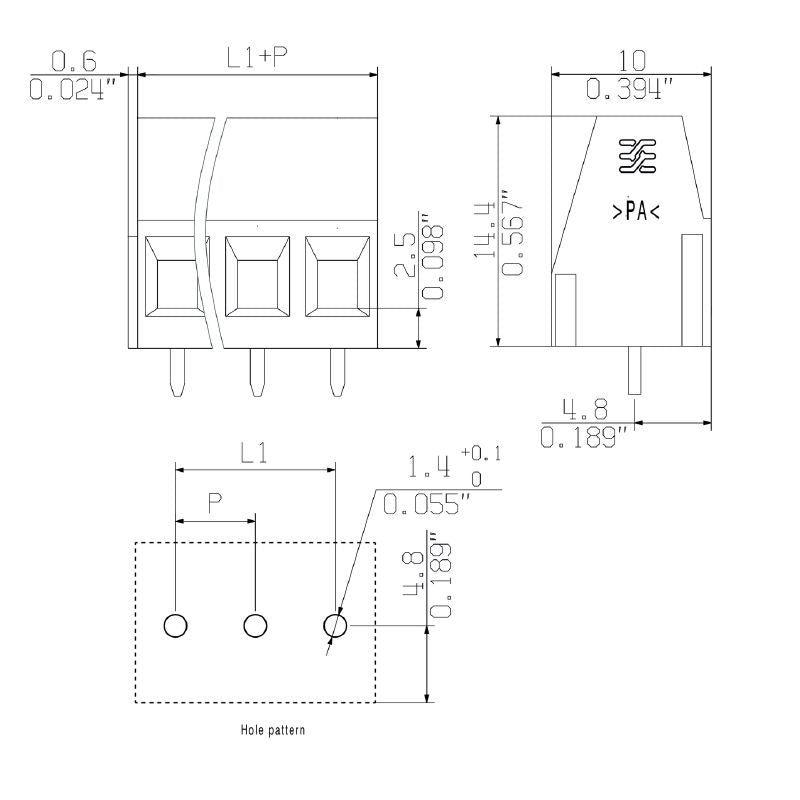

The solder pins measure 3 mm in length and come with dimensions of 07 x 09 mm, suitable for a solder eyelet hole diameter of 14 mm Each pole is equipped with its own solder pin, featuring a screwdriver blade requirement of 06 x 35 mm The tightening torque is optimally set between 05 Nm and 055 Nm, utilizing a standard M 3 clamping screw With an IP20 protection degree and crafted from durable PA insulating material in an eye-catching pale green shade (RAL 6021), this component also meets flammability rating V-0, ensuring safety under various conditions.

The contact material used is a copper alloy with a tinned finish, further enhancing its reliability and performance.

Features and Benefits:

•RoHS compliant with exemption.

•Compatible only with OMNIMATE basic products.

•Package comes in a box.

Specifications:
