Description:

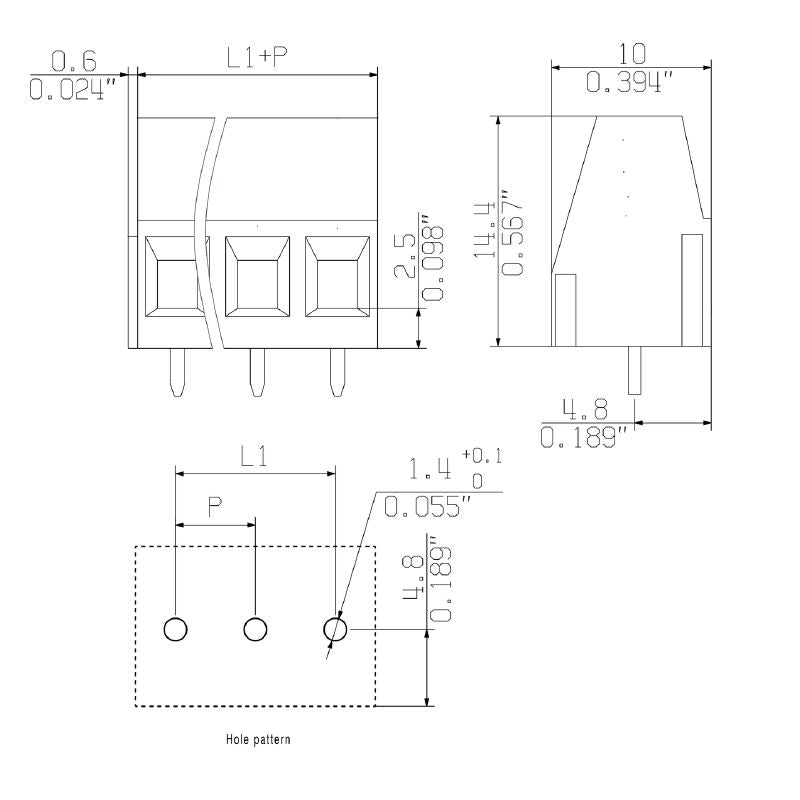

Discover the OMNIMATE basic series connector, engineered for efficient wire connections using a clamping yoke method This connector is mounted onto PCBs via a THT solder connection, featuring a 90° conductor outlet direction and a 508 mm pitch With 11 poles and a single solder pin per pole, this connector aligns seamlessly with your setup It meets RoHS regulations and is UL certified, reflecting its quality and safety standards.

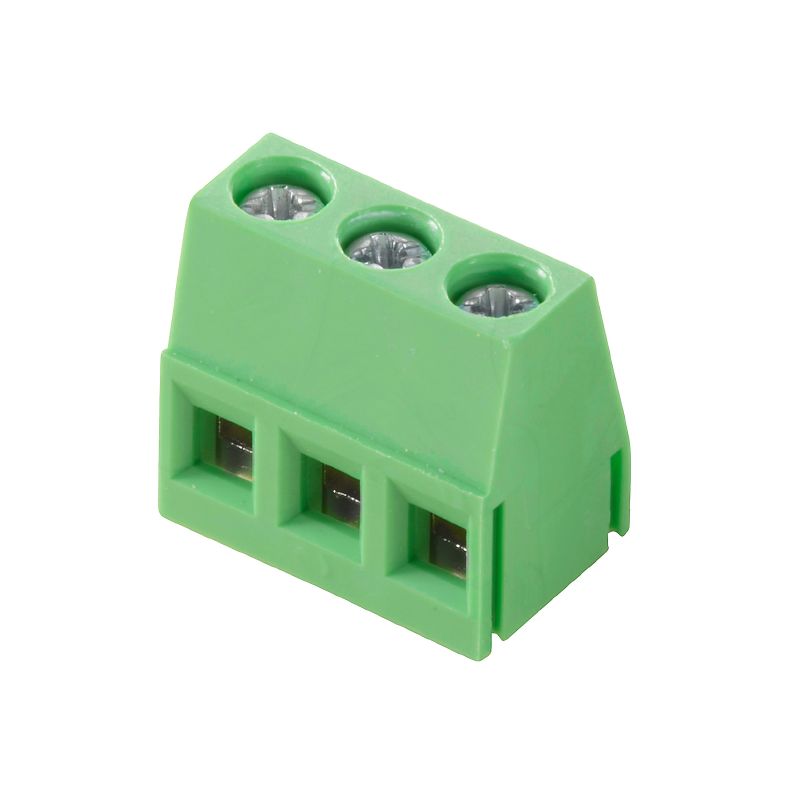

Sporting a subtle pale green hue, the component is crafted from PA insulating material with a flammability rating of V-0 It's specifically designed to accommodate wire cross-sections ranging from 02 mm² to 25 mm², making it an ideal choice for various applications.
Features and Benefits:
•Compliant with RoHS exemptions.
•Approved by UL.
•Insulating material features a high flammability rating.
•Solder pins are tinned for optimal conductivity.
•Compatible only with OMNIMATE basic products.
Specifications:
| Order No. | 2651420000 |
| IEC Rated Voltage | 320 V |

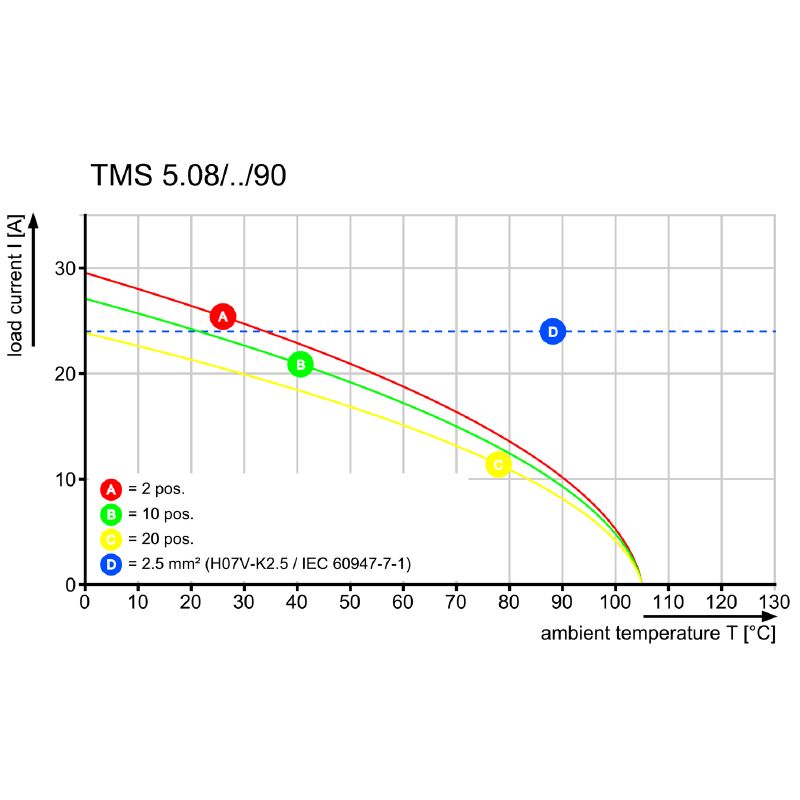

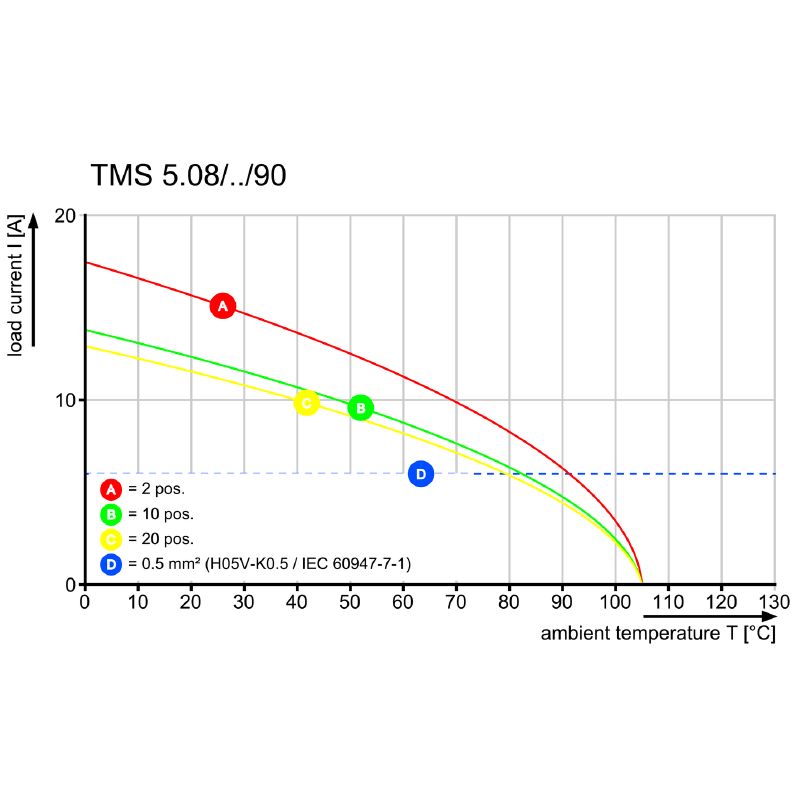

| IEC Rated Current | 15 A |
| UL Rated Voltage | 300 V |
| UL Rated Current | 15 A |
| Number of poles | 11 |
| Pitch in mm | 5.08 mm |
| Tightening torque, min | 0.5 Nm |
| Tightening torque, max | 0.55 Nm |
| Protection degree | IP20 |
| Operating temperature, max | 105 °C |
| Clamping range, min | 0.2 mm² |
| Clamping range, max | 2.5 mm² |
| Net weight | 11.33 g |
| Storage temperature, min | -40 °C |
| Storage temperature, max | 70 °C |
