Description:

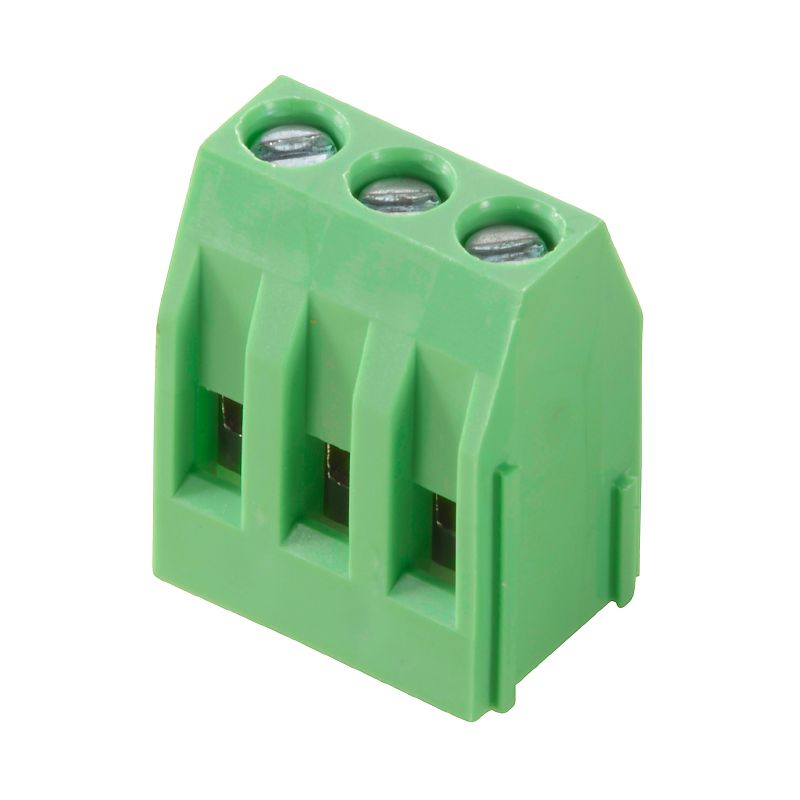

Introducing the TPS 500/09/90 35SN GN BX, an advanced connectivity solution tailored for through-hole technology (THT) solder applications This terminal block is specifically designed for mounting on printed circuit boards (PCBs) and features a 90° conductor outlet direction With a compact pitch of 5 mm, it accommodates up to 9 poles, each equipped with a 35 mm long solder pin The robust design allows for a maximum tightening torque of 0.
55 Nm on screws Additionally, this product adheres to RoHS and various environmental standards, ensuring compliance and sustainability.
Features and Benefits:
•Color is pale green.
•Insulating material is PA.
•IP20 protection degree.

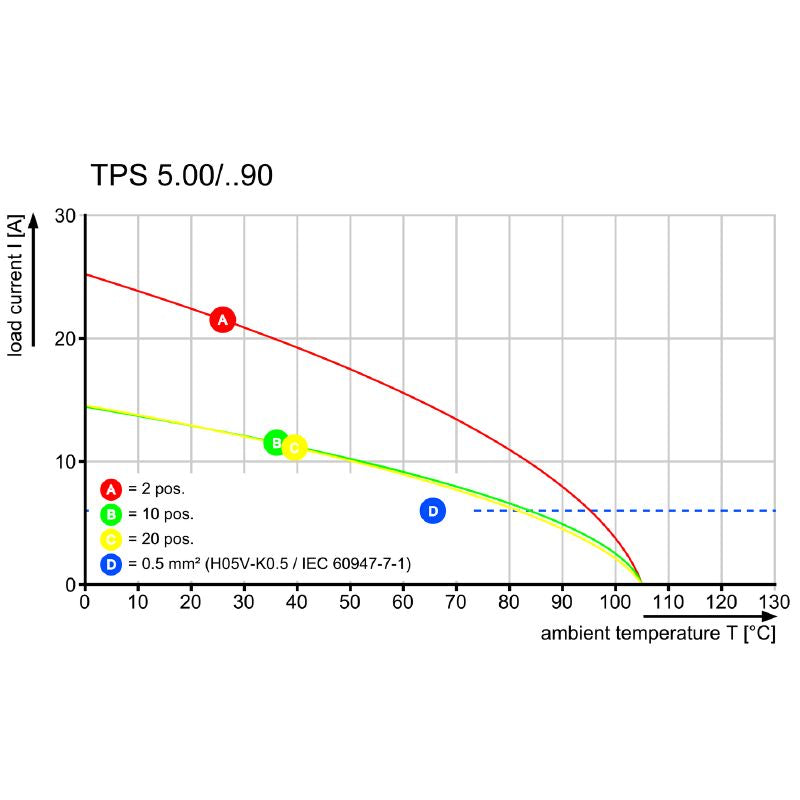

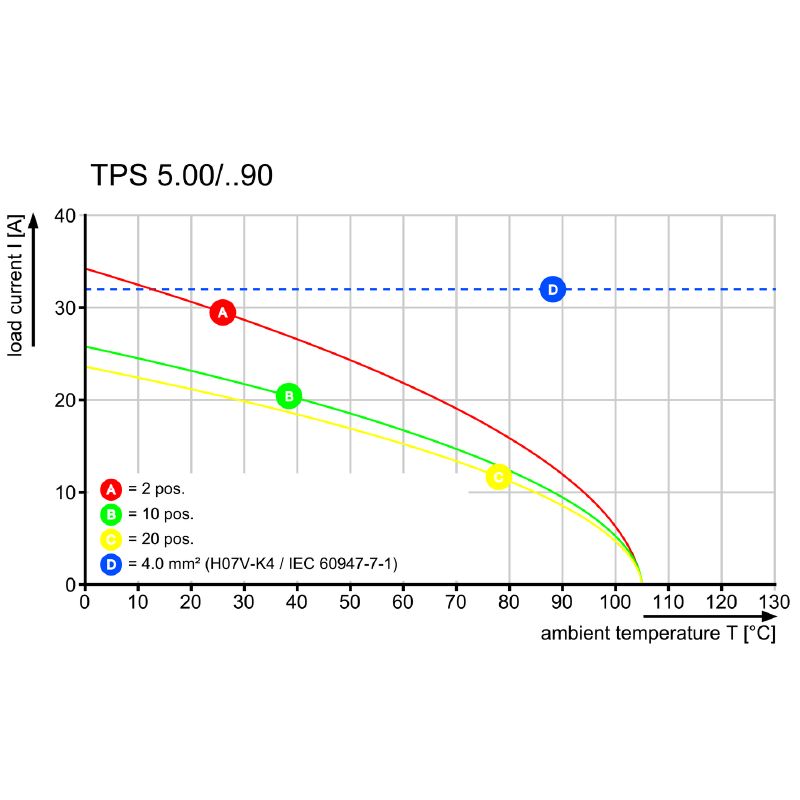

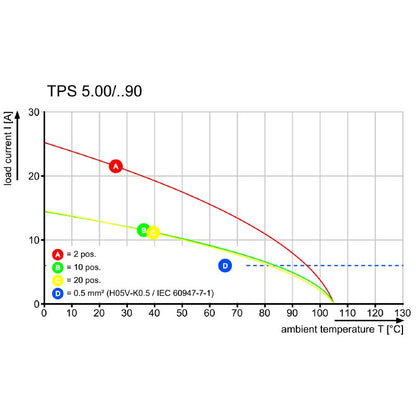

•Rated for currents up to 15 A at 320 V.

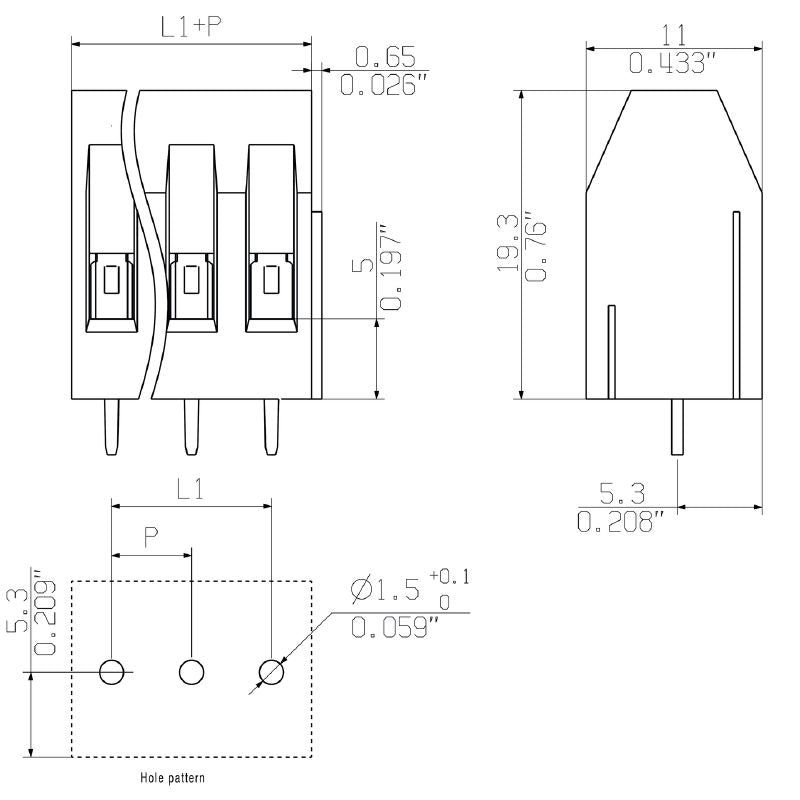

Specifications:
| Wire connection method | Clamping yoke connection |
| Mounting onto the PCB | THT solder connection |
| Pitch in mm (P) | 5 mm |
| Number of poles | 9 |
| Solder pin length | 3.5 mm |
| Solder pin dimensions | 0.7 x 0.9 mm |
| Screwdriver blade | 0.6 x 3.5 |
| Clamping screw | M 3 |
| Stripping length | 6 mm |
| Material data | Insulating material PA |
| UL 94 flammability rating | V-0 |
| Temperature range for storage | -40 °C to 70 °C |
| Operating temperature, max. | 105 °C |
| Conductors suitable for connection | Clamping range, min. 0.2 mm²; max. 4 mm² |
| Rated voltage (Use group B / UL 1059) | 300 V |
| Rated current (Use group B / UL 1059) | 15 A |
| Rated voltage | 320 V |
