2651580000 - 5.08mm 8-Pole Terminal Block with 135° Outlet (Pack of 81)

Description:

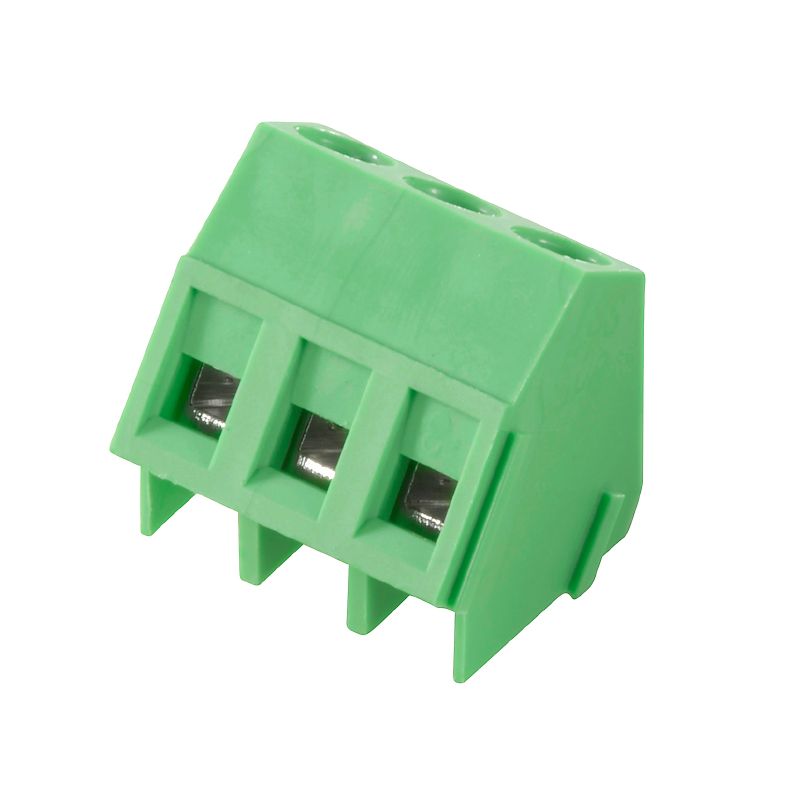

Introducing the OMNIMATE basic series terminal block, engineered to meet high compliance standards including RoHS and UL certifications This component employs a clamping yoke connection method, making it ideal for through-hole (THT) soldering onto PCBs With an angled conductor outlet at 135° and a pitch of 508 mm (02 inches), it encompasses eight poles The solder pin length measures 33 mm, and its contact surfaces undergo a reliable tinning process.

Additionally, it is designed with specific tightening torque specifications and constructed from materials that adhere to crucial insulation and environmental guidelines.

Features and Benefits:

•Clamping yoke connection method.

•Directs the conductor outlet at 135°.

•Insulating material made from PA.

•UL 94 flammability rating of V-0.

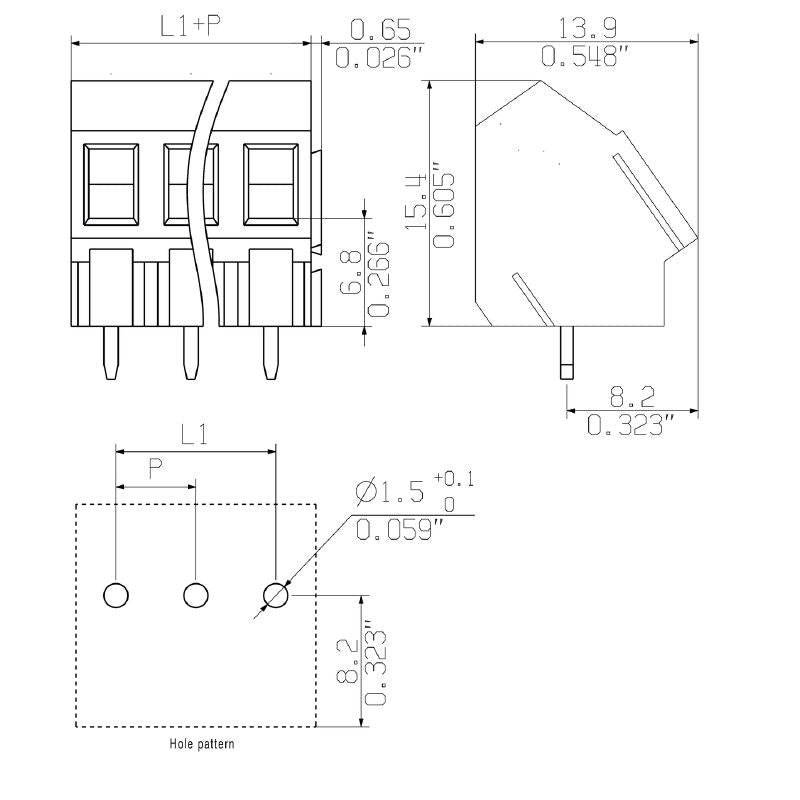

•Solder pin dimensions are 0.8 x 0.9mm.

Specifications:
