2651330000 - RoHS Certified 2-Pole PCB Terminal Block Connector, 5.08mm Pitch (Pack of 200)
2651330000 - RoHS Certified 2-Pole PCB Terminal Block Connector, 5.08mm Pitch (Pack of 200)
SKU: SKU: 2651330000 Download PDF
- 2651330000 - RoHS Certified 2-Pole PCB Terminal Block Connector, 5.08mm Pitch (Pack of 200)
- 2651330000 - RoHS Certified 2-Pole PCB Terminal Block Connector, 5.08mm Pitch (Pack of 200)
Couldn't load pickup availability
Description:

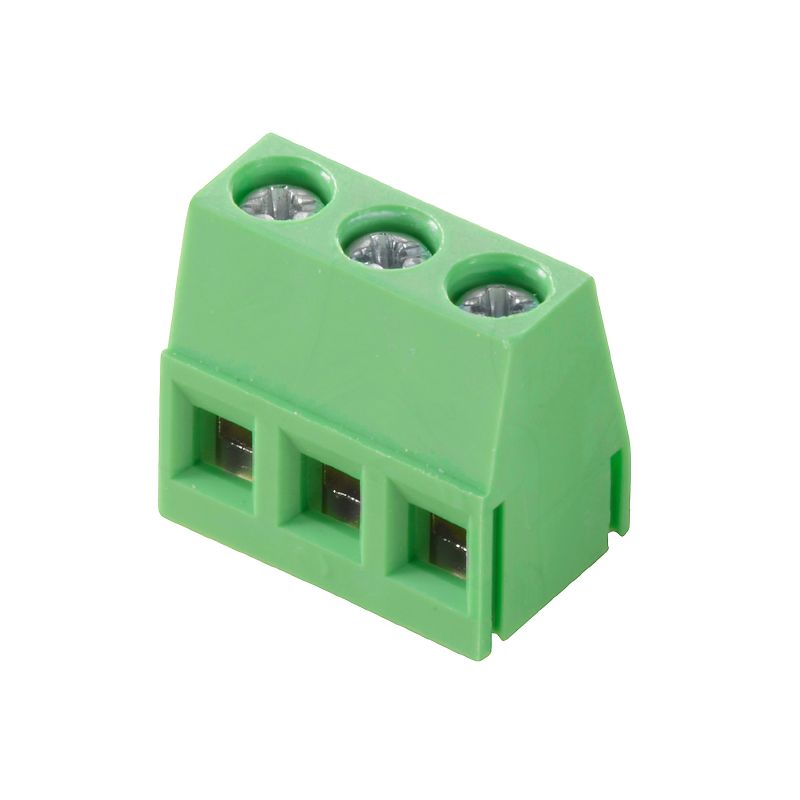

Introducing the TMS 508/02/90 30SN GN BX terminal block connector, an excellent choice for various applications Compliance with RoHS regulations and UL certification (record E60693) ensures you’re using a reliable product This connector boasts a voltage rating of 320 V at 15 A, accommodating wire sizes between 02 and 25 mm²
Designed for easy PCB mounting, it utilizes THT solder connections and features a clamping yoke connection method.
With an IP20 protection rating, this connector is built to withstand certain environmental conditions Each unit has two poles, spaced at a convenient pitch of 508 mm, and is sold in boxes containing 200 connectors, making it ideal for your project needs.
Features and Benefits:
•RoHS compliant.
•UL approved for quality and safety standards.
•Compact design with a 90° conductor outlet direction.
•Compatible with clamping range of 0.2 to 2.5 mm².
•IP20 protection rating.
Specifications:

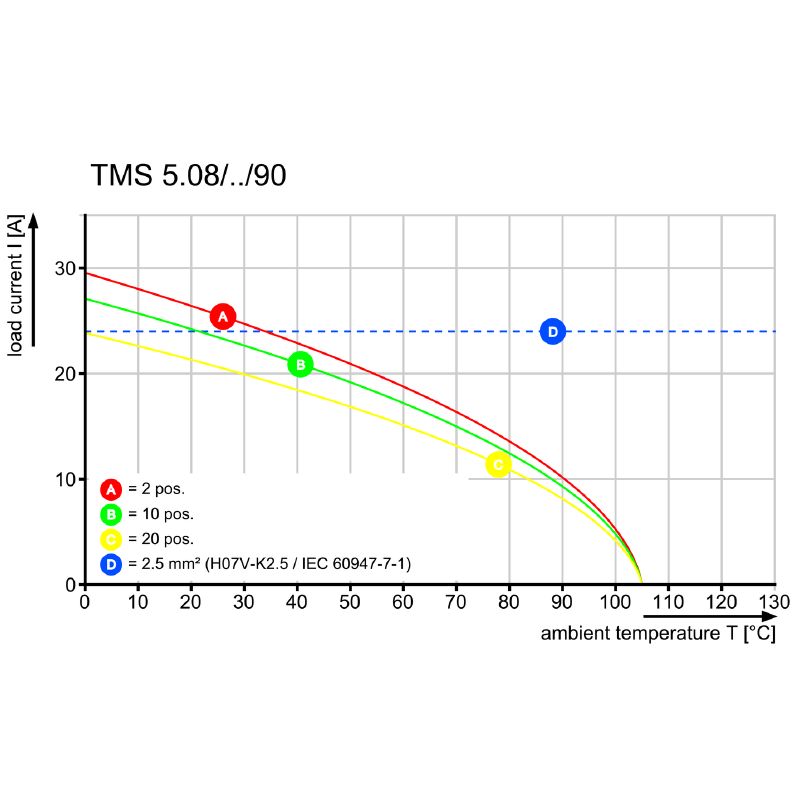

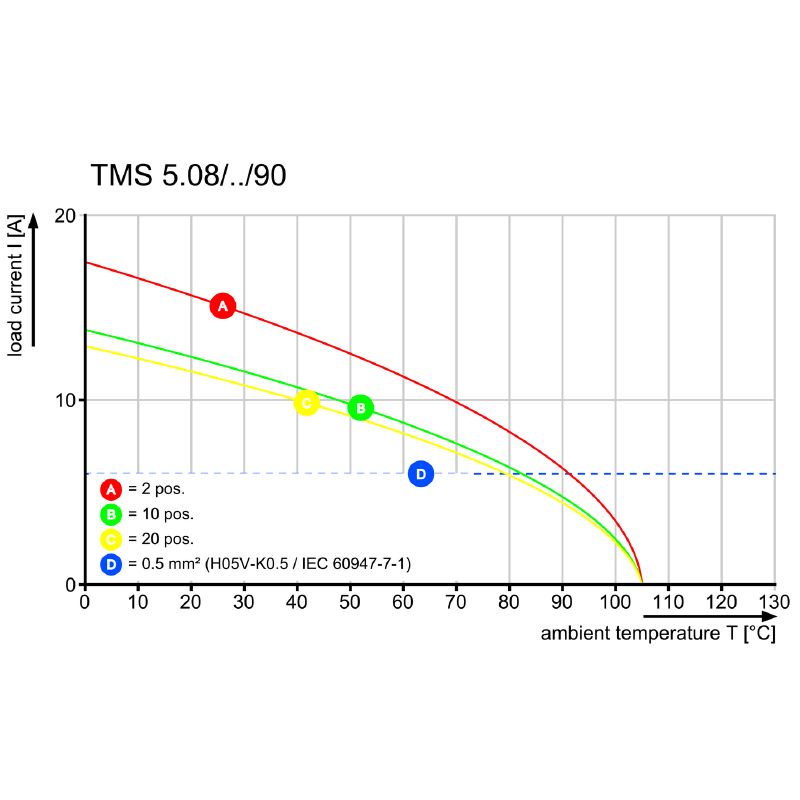

| Rated current, min. number of poles (Tu=20°C) | 15 A |
| Rated voltage for surge voltage class / pollution degree II/2 | 320 V |
| Rated voltage for surge voltage class / pollution degree III/2 | 250 V |
| Rated voltage for surge voltage class / pollution degree III/3 | 160 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 2.5 kV |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 2.5 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 2.5 kV |
| Wire cross-section, AWG, min. | AWG 30 |
| Wire cross-section, AWG, max. | AWG 12 |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 70 °C |
| Insulating material | PA |
| Color | Pale green |

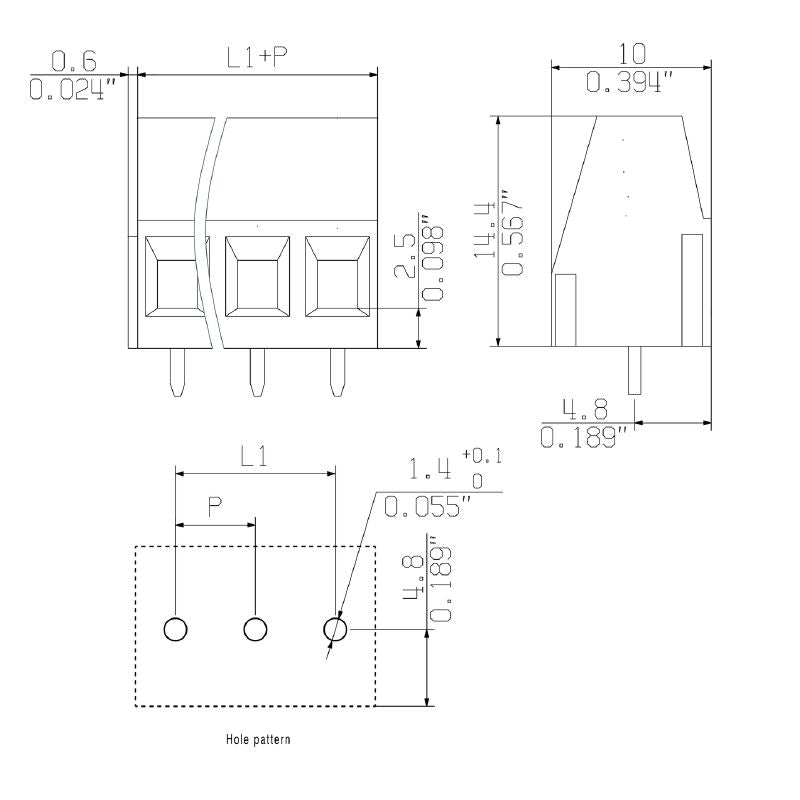

| Solder pin length (l) | 3 mm |
| Clamping screw | M 3 |
| Stripping length | 6 mm |
| Solder eyelet hole diameter (D) | 1.4 mm |
| Tightening torque, min. | 0.5 Nm |
| Tightening torque, max. | 0.55 Nm |
| Number of rows | 1 |
| Number of poles | 2 |
