Description:

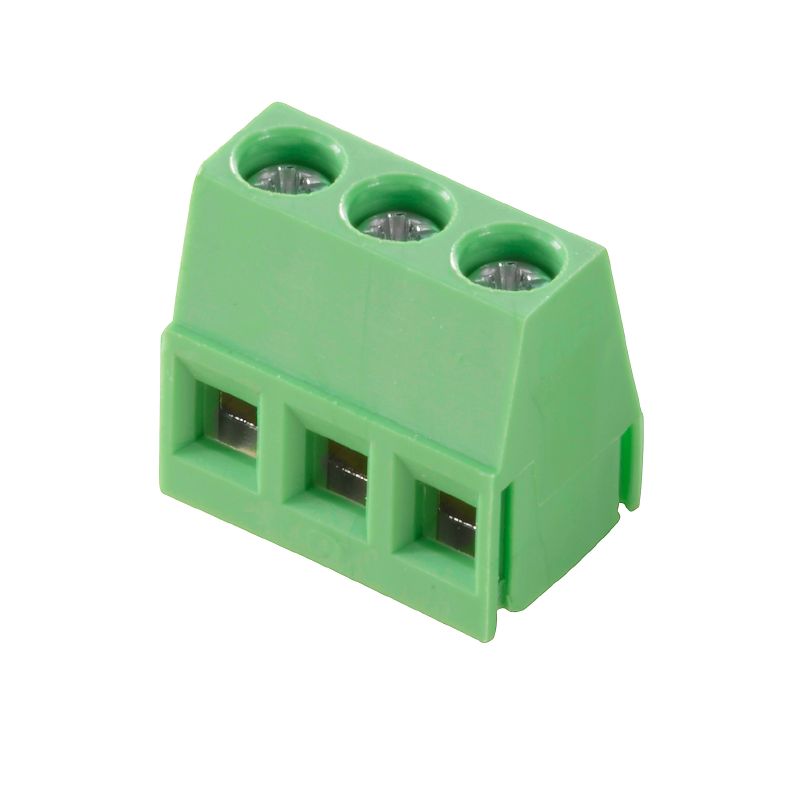

Introducing the TMS 500/20/90 30SN GN BX, a reliable component tailored for electrical applications, adhering to both IEC and UL regulations This model facilitates secure wire connections via a clamping yoke and requires a THT solder connection for seamless PCB mounting It offers a 90-degree conductor outlet direction with a 5mm pitch Moreover, it meets RoHS standards and benefits from a specific exemption, making it an efficient choice for your electrical projects.
Features and Benefits:
•Complies with RoHS.
•Packaged in a box.
•Utilizes clamping yoke connection for wire.
•Suitable for various wire sizes from 0.2 mm² to 2.5 mm².
Specifications:
| IEC Voltage | 320 V |
| IEC Current | 15 A |
| Wire connection method | Clamping yoke connection |
| Mounting onto PCB | THT solder connection |
| Conductor outlet direction | 90° |
| Number of poles | 20 |
| Protection degree | IP20 |
| Insulating material | PA |
| UL Voltage Rating | 300 V |
| Operating temperature max | 105 °C |
| Rated current minimum | 15 A |
| Rated voltage | 300 V |
| Net weight | 20.6 g |
