2651270000 - TSS 3.3SN GN BX Clamping Yoke Connection for PCB, IP20 (Pack of 42)
2651270000 - TSS 3.3SN GN BX Clamping Yoke Connection for PCB, IP20 (Pack of 42)
SKU: SKU: 2651270000 Download PDF
- 2651270000 - TSS 3.3SN GN BX Clamping Yoke Connection for PCB, IP20 (Pack of 42)
- 2651270000 - TSS 3.3SN GN BX Clamping Yoke Connection for PCB, IP20 (Pack of 42)
Couldn't load pickup availability
Description:

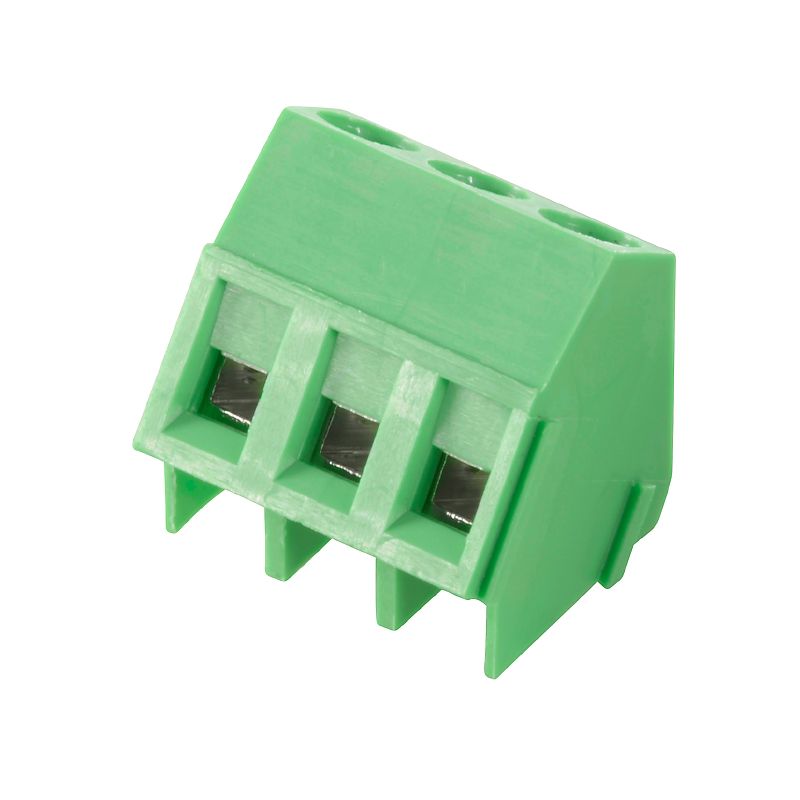

Introducing the TSS 500/15/135 33SN GN BX, a specialized component crafted for electrical applications This item features clamping yoke connections for secure wire connections and accommodates a wide range of conductor sizes, specifically from 02 mm² to 25 mm² Meeting rigorous safety standards, this product is suitable for PCB mounting using THT solder methods Built to last, it operates efficiently within a temperature range of -40 °C to 105 °C.
Furthermore, it complies with environmental regulations and has successfully passed necessary approvals With a sturdy design, this component boasts an IP20 protection rating, ensuring reliability in various settings, all while being conveniently packaged in a box.
Features and Benefits:
•Compatible with OMNIMATE basic products.
•Designed for conductor outlet direction of 135°.
•Solder pin length of 3.3 mm.
•Excellent insulation with PA material.
•Working temperature: minimum of -40 °C and maximum of 105 °C.
Specifications:
| IEC | 630 V / 20 A / 0.2 - 2.5 mm² |
| UL | 300 V / 20 A / AWG 30 - AWG 12 |
| Net weight | 36 g |
| Number of poles | 15 |
| Pitch in mm (P) | 5 mm |
| Tightening torque, min. | 0.5 Nm |
| Tightening torque, max. | 0.55 Nm |
| Insulating material | PA |
| Colour | Pale green |
| Insulating material group | I |
| UL 94 flammability rating | V-0 |
| Rated current, min. number of poles (Tu=20°C) | 20 A |
| Rated voltage for surge voltage class / pollution degree II/2 | 630 V |
| Rated voltage for surge voltage class / pollution degree III/2 | 400 V |
| Rated voltage for surge voltage class / pollution degree III/3 | 250 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 4 kV |
| Rated voltage (Use group B / CSA) | 300 V |
